Refrigerant Compressor, Remove/Install - AR83.55-P-5310GW
Model 463 with engine 176
as of model year 2016 up to model year 2019
Fig 1: Refrigerant Compressor Components Location - Model 463 With Engine 176 As Of Model Year 2016 Up To Model Year 2019
| Remove/install | |||

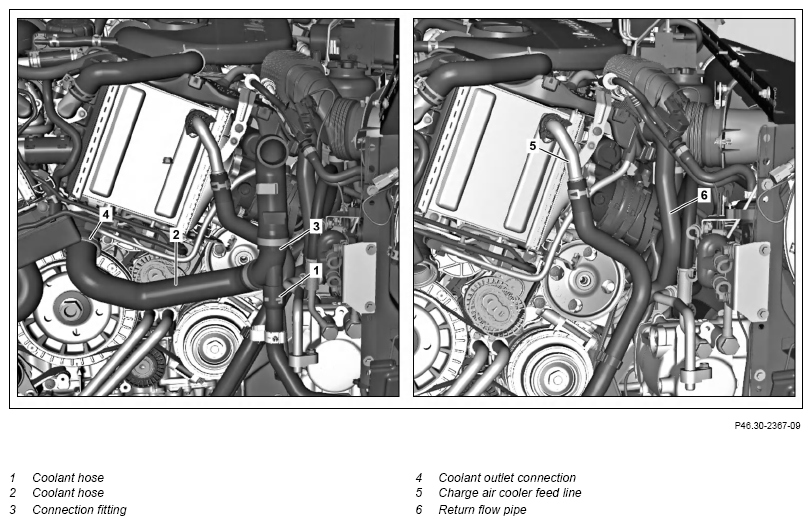

| 1 | Remove radiator | AR20.20-P-3865MNF | |
| 2 | Disconnect coolant hose (1) on connection fitting (3) and place to one side | ||
| 3 | Disconnect coolant hose (2) with connection fitting (3) at coolant outlet fitting (4) and remove | ||
| 4 | Disconnect charge air cooler feed line (5) at left from charge air cooler and place to one side | ||
| 5 | Disconnect return line (6) at top and place to one side | ||
| 6 | Seal opened hoses and connections | Fig 2 | |
| 7 | Remove poly-V-belt | AR13.21-P-0132MNF | |

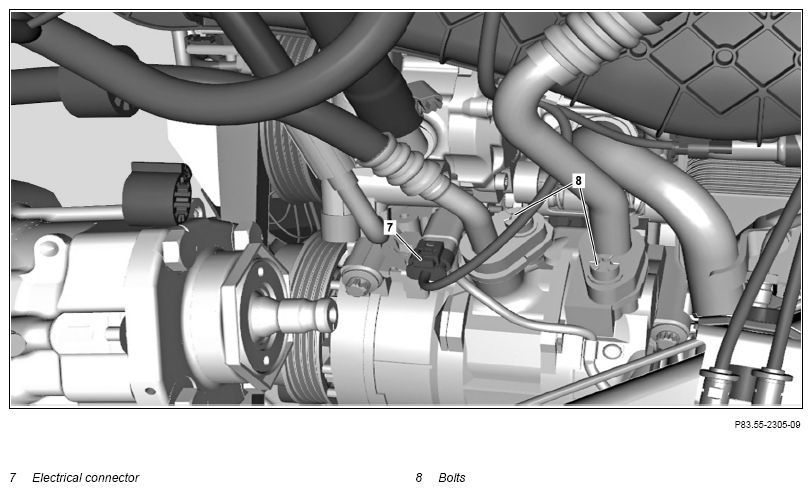

| 8 | Release and detach electrical connector (7) from refrigerant compressor | ||
| 9 | Remove screws (8) from refrigerant compressor, remove refrigerant lines and place to one side | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.55-P-1003-02A | |||
| 10 | Seal openings of refrigerant lines and refrigerant compressor using suitable stop plugs | The openings of the refrigerant lines and refrigerant compressor must be sealed. Otherwise, penetrating dirt and moisture will damage the air conditioning system. |
|
| Fig 2 | |||

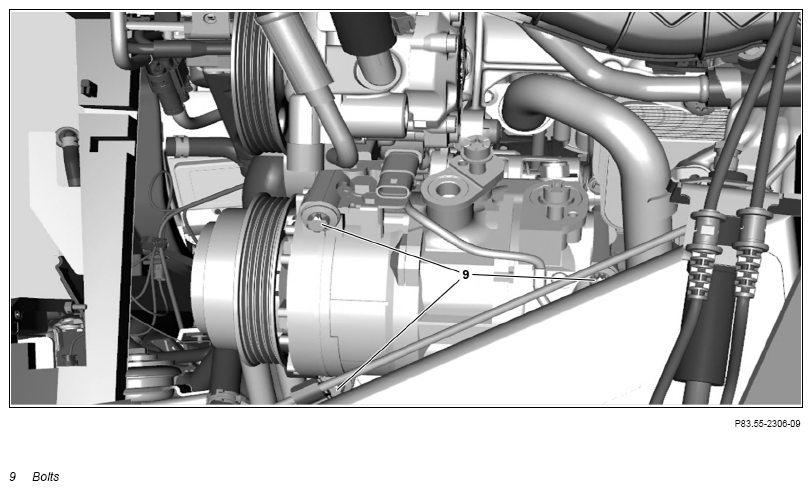

| 11 | Remove screws/bolts (9), refrigerant compressor to bracket, and remove refrigerant compressor toward front | *BA83.55-P-1005-02A | |
| 12 | Install in the reverse order |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA83.55-P-1003-02A | Bolt, refrigerant line to refrigerant compressor | Nm | 20 |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA83.55-P-1005-02A | Bolt, refrigerant compressor to bracket for belt tensioner/oil pan/crankcase | Nm | 20 |
