Remove And Install D-Pillar - Ar63.20-P-2000XG

Model 463

as of model year 2019

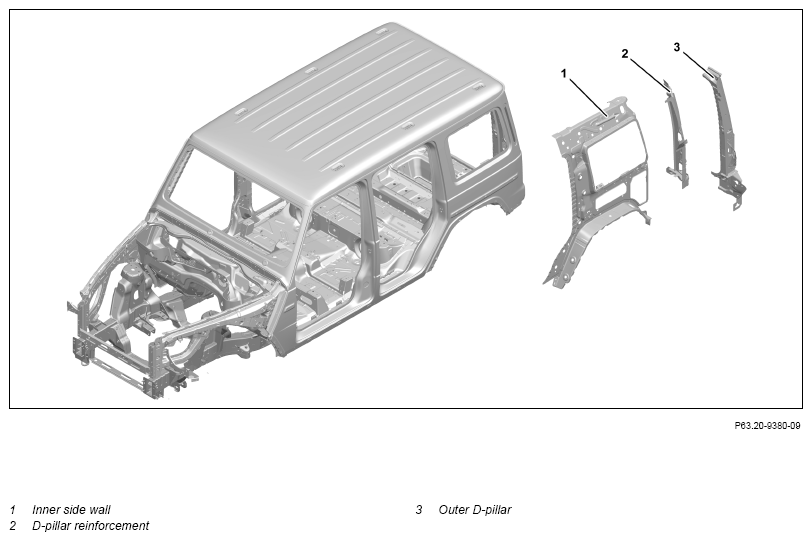

Fig 1: Inner D-Pillar, Component And Locations (Model 463)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	General information on body repair		AH60.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.
3	Remove rear fender.		AR63.50-P-1401XG
4	Set up straightening bench with straightening bench support members and straightening set.
	000 588 01 23 00 Body straightening system		WS60.00-P-0023K
5	Place vehicle on straightening bench and fasten.
6	Remove inner side wall (1), D-pillar reinforcement (2) and outer D-pillar (3).		AR63.20-P-2000-01XG
		1 K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-N-0005-01A
	General information on riveting		AH60.00-P-0003-01N
7	Prepare inner side wall (1), D-pillar reinforcement (2) and outer D-pillar (3).		AR63.20-P-2000-02XG
		1 K-zinc dust paint	*BR00.45-Z-1056-07A
8	Install inner side wall (1), D-pillar reinforcement (2) and outer D-pillar (3).		AR63.20-P-2000-03XG
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Blind rivet 6.5 X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1012-13A
		Side portal frame	-
9	Clean weld joints and sheet metal flange.
10	Install rear fender.		AR63.50-P-1401XG
11	Remove spark protection blankets.
12	Reinstall detachable parts in area of repair point.
