Separate D-Pillar - Ar63.20-P-2000-01XG

Model 463

as of model year 2019

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service information as well as the safety information in the service information must be observed.

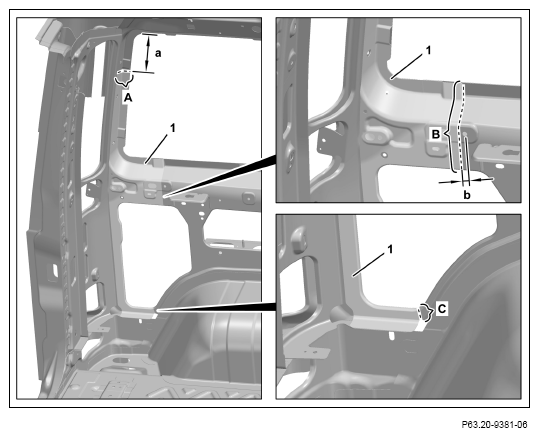

1. Mark separating points on inner side wall (1) and cut (areas A, B, C).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   a = approx. 140 mm b = approx. 10 mm

   Mark separating point in the center of the radius (area C).

   Courtesy of MERCEDES-BENZ USA

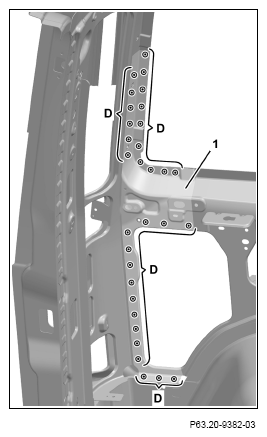

2. Expose spot welds on inner side wall (1) and cut off (areas D).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

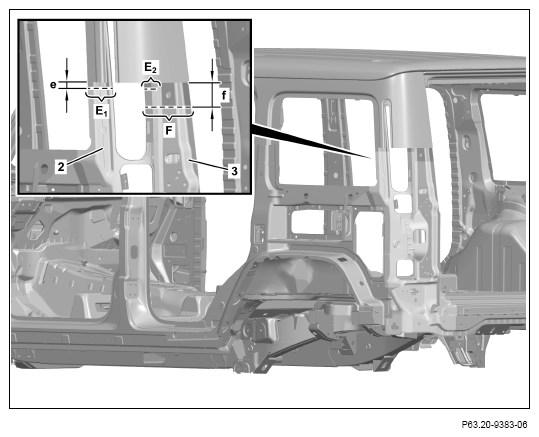

3. Mark separating points on D-pillar reinforcement (2) and outer D-pillar (3) and cut (areas E1, E2, F).

   Do not cut too deeply (area E2).

   Otherwise, the component part behind it will be damaged and the strength impaired.

   Dimensions:

   e = approx. 20 mm f = approx. 70 mm

   Completely cut through D-pillar reinforcement (2) and outer D-pillar (3) (areas E1, F).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

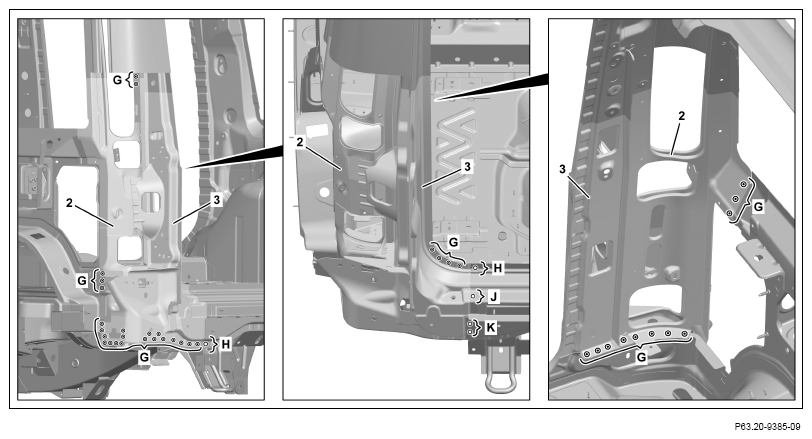

4. Expose spot welds on D-pillar reinforcement (2) and on outer D-pillar (3) and cut off (areas G).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

5. Expose spot welds on D-pillar reinforcement (2) and outer D-pillar (3) and drill out with a diameter of 6 mm (areas H, J).

   Drill out spot welds through two panel thicknesses (areas H).

   Drill out spot weld through one panel thickness (area J).

6. Expose spot welds on outer D-pillar (3) and drill through with a diameter of 6.5 mm (area K).

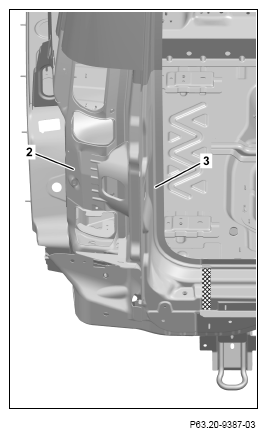

7. Heat outer D-pillar (3) in cross-hatched area.

   Cross-hatched area is bonded.

8. Remove D-pillar reinforcement (2) and outer D-pillar (3).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

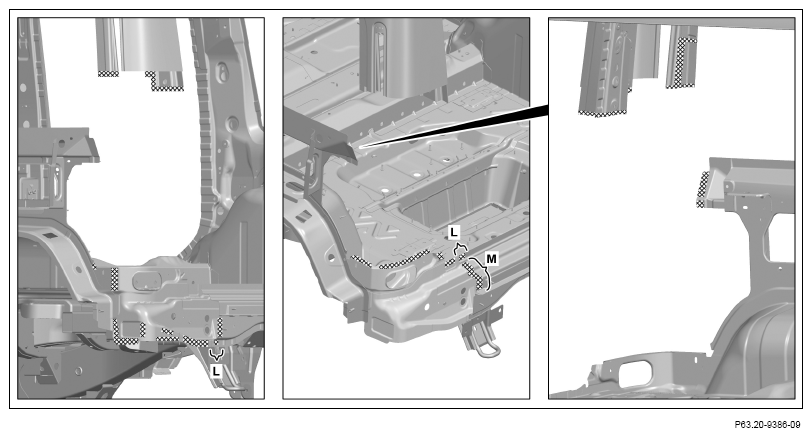

9. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove grinding dust and drill chips.
11. Coat insides of spot weld flanges with zinc dust paint.

    Areas of the plug welds and bonding surface may not be coated with zinc dust paint (areas L, M). Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
