Replace Rear Fender Complete - Ar63.50-P-1401XG

Model 463

as of model year 2019

Shown on left side of vehicle

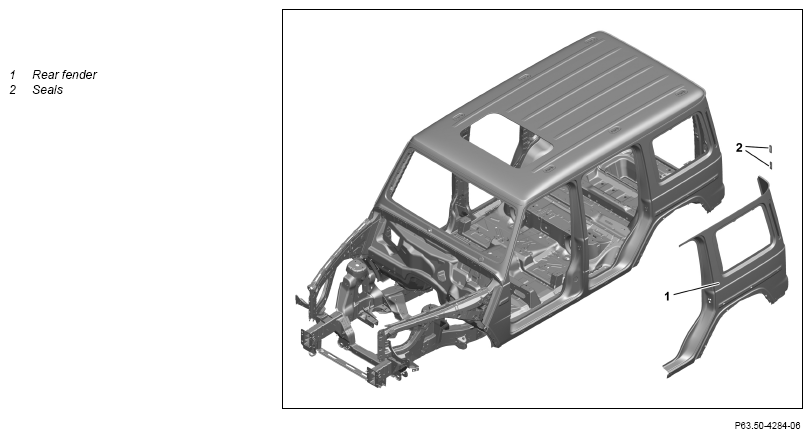

Fig 1: Rear Fender Component Location (Model 463)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	General information on body repair		AH60.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Notes on foam-protected insulation in body		AH60.00-P-0041-01A
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.	When replacing the right rear fender (1), the standard fuel filler cap must be installed and the filler neck covered with a welding protection blanket.
3	Remove rear fender (1).		AR63.50-P-1401-01XG
		1 K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-N-0005-01A
	General information on riveting		AH60.00-P-0003-01 N
4	Prepare rear fender (1).		AR63.50-P-1401-02XG
		1 K-zinc dust paint	*BR00.45-Z-1056-07A
5	Install rear fender (1).		AR63.50-P-1401-03XG AR60.00-P-0900-01XG
		Bumper to side wall at rear	*BE60.00-P-1015-01XG
		Taillamp to side wall	*BE60.00-P-1016-01XG
		Rear door to rear side wall	*BE72.12-P-1005-01A
		Gap dimension	*BE72.20-P-1003-01A
		White sealing compound, 310 ml, DBL 6069.20	*BR00.45-Z-1003-01A
		1 K-zinc dust paint	*BR00.45-Z-1056-07A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Blind rivet with countersunk head 6.4X14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1043-13A
		Feeler gauge If a basic body filler is used as an alternative to the restoration of surfaces with body solder, apply basic body filler.	AR60.00-P-0031-01LWG
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Basic body filler	*BR00.45-Z-1057-07A
6	Clean weld joints and sheet metal flange.
7	Remove spark protection blankets.
8	Clean repair area.
9	Prime repair areas with a primer filler.
	Notes on paintwork repairs		AH98.00-P-9408-02A
		Use only primer filler approved by Daimler AG: https://xentryportaLi.daimler.com
10	Seal seam after repair.		AR97.10-P-4000XG
11	Paint repair areas and adjacent surfaces.
	Notes on paintwork repairs		AH98.00-P-9408-02A
		Use only paints approved by Daimler AG: https://xentryportaLi.daimler.com
12	Supplement cavity preservation		AR97.20-P-1500XG
13	Reinstall detachable parts in area of repair point.
