Remove/Install Front Axle Brake Caliper - AR42.10-P-0070XGA
Model 463.276/277 as of model year 2019

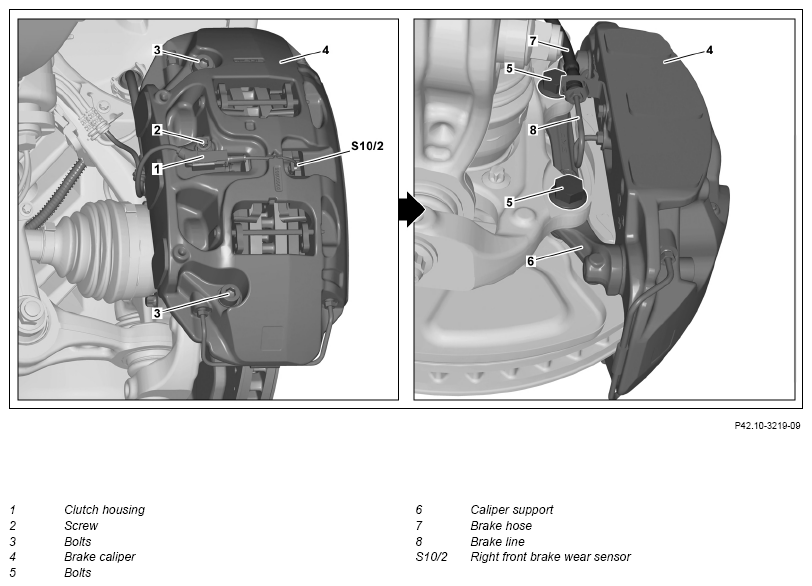

Shown on the right side of the vehicle with 6-piston fixed-caliper brake
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove | |||
| 1 | Open hood. | AR88.40-P-1000XG | |
| 2 | Clean area surrounding cap of brake fluid expansion reservoir. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Unscrew cap from brake fluid expansion reservoir and extract some brake fluid. | ||
| 4 | Remove left or right wheel and tire assembly on front axle. | AR40.10-P-1102XG | |
| 5 | Disconnect right front brake pad wear sensor (S10/2) from coupling housing (1). | Only when removing the brake caliper (4) on the right side of the vehicle. | |
| 6 | Remove screw (2) from coupling housing (1). | Only when removing the brake caliper (4) on the right side of the vehicle. | |
| 7 | Remove coupling housing (1) together with electric line and place to one side. | Only when removing the brake caliper (4) on the right side of the vehicle. | |
| 8 | Unscrew retaining screw of brake line (8) from brake hose (7) and loosen brake hose (7). | Only when replacing the brake caliper (4). Seal openings on brake hose (7) and on brake line (8) immediately. Otherwise escaping brake fluid causes damage to adjacent component parts. |
|
| Fig 3 | |||
| 9 | Unscrew the bolts (5). | Do not loosen screws (3) or remove from brake caliper support (6). Otherwise, the factory-set alignment of the brake caliper (4) to the brake caliper support (6), and therefore to the brake disc in its installed condition, is no longer correct. |
|
| 10 | Remove brake caliper (4) together with brake pads and brake caliper support (6). | ||
| 11 | Remove brake pads of front axle. | Only when replacing the brake caliper (4) or brake pads. | AR42.10-P-1610XGA |
| Check | |||
| 12 |
Check brake pads for wear and condition. | If damage is present or the wear is outside the wear limit. ↓ Replace brake pads. |
AP42.10-P-4252G |
| AR42.10-P-1610XGA | |||
| 13 | Check condition of brake disc and measure wear. | ||
| If damage is present or the wear is outside the wear limit. ↓ Replace brake disc. |
AP42.10-P-4256EW | ||
| AR42.10-P-0220XG | |||
| 14 | Check brake caliper (4) and dust boot on the brake pistons for leak tightness and damage. | If leaks or damage is present, ↓ replace brake caliper (4). |
|
| 15 | Check brake hose (7) for leakage and damage. | If leaks or damage is present, ↓ replace brake hose (7). |
AR42.10-P-0013XG |
| Install | |||
| 16 | Push back brake pistons using pusher tool until the brake caliper (4) moves freely. | Fig 2 | |
| 17 | Install brake pads of front axle. | Only when replacing the brake caliper (4) or brake pads. | AR42.10-P-1610XGA |
| 18 | Install brake caliper (4) with brake caliper support (6) and installed brake pads. | ||
| 19 | Tighten screws (5) on brake caliper support (6). | *BA42.10-P-1001-10Y | |
| 20 | Attach brake hose (7) to brake caliper (4) and tighten retaining screw of brake line (8). | Only when replacing the brake caliper (4). |
*BA42.10-P-1010-04B |
| 21 | Attach coupling housing (1) together with electric line to brake caliper (4). | Only when installing the brake caliper (4) on the right side of the vehicle. | |
| 22 | Tighten screw (2) on coupling housing (1). | Only when installing the brake caliper (4) on the right side of the vehicle. | |
| *BA42.10-P-1004-10Y | |||
| 23 | Connect right front brake pad wear sensor (S10/2) at coupling housing (1). | Only when installing the brake caliper (4) on the right side of the vehicle. | |
| 24 | Attach left or right wheel and tire assembly on front axle. | Only perform if it is ensured that the outer vent screws on the 6-piston fixed caliper are accessible due to the construction of the wheel and tire assemblies on the front axle. Otherwise only carry out the procedure after bleeding the brake system. | AR40.10-P-1102XG |
| Initial startup | |||
| 25 | Bleed brake system. | Only when replacing the brake caliper (4) or after opening the hydraulic system of the service brake. | AR42.10-P-0010XG |
| 26 | Check and correct brake fluid level in expansion reservoir. | AP42.10-P-4210GA | |
| 27 | Perform brake test. | AP42.00-P-4290BA |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 463 as of model year 2019 | |||
|---|---|---|---|---|---|
| BA42.10-P-1001-10Y | Bolt, brake caliper/brake caliper support to steering knuckle | M14 | Stage 1 | Nm | 80 |
| Stage 2 | 4° | 45 | |||
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA42.10-P-1004-10Y | Screw, brake pad wear sensor to brake caliper (fixed caliper) | M6 | Nm | 8 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA42.10-P-1010-04B | Union nut, brake line to connecting point | Nm | 14 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
