Bleed Brake System - AR42.10-P-0010XG
Model 463 as of model year 2019

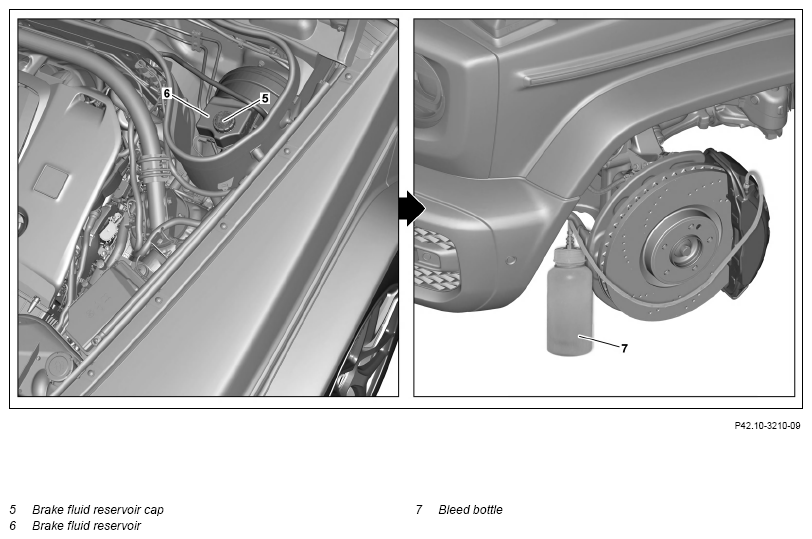

Shown on left side of vehicle with 4-piston fixed-caliper brake
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Clean | |||
| 1 | Open engine hood and raise to upright position. | AR88.40-P-1000XG | |
| 2 | Clean area around cap (5) of brake fluid reservoir (6). | ||
| Remove | |||
| 3 | Unscrew cap (5) on brake fluid reservoir (6). | ||
| 4 | Remove wheel and tire assemblies on front axle. | Only carry out if the outer vent screws on the 4-piston fixed caliper are not accessible due to the construction of the wheel and tire assemblies on the front axle. Model 463.276/277 as of model year 2019 |
AR40.10-P-1100XG |
| Bleeding | |||
| 5 | Fill new brake fluid up to maximum mark in the brake fluid reservoir (6). | ||
| Brake fluids (DOT 4 plus) | BB00.40-P-0331-00A | ||
| General brake fluid | BB00.40-P-0330-01A | ||
| 6 | Connect filling unit to brake fluid reservoir (6). | ||
| 000 588 01 82 00 Filling unit | WS25.00-P-0016B | ||
| 7 | Switch on filling unit. | ||
| 8 | Raise vehicle. | AR00.60-P-1006A | |
| 9 | Perform bleeding procedure. | AR42.10-P-0010-02XG | |
| 10 | Lower the vehicle. | AR00.60-P-1006A | |
| 11 | Switch off filling unit and disconnect from brake fluid reservoir (6). | ||
| Check | |||
| 12 | Check brake system for leak tightness. | AR42.10-P-0100-01V | |
| 13 | Correct fluid level in brake fluid reservoir (6). | ||
| Install | |||
| 14 | Screw cap (5) onto brake fluid reservoir (6). | ||
| 15 | Install wheel and tire assemblies on front axle. | If necessary. Model 463.276/277 as of model year 2019 |
AR40.10-P-1100XG |
