Remove And Install Front End CROSSMEMBER - Ar62.30-P-2300XG

Model 463

as of model year 2019

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove radiator grille.		AR88.00-P-2115XG
2	Remove engine cover.	Model 463 as of model year 2019 Model 463 with engine 177 as of model year 2019	AR01.10-P-2405XGC
		Model 463 with engine 176 as of model year 2019	AR01.10-P-2405XGA
		Model 463 with engine 656 as of model year 2019	AR01.10-P-2405XGE

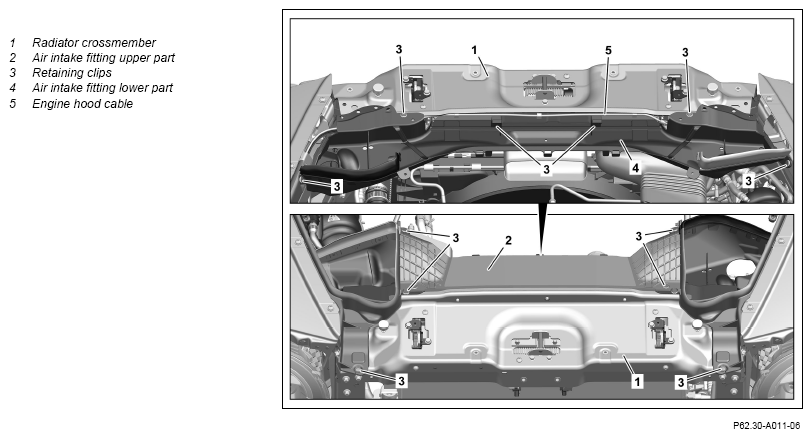

3	Remove retaining clips (3) and remove air intake fitting upper part (2).	Clip remover	-
4	Remove retaining clips (3) and remove air intake fitting lower part (4).	Clip remover	-
5	Unhook hood cable (5) from the radiator crossmember (1).
6	Remove left and right engine hood catch lower part.		AR88.40-P-3201XG

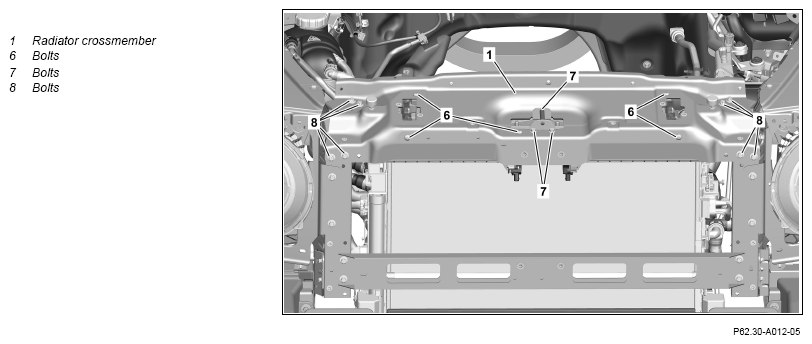

7	Remove screws (6).
8	Remove screws (7).	Bolt on safety hook	*BA88.40-P-1005-01D
9	Remove screws (8).	Bolt, front crossmember (top) to connecting carrier/mounting support	*BA62.30-P-1005-01J
10	Remove radiator crossmember (1).
11	Install in the reverse order.

CROSS MEMBER AND FRONT REINFORCEMENT

Number	Designation			Model 463 as of model year 2019
BA62.30-P-1005-01J	Bolt, front crossmember (top) to connecting carrier/mounting support	M8	Nm	22

ENGINE HOOD

Number	Designation		Model 463 as of model year 2019
BA88.40-P-1005-01D	Bolt on safety hook	Nm	8
