Remove/Install Engine Hood Catch - AR88.40-P-3201XG

Model 463

as of model year 2019

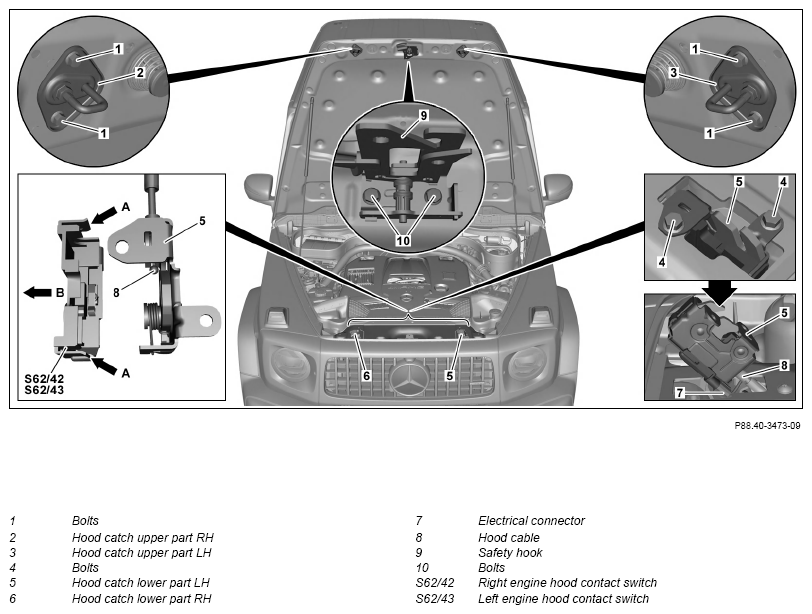

Fig 1: Engine Hood Catch Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood and raise to upright position.		AR88.40-P-1000XG
2	Remove screws (1) at hood catch upper part RH (2) and/or hood catch upper part LH (3).	Bolt on upper section of engine hood catch	*BA88.40-P-1003-01D
3	Remove hood catch upper part RH (2) and/or hood catch upper part LH (3).
4	Mark installation position of hood catch lower part LH (5) and/or hood catch lower part RH (6).
5	Remove screws (4) at hood catch lower part LH (5) and/or hood catch lower part RH (6).	Take into account any possibly present shims. Bolt on engine hood catch	*BA88.40-P-1004-01D
6	Remove hood catch lower part LH (5) and/or hood catch lower part RH (6) from radiator crossmember until electrical connector (7) can be accessed.
7	Disconnect electrical connector (7) at hood RH contact switch (S62/42) and/or hood LH contact switch (S62/43).
8	Release lugs (arrows A) at hood RH contact switch (S62/42) and/or hood LH contact switch (S62/43).
9	Remove hood RH contact switch (S62/42) and/or hood LH contact switch (S62/43) in direction of arrow (B).
10	Detach hood cable (8) at hood catch lower part LH (5) and/or hood catch lower part RH (6).
11	Remove hood catch lower part LH (5) and/or hood catch lower part RH (6).
12	Mark installation position of safety hook (9).
13	Remove screws (10) at safety hook (9).	Bolt on safety hook	*BA88.40-P-1005-01D
14	Remove safety hook (9).
15	Install in reverse order.

ENGINE HOOD

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA88.40-P-1003-01D	Bolt on upper section of engine hood catch	Nm	21	8

ENGINE HOOD

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA88.40-P-1004-01D	Bolt on engine hood catch	Nm	8	8

ENGINE HOOD

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA88.40-P-1005-01D	Bolt on safety hook	Nm		8
