Remove/Install Engine Cover - AR01.10-P-2405XGA

Engine 176 in model 463 as of model year 2019

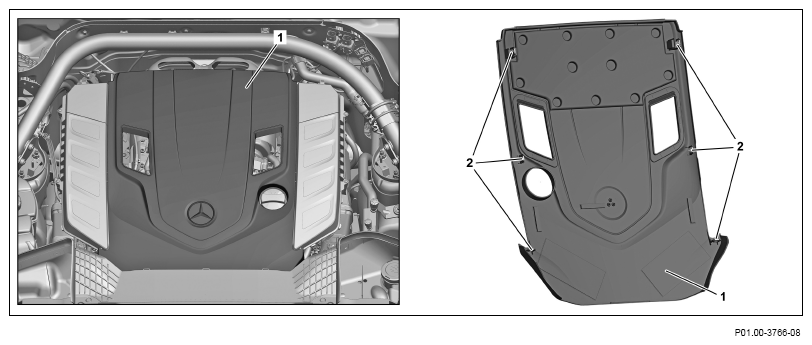

Fig 1: Engine Cover Components Location - Engine 176 In Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Release engine cover (1) in area of retaining clips (2) from elastomer bearings	: Wet elastomer bearings with lubricant.
		Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
2	Remove engine cover (1) upwards
3	Check elastomer bearings for damage	If a problem arises ↓ Replace relevant elastomer bearing(s).
4	Check retaining clips (2) for damage	If a problem arises ↓ Replace corresponding retaining clips (2).
5	Check mount of retaining clips (2) for damage	If a problem arises ↓ Replace engine cover (1).
6	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	A 000 989 01 60
