Remove/Install Engine Cover - AR01.10-P-2405XGC

Engine 177 in model 463 as of model year 2019

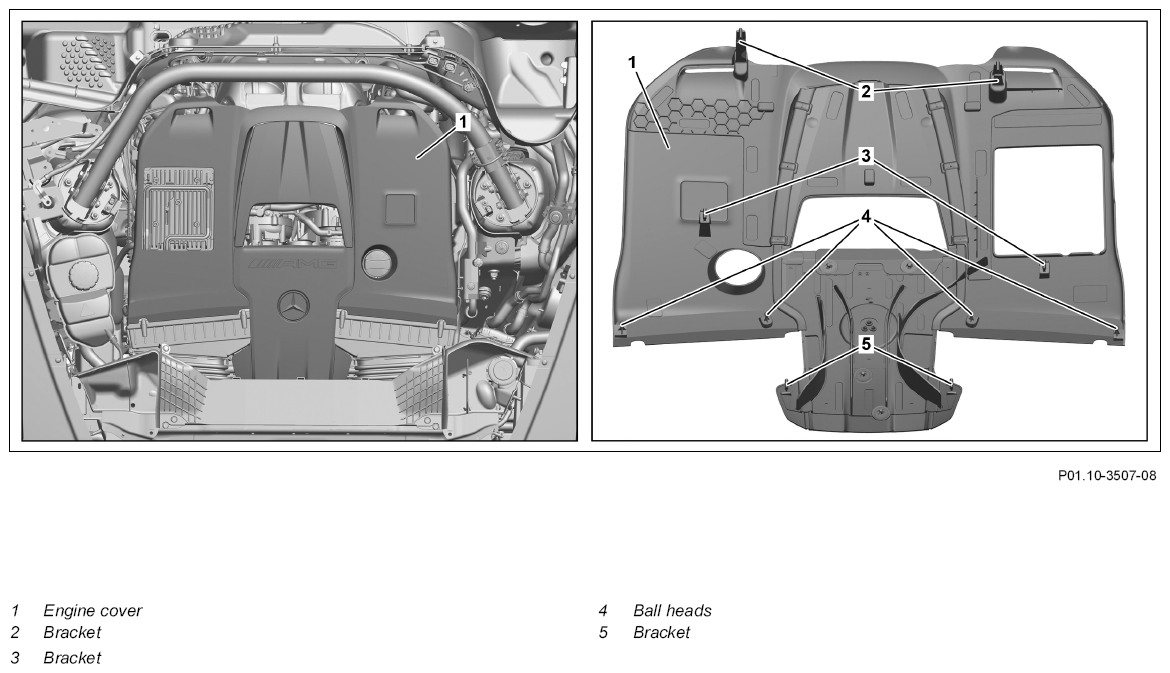

Fig 1: Engine Cover Components Location - Engine 177 In Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Unfasten bracket (5).
2	Unfasten ball heads (4) from the elastomer bearings.
3	Unfasten the bracket (3, 2) and remove engine cover (1) upwards.	: Coat elastomer bearing with lubricating paste.
		Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
4	Check elastomer bearings for damage.	If complaints are present, ↓ Replace relevant elastomer bearing(s).
5	Install in the reverse order.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	A 000 989 01 60
