Retrofit Front And Rear Mercedes-Benz Dashcam - AZ54.71-P-0001LWO

Model 238.3

Except Code 540 (Electric roller blind for rear window)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove A-pillar trim on driver's side.
			AR68.30-P-4050LWO
2	Release fuse and relay module on driver's side.
			AR54.15-P-0003LWE
3	Remove trim at bottom for instrument panel on driver's side.
			AR68.10-P-1501LWE
4	Remove C-pillar trim on driver's side and place to one side with attached seat belt.
			AR68.30-P-4490LWO
5	Remove overhead control panel control unit.
			AR82.20-P-1000LWO
	Install
6	Retrofit front dashcam mount.	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. During the first hour avoid the application of any mechanical load. Otherwise adhesion problems may occur.	AZ54.71-P-0001-00LWG
		Cleaner	*BR00.45-Z-1025-04A
7	Retrofit rear dashcam mount.	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. During the first hour avoid the application of any mechanical load. Otherwise adhesion problems may occur.	AZ54.71-P-0003-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
8	Remove cover for rain and light sensor.	Long wedge	Fig 1
9	Remove both sun visors.
			AR68.60-P-5480LWO
10	Remove coat hook on driver's side and remove bolt under it.
11	Release front and rear roof lining on driver's side.
	Install
12	Retrofit wiring harness for dashcam.		AZ54.71-P-0001-01LWO
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Left front footwell ground point	*BA00.19-P-1012-02B
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2

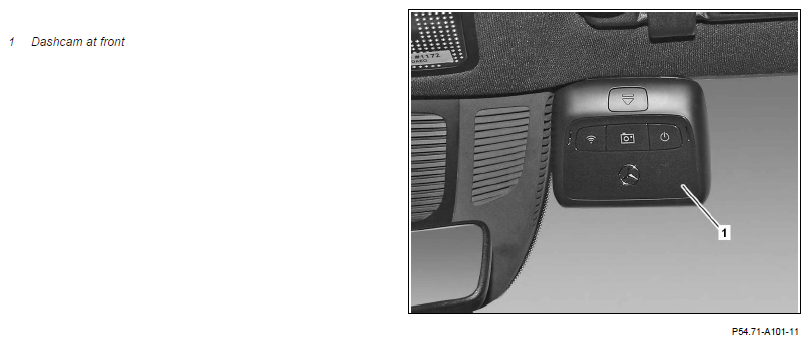

13	Latch dashcam at front (1) into dashcam mount opposite direction of arrow on eject button.	Mount dashcam at front (1) at the earliest one hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.

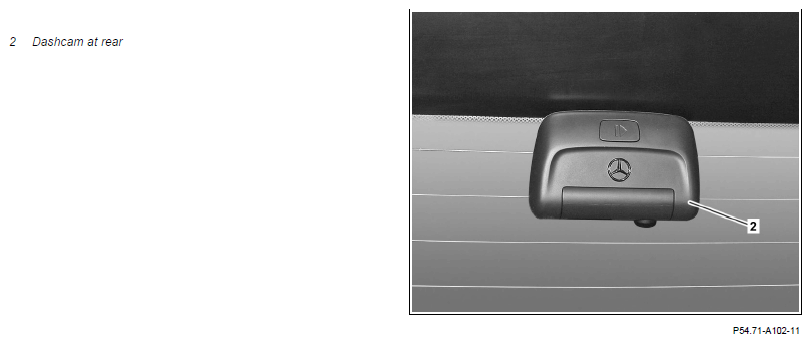

14	Latch dashcam at rear (2) into dashcam mount opposite direction of arrow on eject button.	Mount dashcam at rear (2) at the earliest one hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.
15	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
16	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
17	Attach "Mercedes-Benz dashcam retrofitted at front and rear as per AZ54.71-P-0001LWO note" under field organization texts to DG 54, DG 67 and DG 68.
	Check
18	Perform function test.	See Owner's Manual.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
