Remove/Install Paneling On A-Pillar - AR68.30-P-4050LWO

Model 238.3

Courtesy of MERCEDES-BENZ USA

	Remove/install

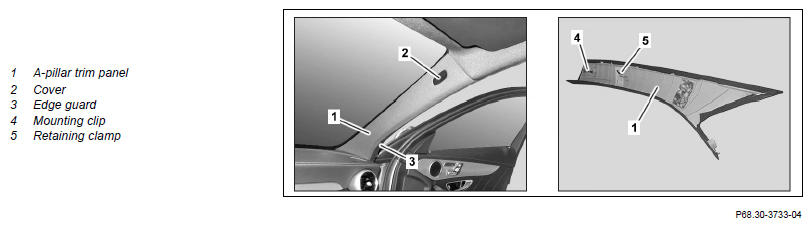

1	Unclip cover (2)	Clip remover	Fig 1
2	Detach edge guard (3) in area of A-pillar paneling (1)	Ensure that edge guard (3) is seated correctly.
3	Unclip A-pillar paneling (1) from mounting clip (4) and retaining clips (5) and pivot slightly inwards at the top	Mounting wedge	Fig 2
4	Pull A-pillar paneling (1) towards rear and up out of instrument panel, and remove
5	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
