Remove/Install Trim At C-Pillar - AR68.30-P-4490LWO

Model 238.3

Courtesy of MERCEDES-BENZ USA

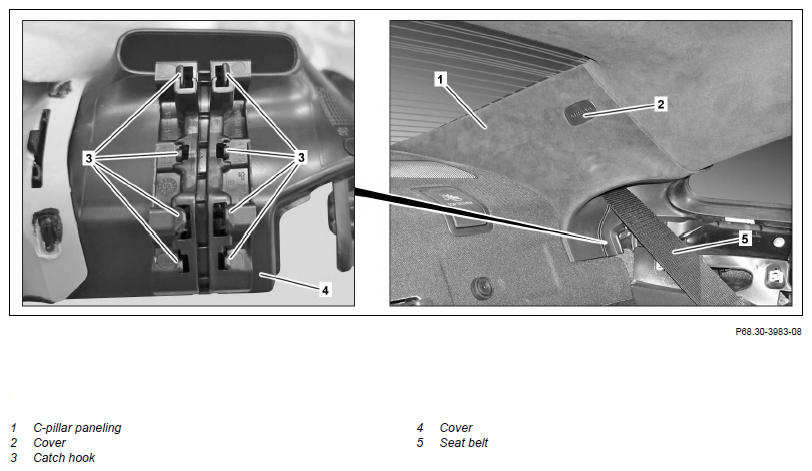

Shown on left side of vehicle

	Remove/install
1	Remove left or right upper trim in rear		AR68.30-P-4783LWO
2	Unclip cover (2)	Retaining clip remains in C-pillar trim (1). Clip remover	Fig 1
3	Detach C-pillar paneling (1) from C-pillar, slightly tilt toward center of vehicle and then move out toward front	Carefully detach and tilt C-pillar trim (1). Otherwise roof paneling can be damaged. Insert cover (2) in retaining clips of C-pillar trim (1). C-pillar trim (1) is clipped in fully assembled. Ensure that C-pillar trim (1) is seated correctly.
4	Release catch hooks (3) and remove cover (4)
5	Guide seat belt (5) through C-pillar trim (1) and remove C-pillar trim (1) from vehicle
6	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
