Remove/Install Driver's Side Fuse And Relay Module - AR54.15-P-0003LWE

Model 213, 238

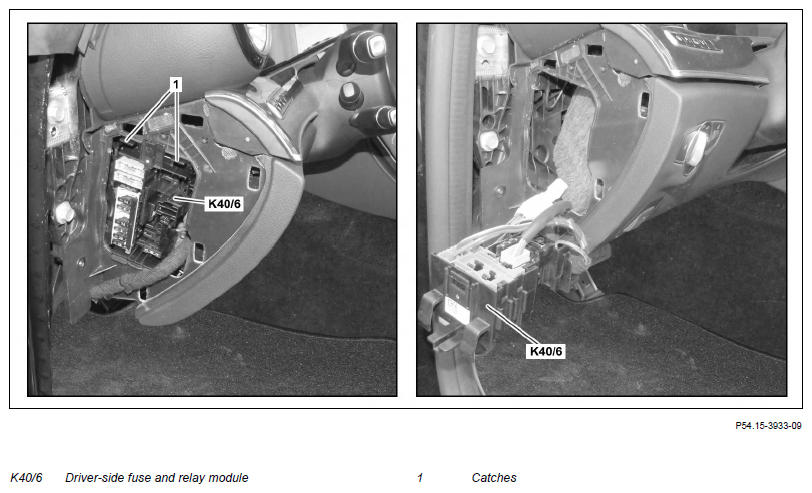

Fig 1: Driver's Side Fuse And Relay Module Components Location - Model 238

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect ground line from battery.	Model 238	AR54.10-P-0003LWO
		Model 213	AR54.10-P-0003LW
2	Remove instrument panel cover on driver's side.	Long wedge	Fig 2
3	Release fuse and relay module on driver's side (K40/6) at catches (1) and remove.
4	Disconnect all electrical connectors from fuse and relay module on driver's side (K40/6).	The number of electrical connectors may vary depending on the equipment.
5	Unclip all fuse holders and place to one side.
6	Remove fuse and relay module on driver's side (K40/6).
7	Change all fuses and relays.	When replacing fuse and relay module on driver's side (K40/6).
	Assignment of driver-side fuse and relay module	Model 213 up to model year 2021	GF54.15-P-1256-49FG
	Assignment of driver-side fuse and relay module	Model 238 up to model year 2021	GF54.15-P-1256-49FH
8	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
