Remove/Install Sun Visor - AR68.60-P-5480LWO

Model 238

Courtesy of MERCEDES-BENZ USA

Shown on model 238.3

Shown on model 238.3

Courtesy of MERCEDES-BENZ USA

	Remove

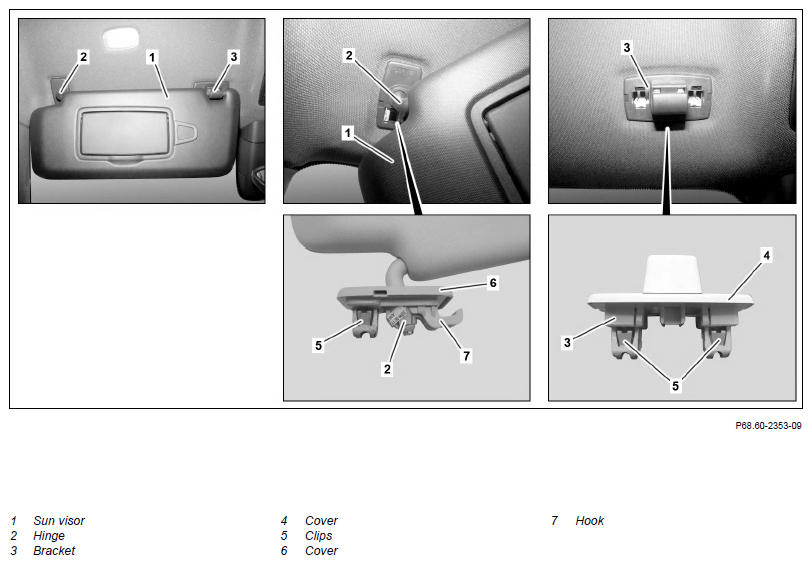

1	Fold down sun visor (1), unclip from bracket (3) and pivot to side
2	Unclip cover (6) from hinge (2) and remove	Clip remover	Fig 1
3	Unclip cover (4) from bracket (3) and remove	Clip remover	Fig 1

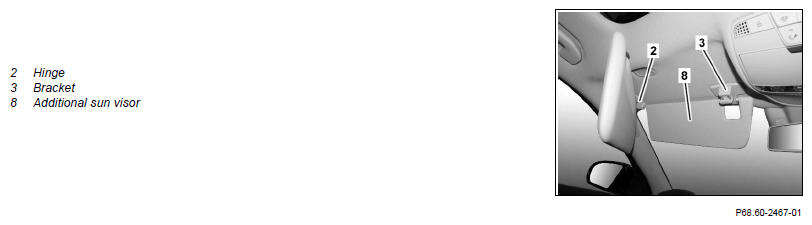

4	Press clips (5) together on bracket (3) and remove bracket (3)	The additional sun visor (8) and the bracket (3) must be removed together.
5	Press clips (5) together on hinge (2) and remove sun visor (1)
	Install
6	Clip cover (6) and clip (5) into hinge (2)
7	Install hinge (2) in roof and clip in
8	Clip cover (4) and clips (5) into bracket (3)
9	Install additional sun visor (8) in hinge (2) and clip into bracket (3)
10	Clip bracket (3) into roof
11	Fold up additional sun visor (8)
12	Clip sun visor (1) into bracket (3) and fold up

Fig 1: Identifying Clip Remover (452 589 01 63 00)
