Overview Of System Components, Telematics - GF82.85-P-9999FH
Model 238 Up To Model Year 2021
Component parts except telematics antenna system and except speaker system, Shown On Model 238.3
Model 238 up to model year 2021 with code U82 (USB charge socket in rear passenger compartment)
The rear USB connector is only used to charge external mobile devices (e.g. a mobile phone).
The following components are not shown:
- Emergency call system button group (S93/3) (model 238.4 with code 360 (HERMES UMTS) or with code 362 (HERMES LTE))

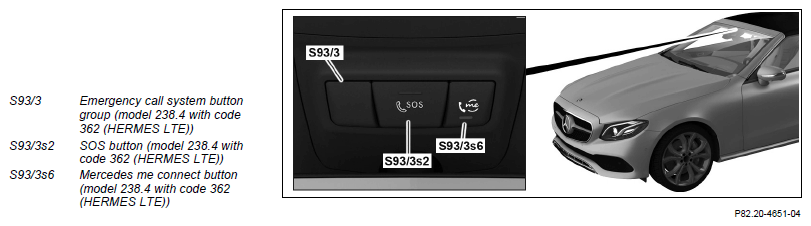

Detailed view of emergency call system button group on model 238.4 as of 01.06.2018 With Code 362 (HERMES LTE)
Detailed view of emergency call system button group on model 238.4 up to 31.05.2018 With Code 360 (HERMES UMTS)
Detailed view of Audio/COMAND control panel, touchpad and right lower control panel, shown with transmission 725 and Except Code 446 (Touchpad only)
Detailed view of left lower control panel, shown with transmission 716.7
Detailed view of overhead control panel control unit, Shown On Model 238.3 as of 01.06.2018
Detailed view of overhead control panel control unit up to 31.05.2018, Shown On Model 238.3
Detailed view of multifunction steering wheel button group head unit as of 01.06.2018
Detailed view of instrument cluster multifunction steering wheel button group and head unit multifunction steering wheel button group up to 31.05.2018
Telematics antenna system, Shown On Model 238.3
Telematics antenna system, Shown On Model 238.4
Model 238 as of model year 2019 up to model year 2021 with code 865 (digital TV)
The TV 1 antenna amplifier is no longer installed at the right A-pillar, but instead in the trunk on the right behind the side trim.
The following component is not shown:

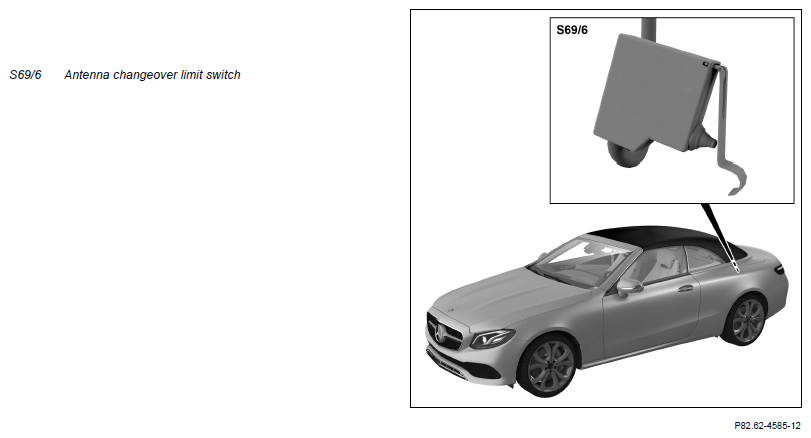

- Antenna switchover limit switch (S69/6) (model 238.4)
Shown On Model 238.4
Speaker system Except Code 810 (Sound system) and Except Code 811 (Advanced Sound System), Shown On Model 238.3
Speaker system, Shown On Model 238 With Code 810 (Sound system)

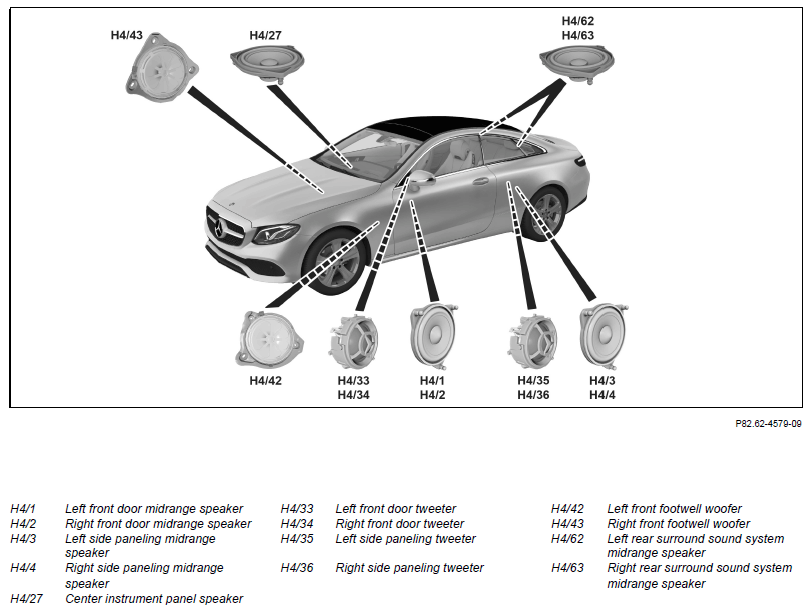

Speaker system, Shown On Model 238 With Code 811 (Advanced sound system)
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Head unit, component description | Model 238 up to model year 2021 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FH | |
| Model 238 up to model year 2021 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHA | ||
| Model 238 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHB | ||
| Model 238 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHC | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FH | |
| Component description for Audio/COMAND control panel | Model 238 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FH | |
| Tuner unit, component description | Model 238 up to model year 2021 with code 522 (Audio 20 radio) with code 536 (Sirius satellite radio complete system) Model 238 up to model year 2021 with code 522 (Audio 20 radio) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) A90/4 |
GF82.60-P-5015FH | |
| Touchpad, component description | Model 238 up to model year 2021 with code 446 (Touchpad only) Model 238 up to model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FH | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FH | |
| Component description for ME-SFI (ME) control unit | Model 238 with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | |
| Model 238 with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRD | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FH | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FH | |
| Engine sound control unit, component description | Model 238 up to model year 2021 with code B63 (Engine sound via speakers) except code 810 (Premium sound system) except code 811 (High-End sound system) N40/1 | GF54.21-P-0019FH | |
| Component description for sound system amplifier control unit | Model 238.361/461 up to model year 2021 except code 810 (Premium sound system) except code 811 (High-End sound system) N40/2 | GF82.62-P-5010FHB | |
| Model 238 up to model year 2021 with code 810 (Premium sound system) except code 811 (High-End sound system) N40/3 | GF82.62-P-5010FH | ||
| Model 238 up to model year 2021 with code 811 (High-End sound system) N40/7 | GF82.62-P-5010FHA | ||
| Component description for overhead control panel control unit | N70, S93/3 | GF82.20-P-5216FH | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FH | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Component description for steering column tube module control unit | Model 238 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FHG | |
| Model 238 up to model year 2019 N80 | GF54.21-P-6051FH | ||
| HERMES control unit, component description | Model 238 up to model year 2021 with code 360 (HERMES UMTS) Model 238 up to model year 2021 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221FH | |
| Mobile phone cradle control unit component description | Model 238 up to model year 2021 with code 896 (Vehicle access and authorization via smartphone) Model 238 up to model year 2021 with code 897 (Front wireless telephone charging) Model 238 up to model year 2021 with code 899 (Front wireless telephone charging and antenna) N123/8 |
GF82.70-P-0201FH | |
| Telephone control unit, component description | Model 238 up to model year 2021 with code 380 (Car telephony package) N123/9 | GF82.70-P-4153FH | |
| Steering wheel electronics control unit, component description | Model 238 as of model year 2019 up to model year 2021 N135 | GF82.90-P-4006FHG | |
| TV tuner control unit, component description | Model 238 up to model year 2021 with code 865 (digital TV) N143 | GF82.60-P-3108FH |
