Remove/Install Outer Rear Wheel Well - Ar63.10-P-0665LWE
Model 213

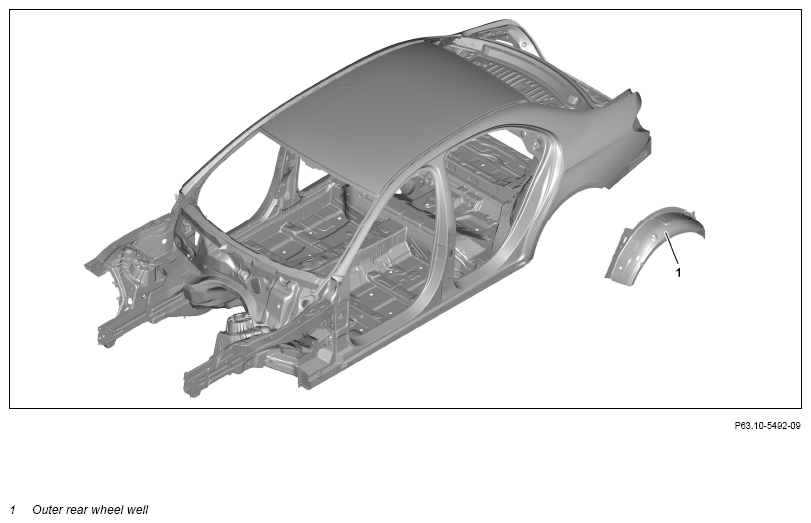

Shown on model 213.0
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A . | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A . | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U.>= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A . | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A . | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A . | ||
| Notes on battery | AH54.10-P-0001-01A . | ||
| General information on body repair | AH60.00-N-0001-01A . | ||
| Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | ||
| Notes on acoustic foam and structural foam in the vehicle | AH60.00-P-0039-01LWE . | ||
| General information on MB materials | AH98.00-P-9409-03A . | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blankets | ||
| 3 | Remove rear fender | Model 213.0 | AR63.50-P-1401LWE . |
| Model 213.1 | AR63.50-P-1401LWV . | ||
| Model 213.2 | AR63.50-P-1401LWT . | ||
| 4 | Separate outer rear wheel well (1) | AR63.10-P-0660-01LWE . | |
| 000 588 00 84 00 Heat gun | Round wire brush Spot weld milling machine Body power jigsaw Wet/dry vacuum cleaner |
WS54.00-P-0049B . | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A . | ||
| 5 | Prepare outer rear wheel well (1) | Round wire brush Body power jigsaw |
AR63.10-P-0670-05LWE . |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A . | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. |
AS00.00-Z-0007-01A . | |
| Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A . | ||
| General information on riveting | AH60.00-P-0003-01N . | ||
| 6 | Install outer rear wheel well (1) and weld in | AR63.10-P-0670-06LWE . | |
| Gap dimensions on hoods, doors and lids | AR60.00-P-0700-01LWE . | ||
| 000 588 01 84 00 Welder | WS60.00-P-0021K . | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K . | ||
Round wire brush Manual temporary fastener 6.35 mm Blind rivet gun (minimum pull-off force 19 kN) Wet/dry vacuum cleaner Model 213.0/1/2 Rear sidewall to taillamp |
*BE60.00-P-1014-01GA . | ||
| Model 213.0/1 Trunk lid to fender at rear, top | *BE60.00-P-1011-01GA . | ||
| Model 213.2 Sidewall to liftgate | *BE60.00-P-1021-01GA . | ||
| Model 213.2 Outside of taillamp to inside of taillamp | *BE60.00-P-1022-01GA . | ||
| Model 213.0/1/2 Rear door to side section, bottom | *BE60.00-P-1009-01GA . | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A . | ||
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A . | ||
| Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1035-13A . | ||
| 7 | Clean welds and sheet metal flanges | Round wire brush |
|
| 8 | Install rear fender | Model 213.0 | AR63.50-P-1401LWE . |
| Model 213.1 | AR63.50-P-1401LWV . | ||
| Model 213.2 | AR63.50-P-1401LWT . | ||
| 9 | Install all detachable body components in area to be repaired |
CHECK VALUES FOR GAP DIMENSIONS (Rear Door To Side Section)
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1009-01GA | Rear door to side section, bottom | Dimension "I" | mm | 3, 3 (±0, 5) | 3, 3 (±0, 5) |
| For picture, see | AR60.00-P-0700-01LWE . | AR60.00-P-0700-01LWE . | |||
CHECK VALUES FOR GAP DIMENSIONS (Trunk Lid To Fender)
| Number | Designation | Model 213.0/1 | ||
|---|---|---|---|---|
| BE60.00-P-1011-01GA | Trunk lid to fender at rear, top | Dimension "K" | mm | 3, 3 (±0, 8) |
| For picture, see | AR60.00-P-0700-01LWE | |||
CHECK VALUES FOR GAP DIMENSIONS (Rear Sidewall To Taillamp)
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1014-01GA | Rear sidewall to taillamp | Dimension "N" | mm | 1 (±0, 7) | 1 (±0, 7) |
| For picture, see | AR60.00-P-0700-01LWE | AR60.00-P-0700-01LWE | |||
CHECK VALUES FOR GAP DIMENSIONS (Sidewall To Liftgate)
| Number | Designation | Model 213.2 | ||
|---|---|---|---|---|
| BE60.00-P-1021-01GA | Sidewall to liftgate | Dimension "S" | mm | 3, 5 (±0, 8) |
| For picture, see | AR60.00-P-0700-01LWE | |||
CHECK VALUES FOR GAP DIMENSIONS (Outside Of Taillamp To Inside Of Taillamp)
| Number | Designation | Model 213.2 | ||
|---|---|---|---|---|
| BE60.00-P-1022-01GA | Outside of taillamp to inside of taillamp | Dimension "T" 1 | mm | 3, 8 (±1, 0) |
| For picture, see | AR60.00-P-0700-01LWE . | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1035-13A | Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
