Install Outer Rear Wheel Well - Ar63.10-P-0670-06LWE
Model 213
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1009-01GA | Rear door to side section, bottom | Dimension "I" | mm | 3, 3 (±0, 5) | 3, 3 (±0, 5) |
| For picture, see | AR60.00-P-0700-01LWE . | AR60.00-P-0700-01LWE . | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1011-01GA | Trunk lid to fender at rear, top | Dimension "K" | mm | 3, 3 (±0, 8) | - |
| For picture, see | AR60.00-P-0700-01LWE . | - | |||
CHECK VALUES FOR GAP DIMENSIONS (Rear Sidewall To Taillamp)
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1014-01GA | Rear sidewall to taillamp | Dimension "N" | mm | 1 (±0, 7) | 1 (±0, 7) |
| For picture, see | AR60.00-P-0700-01LWE . | AR60.00-P-0700-01LWE . | |||
CHECK VALUES FOR GAP DIMENSIONS (Fuel Filler Flap)
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1015-01GA | Fuel filler flap | Dimension "O" | mm | 2 (±0, 5) | 2 (±0, 5) |
| For picture, see | AR60.00-P-0700-01LWE . | AR60.00-P-0700-01LWE . | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1035-13A | Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The next steps are shown on the left side of the vehicle and must be performed in the same way in the event of damage on the right side of the vehicle.
Further information can be found in the superordinate service information.
The safety information in the superordinate service information must be observed.

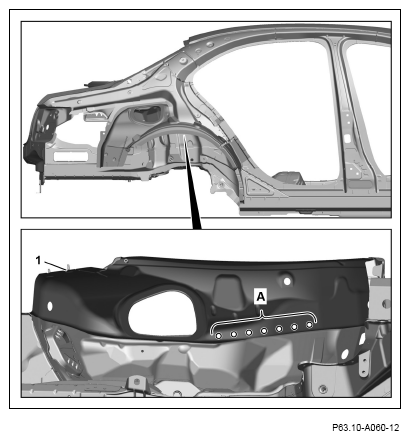

Shown on the right side of the vehicle of model 213.0
- Install outer rear wheel well (1), rear fender, rear lamp, seal of the trunk lid, trunk lid, and lock striker and fit.
- Check gaps and adjust.
- Fix outer rear wheel well (1) in place.
- Remove rear fender, rear lamp, seal of the trunk lid, trunk lid, and lock striker.

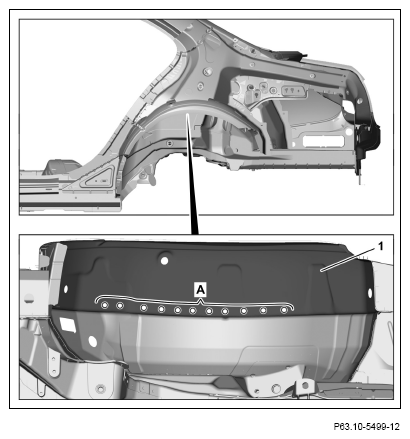

- Drill rivet holes on outer rear wheel well (1) with Ø 6.7 mm bit (area A).
- Remove outer rear wheel well (1).
- Deburr rivet holes on outer rear wheel well (1) and body on both sides.
- Remove drilling chips.
- Coat insides of riveted joints with zinc dust paint.
Shown on the left side of the vehicle of model 213.0

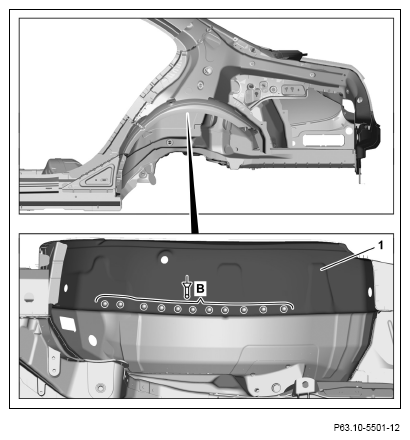

Shown on the right side of the vehicle of model 213.0
- Install outer rear wheel well (1) and fix in place.
- Rivet outer rear wheel well (1) with rivets with a diameter of 6.4 x 12 (area B).
Clamping range 1.2 mm.
Shown on the left side of the vehicle of model 213.0
Shown on the right side of the vehicle of model 213.0

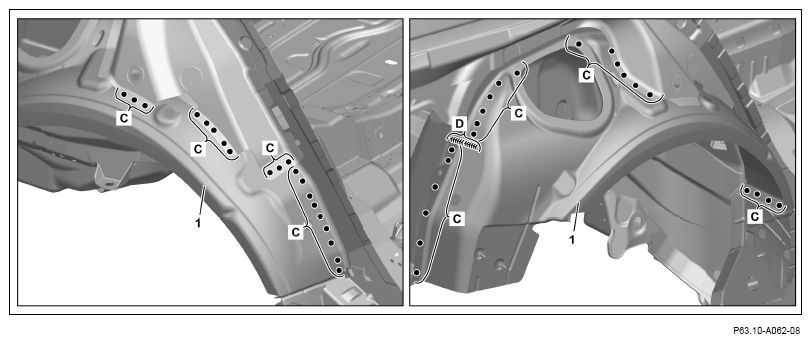

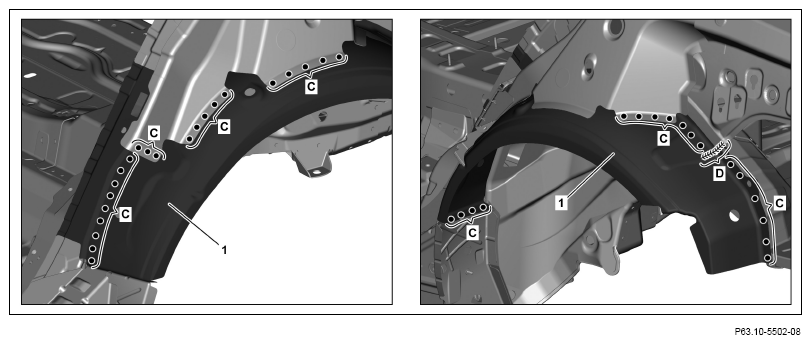

Shown on the left side of the vehicle of model 213.0
- Outer rear wheel well (1)
(areas C).
- Outer rear wheel well (1)
(area D).
