Remove/Install Front Bumper - AR88.20-P-2000FR
Model 257, 290

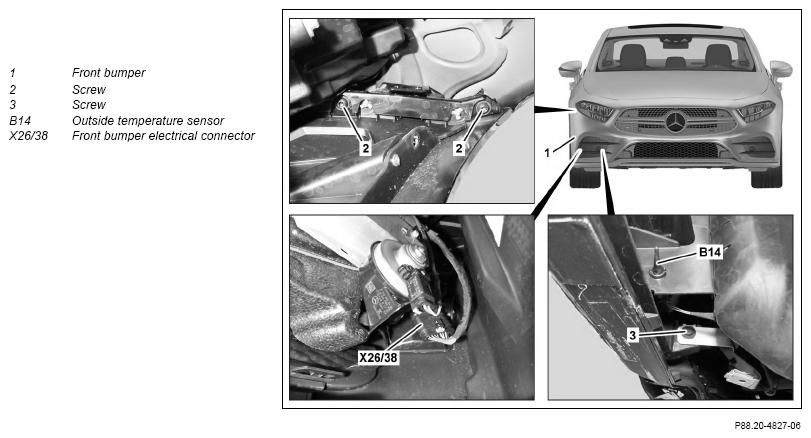

Shown on model 257

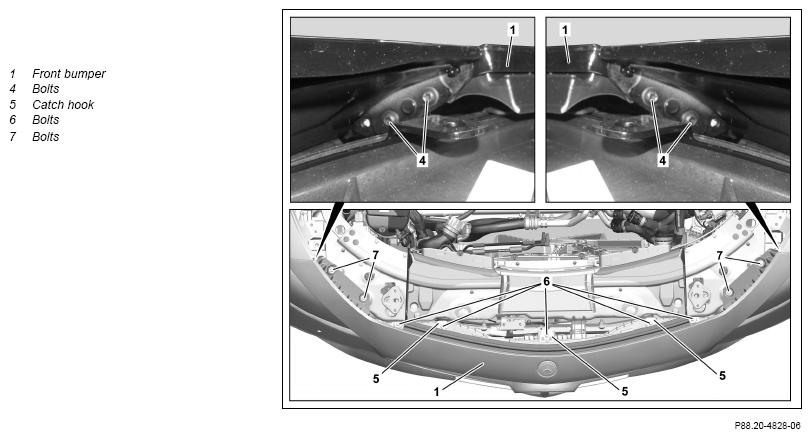

Shown on model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 2 | Remove front engine compartment linings. | Model 290 | AR61.20-P-1105FRX |
| Model 257 | AR61.20-P-1105FR | ||
| 3 | Remove front left and right fender liner in fender from front bumper (1). | AR88.10-P-1301FR | |
| 4 | Remove screws (2) on left and right from front bumper (1). | ||
| 5 | Remove screws (3) on left and right from front bumper (1). | ||
| 6 | Disconnect front bumper electrical connector (X26/38). | ||
| 7 | Remove outside temperature sensor (B14) from front bumper (1). | ||
| 8 | Disconnect electrical connector from front 360° camera. | Model 257, 290 with code 501 (360° camera) |
|
| 9 | Remove screws (4) on left and right from front bumper (1). | ||
| 10 | Unscrew screws (7). | ||
| 11 | Remove screw/bolts (6). | ||
| 12 | Release catch hooks (5) and guide out front bumper (1). | ||
| 13.1 | Disconnect electrical connector from Mercedes star. | Model 257, 290 with code 233 (DISTRONIC PLUS) Model 257, 290 with code 239 (DISTRONIC PLUS) |
|
| 13.2 | Disconnect electrical connector from radar sensor. | Model 257, 290 with code 258 (Active Brake Assist System) |
|
| 14 | Remove front bumper (1). | ||
| Check | |||
| Topical note | General information on the impact absorber | AH88.20-P-1000-01A | |
| 15.1 | Check impact absorber for damage. | Model 257, 290 except code U60 (Active Bonnet (Pedestrian protection)) If there is a problem on the impact absorber, ↓ Replace impact absorber. |
|
| 15.2 | Check pedestrian protection sensor and impact absorber for damage of any kind (cracks, holes, breakovers, etc.). | Model 257, 290 with code U60 (Active Bonnet (Pedestrian protection)) |
|
| Topical note | Notes on pedestrian protection sensor | If there is a problem, ↓ replace impact absorber or pedestrian protection sensor. |
AH91.60-P-0001-01A |
| AR91.60-P-0950FR | |||
| 16 | Install in the reverse order. | ||
| 17 | Set gap dimensions at front bumper (1). | AR88.20-P-2001FR | |
| 18 | Calibrate front 360° camera with vehicle diagnosis system. | Model 257, 290 with code 501 (360° camera) |
|
| AD00.00-P-2000-06FR | |||
| 19 | Calibrate Active Brake Assist controller unit with vehicle diagnosis system. | Model 257, 290 with code 258 (Active Brake Assist System) |
|
| AD00.00-P-2000-06FR |
