Adjust Front Bumper - AR88.20-P-2001FR
Model 257, 290
Shown on model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||
| 1 | Check adjustment of front bumper (1). | Model 290Protrusion of radiator trim/soft nose, engine hood | *BE60.00-P-1003-01KA |
| Model 290 Bumper to headlamp at top | *BE60.00-P-1008-01KA | ||
| Model 290 Bumper to headlamp, side | *BE60.00-P-1007-01KA | ||
| Model 290 Bumper to headlamp at bottom | *BE60.00-P-1006-01KA | ||
| Model 290 Engine hood to bumper | *BE60.00-P-1002-01KA | ||
| Model 257.3 Engine hood to bumper | *BE60.00-P-1002-01IA | ||
| Model 257.3 Bumper to headlamp at bottom | *BE60.00-P-1005-01IA | ||
| Model 257.3 Bumper to headlamp, side | *BE60.00-P-1006-01IA | ||
| Model 257.3 Bumper to headlamp at top | *BE60.00-P-1007-01IA | ||
| Model 257.3 Protrusion of radiator trim/soft nose, engine hood | *BE60.00-P-1020-01IA | ||

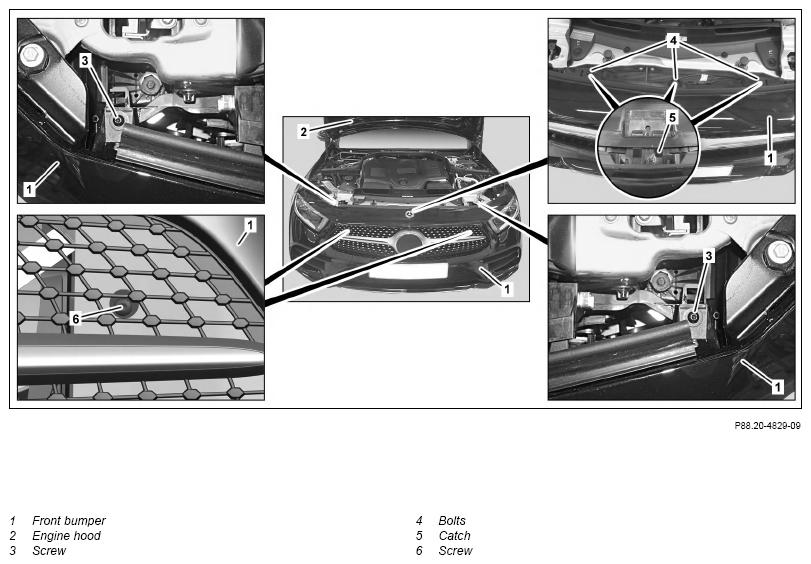

| Fig 1 | |||
| Adjust | |||
| 2 | Open hood (2). | ||
| 3 | Loosen screws (3, 4). | ||
| 4 | Release front bumper (1) from arrests (5) and pull toward front. | ||
| 5 | Release screws (6). | Model 257 | |
| 6 | Close hood (2). | ||
| 7 | Adjust front bumper (1) in relation to hood (2) and headlamps. | Model 290 Protrusion of radiator trim/soft nose, engine hood | *BE60.00-P-1003-01KA |
| Model 290 Bumper to headlamp at top | *BE60.00-P-1008-01KA | ||
| Model 290 Bumper to headlamp, side | *BE60.00-P-1007-01KA | ||
| Model 290 Bumper to headlamp at bottom | *BE60.00-P-1006-01KA | ||
| Model 290 Engine hood to bumper | *BE60.00-P-1002-01KA | ||
| Model 257.3 Engine hood to bumper | *BE60.00-P-1002-01IA | ||
| Model 257.3 Bumper to headlamp at bottom | *BE60.00-P-1005-01IA | ||
| Model 257.3 Bumper to headlamp, side | *BE60.00-P-1006-01IA | ||
| Model 257.3 Bumper to headlamp at top | *BE60.00-P-1007-01IA | ||
| Model 257.3 Protrusion of radiator trim/soft nose, engine hood | *BE60.00-P-1020-01IA | ||
| Fig 1 | |||
| 8 | Open hood (2). | ||
| 9 | Tighten screws (3, 4). | ||
| 10 | Tighten screws (6). | Model 257 | |
| 11 | Close hood (2). | ||
| Calibrate | |||
| 12 | Calibrate 360° camera with vehicle diagnosis system. | Model 257, 290 with code 501 (360° camera) |
|
| AD00.00-P-2000-06FR | |||
| 13 | Calibrate Active Brake Assist controller unit with vehicle diagnosis system. | Model 257, 290 with code 258 (Active Brake Assist System) |
|
| AD00.00-P-2000-06FR |
GAP DIMENSIONS
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1002-01IA | Engine hood to bumper | Dimension "B" | mm | 3, 5 (± 0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
GAP DIMENSIONS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BE60.00-P-1002-01KA | Engine hood to bumper | Dimension "B" | mm | 3, 5 (± 0, 5) |
| For picture, see | AR60.00-P-0900-01FRX | |||
GAP DIMENSIONS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BE60.00-P-1003-01KA | Protrusion of radiator trim/soft nose, engine hood | Dimension "B1" | mm | 1 (± 0, 5) |
| For picture, see | AR60.00-P-0900-01FRX | |||
GAP DIMENSIONS
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1005-01IA | Bumper to headlamp at bottom | Dimension "E1" | mm | 2 (± 0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
GAP DIMENSIONS
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1006-01IA | Bumper to headlamp, side | Dimension "E2" | mm | 3 (± 1, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
GAP DIMENSIONS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BE60.00-P-1006-01KA | Bumper to headlamp at bottom | Dimension "E1" | mm | 2, 0 (± 1, 0) |
| For picture, see | AR60.00-P-0900-01FRX | |||
GAP DIMENSIONS
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1007-01IA | Bumper to headlamp at top | Dimension "E3" | mm | 4 (± 2, 0) |
| For picture, see | AR60.00-P-0700-01FR | |||
GAP DIMENSIONS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BE60.00-P-1007-01KA | Bumper to headlamp, side | Dimension "E2" | mm | 3 (± 1, 5) |
| For picture, see | AR60.00-P-0900-01FRX | |||
GAP DIMENSIONS
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BE60.00-P-1008-01KA | Bumper to headlamp at top | Dimension "E3" | mm | 4, 5 (± 2, 0) |
| For picture, see | AR60.00-P-0900-01FRX | |||
GAP DIMENSIONS
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1020-01IA | Protrusion of radiator trim/soft nose, engine hood | Dimension "B1" | mm | 1 (± 0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
