Remove And Install Lower Engine Compartment Lining - Ar61.20-P-1105FR

Model 257

Shown with engine 264 except code 481 (Underbody protection)

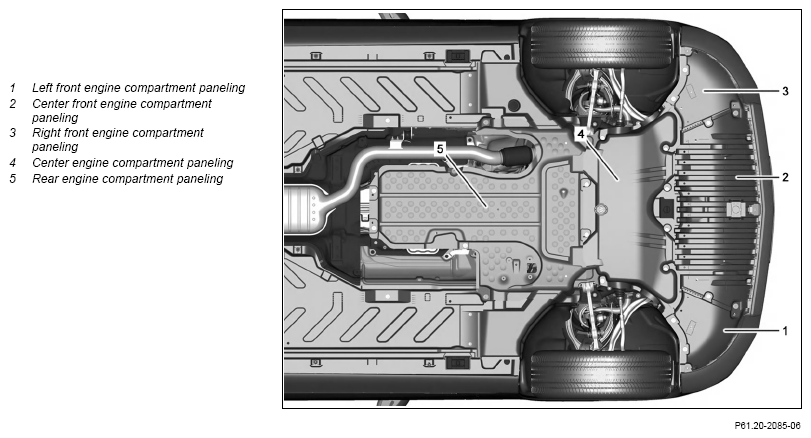

Fig 1: Engine Under Cover Panel Component Locations (Model 257 (Shown On Model 264 Except Code 481))

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from engine start by remote start function	Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes	AS00.00-Z-0024-01A
	Remove/install
1	Open hood.	Vehicles with remote start function
2	Raise vehicle.		AR00.60-P-1006A
3	Remove center engine compartment lining (4)	Model 257 with code 481 (Sump shield) Screw/bolt, under ride guard	*BA61.40-P-1001-01D
4	Remove left front engine compartment lining (1), center front engine compartment lining (2) right front engine compartment lining (3) or rear engine compartment lining (5).	Push left front engine compartment lining (1) and right front engine compartment lining (3) below center front engine compartment lining (2).
5	Install in the reverse order.
