Connect/Disconnect Diagnostic Unit - AD00.00-P-2000-06FR

Model 206

Model 223

Model 232

Model 257

Model 290

Model 293

Model 295

Model 297

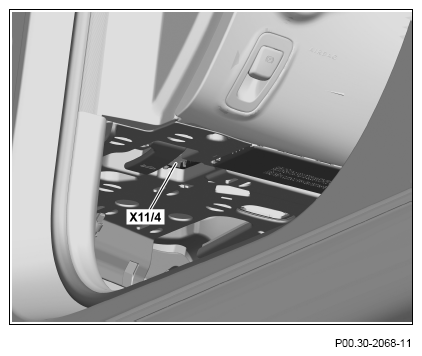

1. Connect diagnostic device to diagnostics connection (X11/4) in driver's footwell.

   Even after disconnecting the starter battery, the vehicle is still powered by the diagnostic device. When working on a de-energized vehicle, the diagnostic device must be disconnected from the vehicle.

2. Start XENTRY.
3. Select the model series in the menu via the path Selection → Brand → Product group → Vehicle.

   The work procedures are menu-assisted.

4. Disconnect diagnostic unit.
