Remove/Install Right Cylinder Head - AR01.30-P-5780MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

MODIFICATION NOTES

19.03.2021 Check relevant sealing surfaces of engine for unevenness, score marks, etc. Operation step 12.
11.05.2021 Information added. Operation step 10.

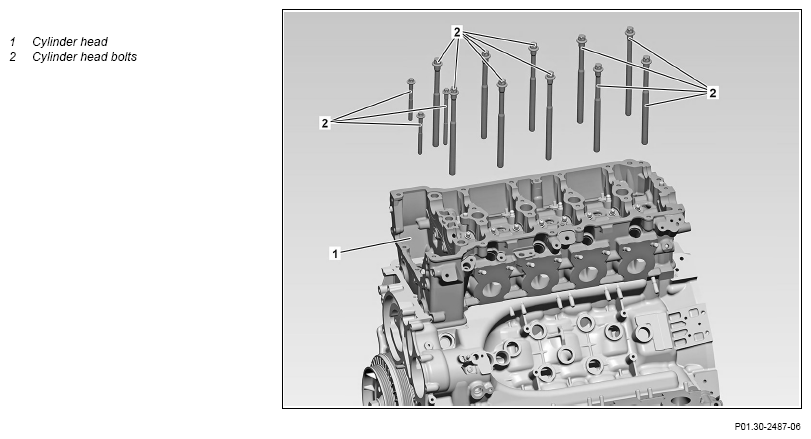

Fig 1: Right Cylinder Head Component Location - Model 205 With Engine 177
G14805225Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Notes on threaded connections with aluminum screws/bolts   AH00.00-P-0006-01RM
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Remove right secondary chain drive timing chain.   AR05.10-P-7614MNA
2 Remove right secondary chain drive tensioning rail.   AR05.10-P-8129MNA
3 Remove right secondary chain drive slide rail.   AR05.10-P-8481MNA
4 Remove both camshafts from cylinder head (1).   AR05.20-P-6992MNA
5 Remove right exhaust manifold.   AR14.10-P-3006MNA
6 Remove fuel line from front cylinder head (1).
7 Loosen cylinder head bolts (2) in stages in reverse order of tightening procedure and remove. Tightening procedure for cylinder head bolts AR01.30-P-5800-01MNA
    Tightening specifications for cylinder head bolts INSTALLATION IMPORTANT Observe tightening procedure and tightening specification.
INSTALLATION IMPORTANT Replace cylinder head bolts (2).
AR01.30-P-5800-07MNA
    TORQUE SPECIFICATION Bolt, cylinder head to crankcase *BA01.30-P-1001-01N
8 Remove cylinder head (1) from crankcase. General information on checking valves, valve seats and valve guides INSTALLATION IMPORTANT Fit a new cylinder head gasket on the crankcase. Pay attention to the pilot bushing for fixing the cylinder head (1) in place. AH05.30-P-1000-02SZ
9 Remove alternator bracket and starter wiring harness at cylinder head (1). Engine 176 in model 463 up to model year 2019
CLEAN Clean
10 Clean sealing surfaces on cylinder head (1) and crankcase. Remove sealant NOTES Do not use any sharp-edged tools or abrasive paper.
This may otherwise cause damage to sealing surfaces and, subsequently, engine and environmental damage.
NOTES Mechanical processing and/or cleaning of sealing surfaces by means of spot grinding with abrasive paper or other abrasive materials to remove sealing residue is not permitted.
Even the smallest amounts of corundum and grinding particles as well as wear debris that enter into the engine oil chamber, bearing points, or combustion chambers lead to damage and thus cause engine damage.
IMPORTANT The sealing surfaces must feel even after treatment. The sealing surfaces need not be metallic bright; thin layers of firmly adhering silicone sealant may remain.
IMPORTANT Cleaning is permitted only with the approved adhesive and sealant remover.
IMPORTANT Observe processing information from manufacturer.
AR01.00-P-0050-01A
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    Loctite 7200 *BR00.45-Z-1038-04A
11 Blow out threaded holes of cylinder head bolts (2) in crankcase with compressed air and clean away engine oil and coolant.
INSPECT Check
12 Check sealing surfaces at cylinder head (1) and crankcase for cracks and unevennesses and replace if necessary. INSTALLATION IMPORTANT A possible distortion of cylinder head (1) in longitudinal or transverse direction is offset again during reassembly by tightening cylinder head bolts (2).
IMPORTANT Check relevant sealing surfaces of engine for unevenness, score marks, etc.
If unevenness, score marks, etc. are present:
↓
Replace affected component.

13 Install in the reverse order.
14 Change engine oil and oil filter element.
REFER TO MAINTENANCE   Engine 176 in model 463.234/239/255 up to model year 2019 AP18.00-P-0101GGE
REFER TO MAINTENANCE   Engine 177 in model 205 AP18.00-P-0101D
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
15 Perform engine test run and check engine and fuel system for leak tightness.
CYLINDER HEAD

Number Designation Engine 176 Engine 177
BA01.30-P-1001-01N Bolt, cylinder head to crankcase M7 Nm 15 15
M11 Stage 1 Nm 40 40
Stage 2 ∠° 90 90
Stage 3 ∠° 90 90
Stage 4 ∠° 90 90
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1038-04A Loctite 7200 A 010 989 90 71
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
