Remove/Install Tensioning Rails On Secondary Chain Drive - AR05.10-P-8129MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205

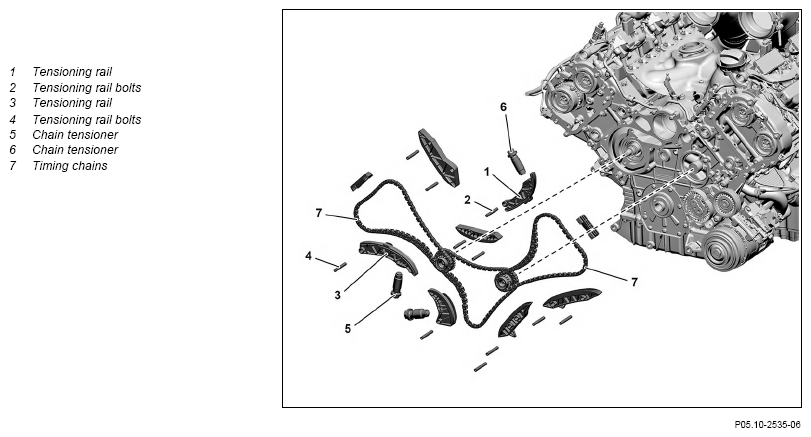

Shown on ENGINE 177
| Remove/install | |||
| 1 | Remove camshaft positioner of right intake camshaft. | To remove tensioning rail (1). | AR05.20-P-7204MNA |
| 2 | Remove camshaft positioner of left exhaust camshaft. | To remove the tensioning rail (3). | AR05.20-P-7204MNA |
| 3 | Remove tensioning rail bolt (2). | To remove tensioning rail (1). | |
| Fig 2 | |||
| Fig 3 | |||
| 4 | Remove tensioning rail bolt (4). | To remove the tensioning rail (3). | |
| Fig 2 | |||
| Fig 3 | |||
| 5 | Remove tensioning rail (1) or tensioning rail (3) upward. | ||
| 6 | Check tensioning rail (1) or tensioning rail (3) for wear, galling, and damage and replace tensioning rail (1) or tensioning rail (3) if necessary. | ||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check engine oil level and correct if necessary. | ||
| Engine 176 in model 463.234/239/255 up to model year 2019 | AP18.00-P-0101GGE | ||
| Engine 177 in model 205 | AP18.00-P-0101D | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run and check engine in terms of leak tightness while engine is running |
