Remove/Install Slide Rails On Secondary Chain Drive - AR05.10-P-8481MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Shown on ENGINE 177
| Remove/install | |||
| 1 | Remove right cylinder head cover. | AR01.20-P-5012MNA | |
| 2 | Remove left cylinder head cover. | AR01.20-P-5013MNA | |
| 3 | Remove camshaft positioner for right exhaust camshaft. | AR05.20-P-7204MNA | |
| 4 | Remove camshaft positioner for left intake camshaft. | AR05.20-P-7204MNA | |

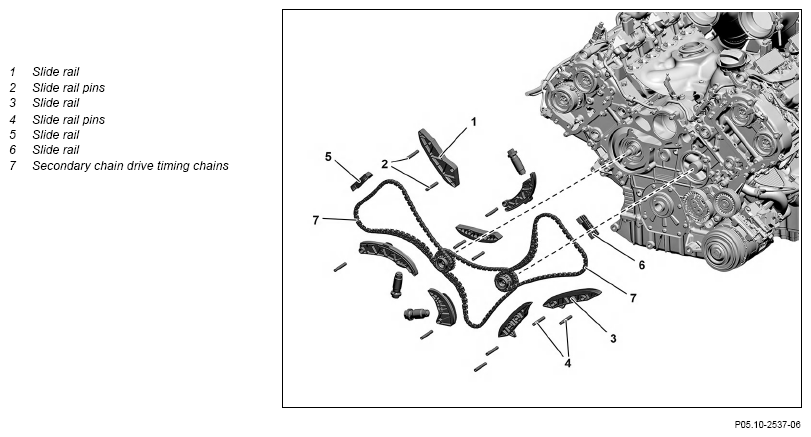

| 5 | Remove slide rail pins (2). | Fig 2 | |
| Fig 3 | |||
| 6 | Remove slide rail pins (4). | Fig 2 | |
| Fig 3 | |||
| 7 | Pull out slide rail (1) and slide rail (3) upward. | ||
| 8 | Unclip slide rail (5) at right cylinder head cover. | ||
| 9 | Unclip slide rail (6) at left cylinder head cover. | ||
| 10 | Check slide rails (1, 3, 5, 6) for damage. | If damage occurs: ↓ Replace slide rails (1, 3, 5, 6). |
|
| 11 | Install in the reverse order. | ||
| Check | |||
| 12 | Check engine oil level and correct if necessary. | ||
| Engine 176 in model 463.234/239/255 up to model year 2019 | AP18.00-P-0101GGE | ||
| Engine 177 in model 205 | AP18.00-P-0101D | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Perform engine test run and check engine in terms of leak tightness while engine is running |
