Retrofit COMAND Online Incl. DVD Changer - AN82.85-P-0008LWR

Model 205.4

with code 355 (Preinstallation for retrofitting navigation system)

with code 3U1 (Head unit europe/CIS-states/Monoglei)

with code 522 (Audio 20 radio)

except code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)

except code 625 (Australia specification)

except code 822 (Addit. parts for South African vehicles)

except code 830 (China version)

except code 835 (South Korea version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

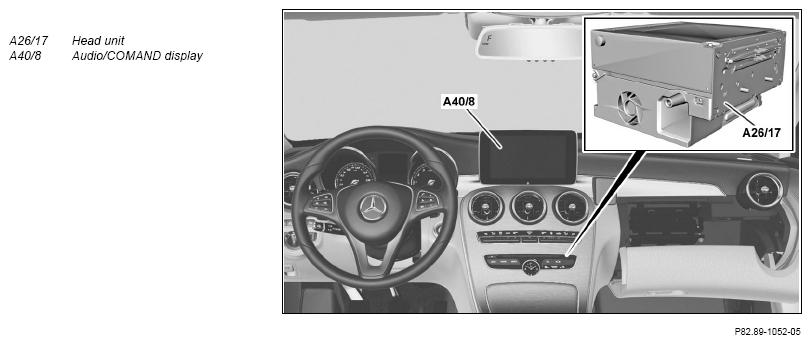

1	Remove head unit (A26/17).
		The head unit (A26/17) is no longer required.	AR82.85-P-1100LW
2	Remove upper control panel control unit.
		The upper control panel control unit is no longer required.	AR54.21-P-1262LW
3	Remove audio/COMAND display (A40/8).
		The Audio/COMAND display (A40/8) is no longer required.	AR82.60-P-7722LW
4	Remove Audio/COMAND control panel.	Model 205.4 except code 448 (Touchpad)
			AR54.21-P-0500LW
5	Remove glove compartment.
			AR68.10-P-1400LW

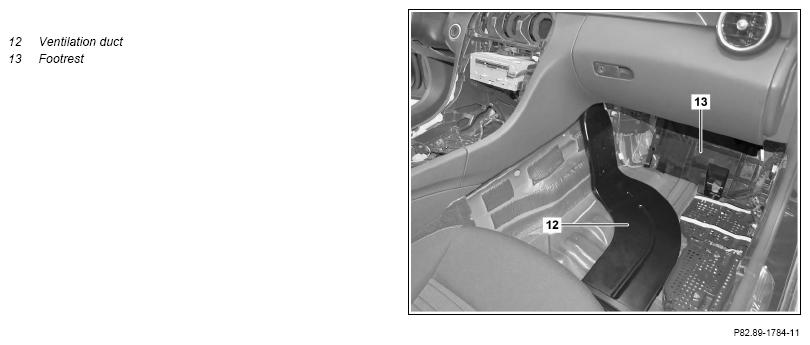

6	Remove floor covering at front left.	Model 205.4 except code 448 (Touchpad)
			AR68.20-P-2050LW
	Install
7	Install WiFi antenna for COMAND.		AN82.85-P-0005-05LW
8	Retrofit wiring harness for touchpad.	Model 205.4 except code 448 (Touchpad)	AN82.60-P-0017-01LW
9	Retrofit CAN wiring harness.	Model 205.4 except code 448 (Touchpad)	AN82.60-P-0017-02LW
10	Retrofit touchpad.	Model 205.4 except code 448 (Touchpad)	AN82.60-P-0017-03LW
11	Install new audio/COMAND display (A40/8).
			AR82.60-P-7722LW
12	Install new upper control panel control unit.
			AR54.21-P-1262LW
13	Install new head unit (A26/17).
			AR82.85-P-1100LW
14	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
15	Delete special equipment from on-line vehicle data card.	Code 522 (Audio 20 radio), Code 355 (Preinstallation for navigation retrofit), Code 357 (Card navigation)
16	Enter special equipment into online vehicle data card.	Model 205.4 except code 448 (Touchpad) Code 448 (Touchpad)  Code 531 (COMAND APS), Code 814 (DVD changer), Code 11U (Remote Online)
17	Attach COMAND Online incl. DVD changer retrofitted as per note under field organization text to DG 54 and DG 82.		AN82.85-P-0008LWR
18	Connect vehicle diagnosis system and select vehicle through vehicle identification number (VIN).
			AD00.00-P-2000-04B
19	Perform variant coding for retrofitting of special equipment.		AN82.61-P-0001-05LW
20	Disconnect diagnostic system.
			AD00.00-P-2000-04B
	Check
21	Perform function test.	See Owner's Manual.
