Remove And Install Rear Roof Frame - Ar65.20-P-1008MFA

Model 177.0

Model 247.0/6/7

Shown on model 177.0 with code 413

(panoramic sliding sunroof)

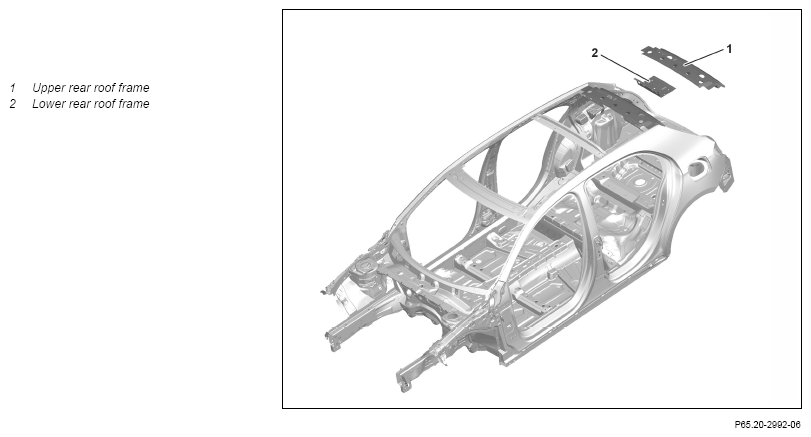

Fig 1: Upper And Lower Rear Roof Frame Component Locations (Model 177.0)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.
3.1	Remove center roof paneling.	Model 177.0, 247.0/6/7 except code 413 (Panoramic sliding sunroof/glass roof)
			AR65.10-P-1000MFA
3.2	Remove roof paneling rear section.	Model 177.0, 247.0/6/7 with code 413 (Panoramic sliding sunroof/glass roof)	AR65.10-P-5760MFA
4	Remove upper rear roof frame (1) and lower rear roof frame (2).		AR65.20-P-1008-01MFA
	000 588 00 84 00 Heat gun		WS54.00-P-0049B
		Commercially available tools  Round wire brush Spot weld milling machine Wet/dry vacuum cleaner
		1K-zinc dust paint	*BR00.45-Z-1056-07A
5	Prepare upper rear roof frame (1) and lower rear roof frame (2).		AR65.20-P-1008-02MFA
		Commercially available tools  Round wire brush
		1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
	Risk of explosion  and poisoning caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes	Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only.	AS00.00-Z-0016-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General notes on welding		AH60.00-P-0005-01N
6	Install lower rear roof frame (1) and upper rear roof frame (2).		AR65.20-P-1008-03MFA
		Commercially available tools  Spot welder
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
7	Clean weld joints and sheet metal flanges with round wire brush.	Commercially available tools  Round wire brush
8.1	Install center roof paneling.	Model 177.0, 247.0/6/7 except code 413 (Panoramic sliding sunroof/glass roof)
			AR65.10-P-1000MFA
8.2	Install roof paneling rear section.	Model 177.0, 247.0/6/7 with code 413 (Panoramic sliding sunroof/glass roof)
			AR65.10-P-5760MFA
9	Remove spark protection blankets.
10	Clean repair area.	Commercially available tools  Wet/dry vacuum cleaner
11	Prime repair area using primer filler
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting	Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal.	AH98.00-P-0003-01A
12	Seal seam after repair.		AR97.10-P-4000MFA
13	Paint repair areas and adjacent surfaces.
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting		AH98.00-P-0003-01A
		Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.
14	Supplement cavity preservation.	Cavity preservation following repair work	AR97.20-P-1500MFA
15	Install detachable parts in the area of the repair point.
