Install Rear Roof Frame - Ar65.20-P-1008-03MFA
Model 177.0
Model 247.0/6/7
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.
The following operation steps are shown on model 177.0.

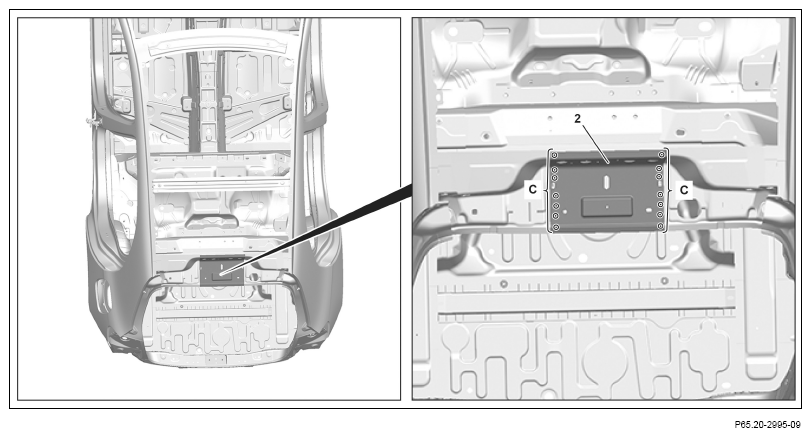

- Install the lower rear roof frame (2), fit it and fix it in place.
- Lower rear roof frame (2)
(areas C).
- Install upper rear roof frame (1) and fit it.
- Remove the upper rear roof frame (1).

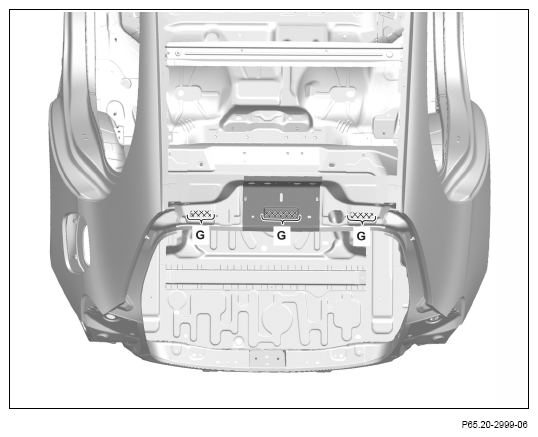

- Apply 2-component adhesive in cross-hatched areas to the body (G areas).
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of adhesive.

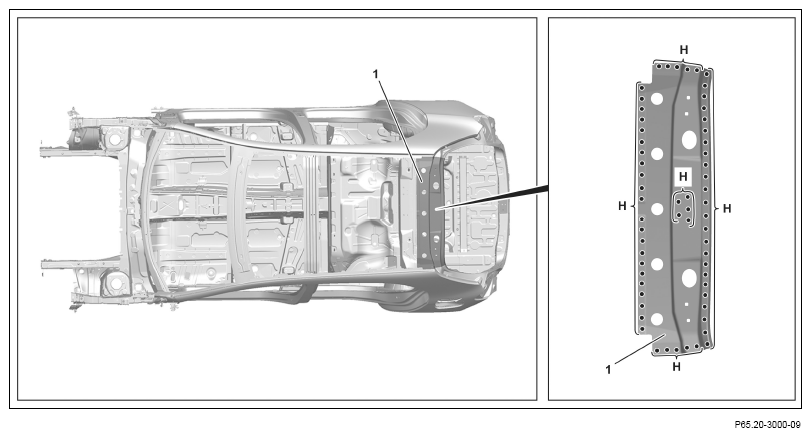

- Install upper rear roof frame (1) and fix it in place.
- Upper rear roof frame (1)
