Remove/Install E-Call Russia Control Unit - AR82.95-P-0050NKA

Model 117, 156, 166.0, 172, 176, 205, 231, 246, 253, 292

with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))

with code E64 (E-Call RUSSIA (GLONASS))

Model 117, 190, 217, 218, 222, 246

with code 6U4 (Mercedes-Benz E-Call emergency call system Russia (GLONASS))

Model 166.8

with code E64 (E-Call RUSSIA (GLONASS))

Model 176, 253

with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))

except code E64 (E-Call RUSSIA (GLONASS))

Model 463

up to model year 2019

with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))

with code E64 (E-Call RUSSIA (GLONASS))

MODIFICATION NOTES

05.05.2017 When replacing E-call Russia control unit, replace the battery too. Added to operation step 10.

Shown on model 166

G12941513Courtesy of MERCEDES-BENZ USA

Shown on model 166

G12941514Courtesy of MERCEDES-BENZ USA

Shown on model 166

G12941515Courtesy of MERCEDES-BENZ USA
G12941516Courtesy of MERCEDES-BENZ USA
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Remove overhead control panel control unit. Model 218 AR82.20-P-1000CW
    Model 190 AR82.20-P-1000RG
    Model 231 AR82.20-P-1000RK
    Model 172.4 AR82.20-P-1000W
    Model 292 AR82.20-P-1100GQC
    Model 166 AR82.20-P-1100GQ
    Model 117, 156, 176, 246 AR82.20-P-1000NKB
    Model 205.4 AR82.20-P-1000LWR
    Model 205 (except 205.4), 217.3, 222, 253 AR82.20-P-1000LF
    Model 217.4 AR82.20-P-1000LCA
    Model 463 up to model year 2019
NOTES Pay particular attention to the cleanliness of the tools used. Otherwise dirt may appear on the trim parts.		 AR82.20-P-1000GW
2 Remove inside rearview mirror cover. Models 205, 253 AR68.40-P-0001LW
    Model 222 AR68.40-P-0001LF
    Model 217 AR68.40-P-0001LC
    Model 231 AR68.40-P-0001RK
    Model 172.4 AR68.40-P-0001W
    Model 190 AR68.40-P-0001RG
    Model 166, 292 AR68.40-P-0001GQA
    Model 117, 156, 176, 246 AR68.40-P-0001NKB
    Model 218
NOTES Pay particular attention to the cleanliness of the tools used. Otherwise dirt may appear on the trim parts.		 AR68.40-P-0001SX

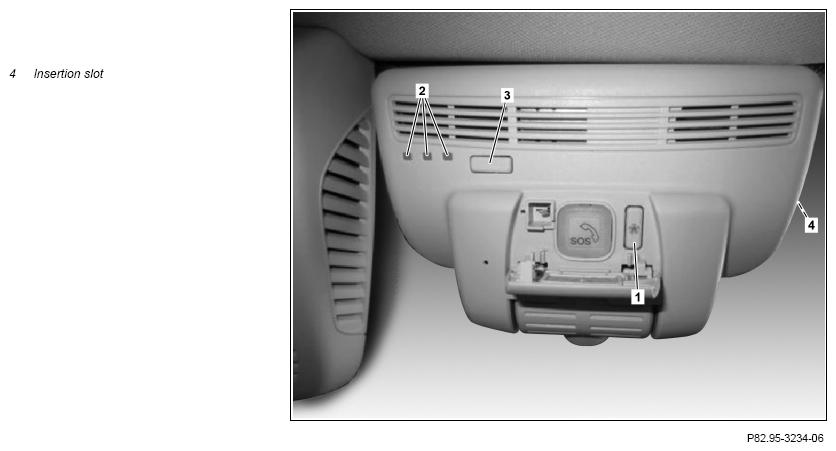

3 Remove micro SD card from insertion slot (4) on the side and store it in a secure location. When replacing E-Call Russia control unit (N167).
IMPORTANT When slight pressure is applied to the back of the micro SD card, it slides out of the housing a short distance.

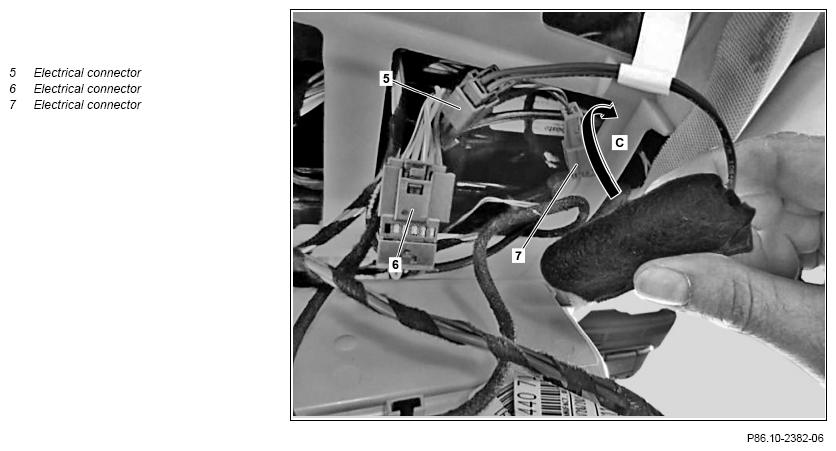

4 Release and disconnect electrical connectors (5), (6) and (7) from E-Call Russia control unit (N167).
5 Detach E-Call Russia control unit (N167) from windshield. IMPORTANT Secure E-Call Russia control unit (N167) against falling down.
6 Carefully route electrical wiring harness of E-Call Russia control unit (N167) in vicinity of inside rearview mirror outwards towards E-Call Russia control unit (N167).
7 Remove residue from old adhesive film on the windshield and E-Call Russia control unit (N167). IMPORTANT When replacing the E-Call Russia control unit (N167) it is sufficient to remove the residue of the adhesive foil from the windshield.
INSTALLING Install
8 Attach new adhesive foil for E-Call Russia control unit (N167) on windshield.   AR82.95-P-0050-01NKA
    NOTES The new adhesive foil must dry completely. Otherwise adhesion problems can occur. Cleaner *BR00.45-Z-1025-04A
9 Remove adhesive label with WLAN password from electrical wiring harness of E-Call Russia control unit (N167). Attach the sticker with the WLAN password on the reverse of the user manual of the E-Call Russia control unit (N167) in the white field. When replacing E-Call Russia control unit (N167).
    NOTES Place the operator's manual for the E-Call Russia control unit (N167) with new adhesive label immediately into the glove compartment. Dispose of old operator's manual for the E-Call Russia control unit (N167).
Otherwise there is a danger that they may be mixed up.
10 Replace E-Call Russia control unit (N167). When replacing E-Call Russia control unit (N167).
Model 117, 156, 166, 176, 190, 205, 217, 218, 222, 246, 253, 292, model 463 up to model year. 2019		 AR82.95-P-0051NKA
    Models 172, 231 AR82.95-P-0051RK
11 Route electrical wiring harness of E-call Russia control unit (N167) above the roof lining in the area of the inside rearview mirror to the cutout for the overhead control panel control unit. NOTES Make sure that the battery insulation is correctly installed and that electrical wiring harness is correctly routed. Stow the electrical wiring harness as far as possible above the roof lining. To prevent noise during driving operation.
CLEAN Clean
12 Clean top side of the control unit E-Call Russia (N167). NOTES Ensure that no fingerprints are present in the area of the bonding surface. The area between the bonding surfaces should also be free of dust, oil, grease, wax and other adhesive components or dirt residues. To prevent adhesion problems.
INSPECT Check

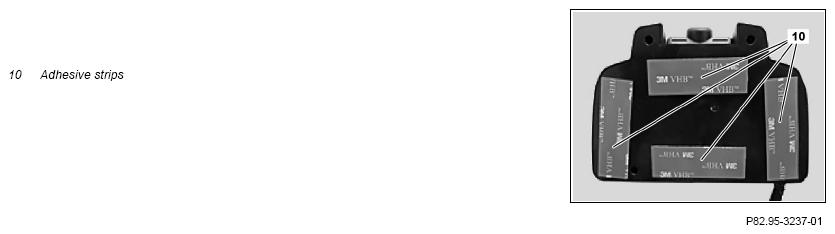

13 Check position, condition and the number of adhesive strips (10) on the top side of the E-Call Russia control unit (N167). Are new adhesive strips (10) needed?
↓
Continue with operation step 12.
14 Detach foil from adhesive strips (10) on E-Call Russia control unit (N167). NOTES Avoid longer waiting times after pulling off the protective foil. To avoid getting the adhesive strips (10) dirty.

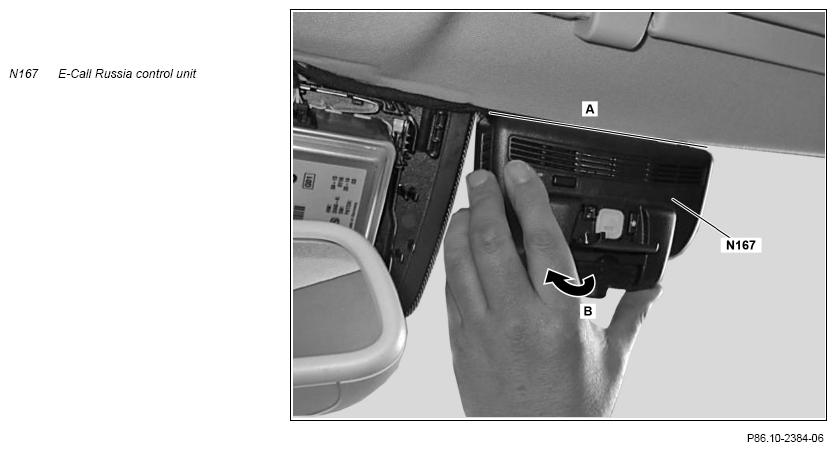

15 Position E-Call Russia control unit (N167) on upper edge of windshield (Line A) and align parallel with windshield. Then hold it against the adhesive foil of the windshield (arrow B) and press it firmly on the area of the adhesive strips NOTES When doing so, press on the E-Call Russia control unit (N167), but at the side only. Otherwise, the E-Call Russia control unit (N167 will be detached from the windshield.
16 Connect electrical connectors (5), (6) and (7) of the E-Call Russia control unit (N167) to the associated wiring harness. NOTES Ensure the proper routing of the electrical wiring harness, the electrical connectors (5), (6) and (7), as well as the insulation of the battery. Stow the electrical wiring harness as far as possible above the roof lining. To prevent noise during driving operation.
IMPORTANT The emergency call system button is activated as soon as the E-Call Russia control unit (N167) is connected to the vehicle. Make sure you avoid pressing this button unintentionally after this operating step.
17 Install cover of inside rearview mirror. Models 205, 253 AR68.40-P-0001LW
    Model 222 AR68.40-P-0001LF
    Model 217 AR68.40-P-0001LC
    Model 231 AR68.40-P-0001RK
    Model 172.4 AR68.40-P-0001W
    Model 190 AR68.40-P-0001RG
    Model 166, 292 AR68.40-P-0001GQA
    Model 117, 156, 176, 246 AR68.40-P-0001NKB
    Model 218 AR68.40-P-0001SX
18 Install overhead control panel control unit. Model 218 AR82.20-P-1000CW
    Model 190 AR82.20-P-1000RG
    Model 231 AR82.20-P-1000RK
    Model 172.4 AR82.20-P-1000W
    Model 292 AR82.20-P-1100GQC
    Model 166 AR82.20-P-1100GQ
    Model 117, 156, 176, 246 AR82.20-P-1000NKB
    Model 205.4 AR82.20-P-1000LWR
    Model 205 (except 205.4), 217.3, 222, 253 AR82.20-P-1000LF
    Model 217.4 AR82.20-P-1000LCA
    Model 463 up to model year 2019 AR82.20-P-1000GW
INSPECT Check
19 Check alignment of E-call Russia control unit camera (N167), correct if necessary.   AR82.95-P-0050-02NKA
  Initial startup
20 Perform initial startup of E-Call Russia control unit (N167). When replacing E-Call Russia control unit (N167).
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 117, 156, 166, 172, 176, 218, 231, 246, 292, model 463 up to model year. 2019 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 190, 205, 217, 222, 253, model 463 as o model year 2019 f AD00.00-P-2000-04B
21 Read out ICCID using XENTRY Diagnosis and check against ICCID in VeDoc. When replacing E-Call Russia control unit (N167).
Model 117, 156, 166, 172, 176, 218, 231, 246, 292, model 463 up to model year. 2019		 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 190, 205, 217, 222, 253, model 463 as o model year 2019 If they do not match.
↓ Continue with operation step 19.		 AD00.00-P-2000-04B
22 Create a "TIPS case requesting activation of the SIM card. When replacing E-Call Russia control unit (N167).
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 117, 156, 166, 172, 176, 218, 231, 246, 292, model 463 up to model year. 2019 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 190, 205, 217, 222, 253, model 463 as o model year 2019 EC Enter the following information: FIN, brand, color of the vehicle (as described in the vehicle title of ownership) and ICCID. f AD00.00-P-2000-04B
23 Insert the micro SD card that was removed at the start back into the insertion slot (4). When replacing E-Call Russia control unit (N167) and if available.
IMPORTANT The micro SD card only fits into the device in one direction. The card is inserted to the end against small resistance, then snaps in place and is flush with the housing.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1025-04A Cleaner A 005 989 19 71
