Remove/Install Battery For E-Call Russia Control Unit - AR82.95-P-0051RK
Model 172
with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))
with code E64 (E-Call RUSSIA (GLONASS))
Model 231
with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))
with code E64 (E-Call RUSSIA (GLONASS))
Shown on model 172

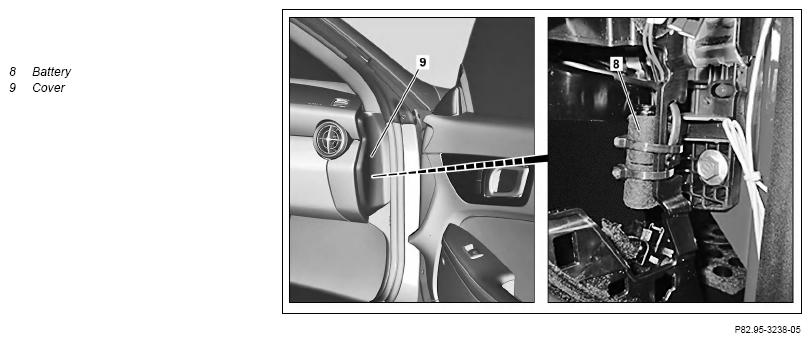

Fig 1: Battery For E-Call Russia Control Unit Components Location - Model 172 With Code 9U1, E64 (Shown On Model 231)
Shown on model 231
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove cover (9) of instrument panel on front passenger side | To prevent soiling the trim parts. |
|
| Fig 2 | |||
| 3 | Detach battery (8) from instrument panel strut | Ensure proper routing of the electrical wiring harness and electrical connectors as well as proper insulation of the battery (8). To prevent noises during driving operation. |
|
| 4 | Expose electrical wiring harness of battery (8) up to electrical connector | Route electrical wiring harness along fastening points loosened during removal. |
|
| 5 | Release and disconnect electrical connector of battery (8) | ||
| 6 | Wrap felt tape around battery (8) | If installing a new battery (8). | |
| 7 | Install in the reverse order | ||
| Check | |||

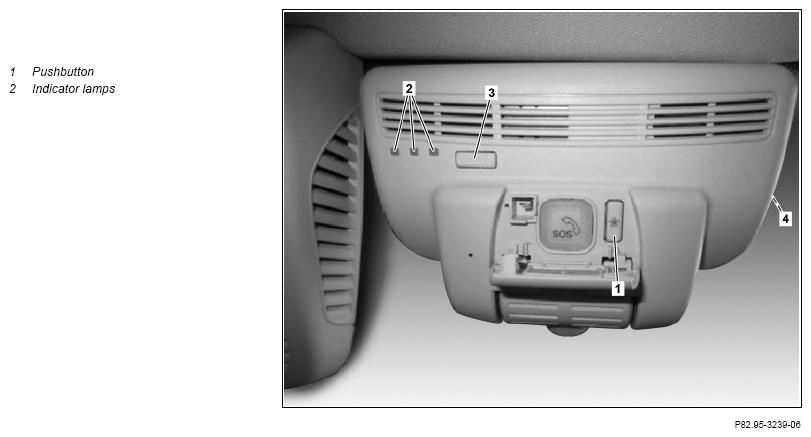

| 8 | To activate the self-test of the eCall Russia (GLONASS) control unit (N167), press and hold button (1) for approximately 1 s | If at the end of the self-test all indicator lamps (2) and the SOS button light steadily for 5 s, this means that the self-test was successful. |
