Attach Adhesive Foil For E-Call Russia Control Unit To Windshield - AR82.95-P-0050-01NKA

Model 117, 156, 166.0, 172, 176, 205, 231, 246, 253, 292

with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))

with code E64 (E-Call RUSSIA (GLONASS))

Model 117, 190, 217, 218, 222, 246

with code 6U4 (Mercedes-Benz E-Call emergency call system Russia (GLONASS))

Model 166.8

with code E64 (E-Call RUSSIA (GLONASS))

Model 176, 253

with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))

except code E64 (E-Call RUSSIA (GLONASS))

Model 463

up to model year 2019

with code 9U1 (E-Call RUSSIA preinstallation (GLONASS))

with code E64 (E-Call RUSSIA (GLONASS))

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

Preparatory work

The foil adheres properly to the subsurface after approx. 48 h. Up to that point, do not perform any adhesion tests or expose the bonded foils to any major stress (e.g. window cleaning).

Ensure that no fingerprints are present in the area of the bonding surface. The bonding surfaces should be free of dust, oil, grease, wax, dirt and other adhesive components or dirt residues.

Bonding must take place at subsurface and ambient temperatures of 18°C to 25°C.

To prevent adhesion problems.

Prepare a water mixture with low surface tension.
Tap water, agent reducing the surface tension of the water, no concentrate, no soap or detergent containing enzymes. Mixing ratio: 3 drops of agent reducing the surface tension of the water to 1 l of water; (water hardness 15 to 18) - avoid higher concentrations. To ensure repositioning of the adhesive foil on the windshield. To prevent loss of adhesive force.
Protect the vehicle interior from fluids running down or dripping in the area of the windshield.
1. 3.1 Models 117, 156, 166, 176, 205, 217, 218, 222, 246, 253, 292, 463
  Clean the windshield on the passenger side next to the inside rear-view mirror using a soft and lint-free cloth.
2. 3.2 Model 190
  Clean the windshield on the driver side next to the inside rear-view mirror using a soft and lint-free cloth.
Inspect the adhesive foil for damage.
Do not use damaged foils.

Preparing the adhesive foil
Place the adhesive foil with the backing side (carrier) facing upward onto a level surface.
Pull off the backing at an angle of 180° from the adhesive foil.
Touch on the sides only.

To prevent fingerprints on the bonding surface.
Spray low surface tension water onto the adhesive foil.
Avoid longer waiting times after pulling off the protective foil.

Applying the adhesive foil on the windshield

For proper alignment, either use an assistant who looks from the outside or a previously prepared template.

The black, dotted area of the windshield can be used to help with orientation here. Half of the last row of dots must still be visible.

Do not press down on the adhesive foil with your fingers or hands.
Clean the windshield again in the previously cleaned area.

9.1 Models 117, 156, 166, 172, 205, 217, 218, 222, 231, 246, 253, 292, 463

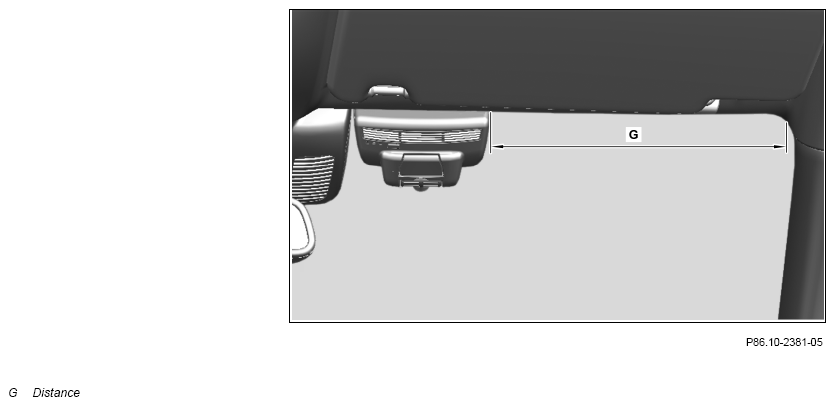

Apply the adhesive foil with the distance "G" to the A-pillar on the passenger side and align.

9.2 Model 190

Apply the adhesive foil with the distance "G" to the A-pillar on the driver side and align.

Courtesy of MERCEDES-BENZ USA

Dimension "G":

Models 117, 156, 176 275 mm
On vehicles with a multifunction camera, the installation is done directly at the housing of the camera cover.
Model 246 246 mm
On vehicles with a multifunction camera, the installation is done directly at the housing of the camera cover.
Model 205.0/2 230 mm
Model 205.3/4 197 mm
Align the left side of the housing with the bend at the front end of the headliner.
Model 253 250 mm
Model 222 280 mm
The installation is done directly at the housing of the camera cover.
- Model 217 290 mm
The installation is done directly at the housing of the camera cover.
Model 218 235 mm
Model 172 315 mm
On vehicles with a multifunction camera, the installation is done directly at the housing of the camera cover.
Model 231 266 mm
On vehicles with stereo camera, the installation is done directly adjacent to the camera cover.
Model 190 250 mm
Installation on the driver side.
Model 166 310 mm
On vehicles with a multifunction camera, the installation is done directly at the housing of the camera cover.
Model 292 320 mm
On vehicles with a multifunction camera, the installation is done directly at the housing of the camera cover.
Model 463 335 mm

Use a squeegee to wipe off excess fluid and air bubbles from the center of the adhesive foil towards the outside, using overlapping movements.
Collect any fluid escaping at the sides. To protect the vehicle interior against staining.

Have any air bubbles shown by an assistant from the outside.

Before the next working step: Let the adhesive foil dry for a few minutes.
Pull off the transfer film at an angle of 180°.
Press on the adhesive foil again using the squeegee, especially at the corners and edges.
Let the adhesive foil dry completely.

Proceed with care.

To ensure that the bonded foil does not come off again.
