Remove/Install Headliner - AR68.30-P-4300LFN

Model 222.1

Model 222.9

except code Z07 (B7 rumoring on special protection version)

Shown on vehicle with code 413 (Panoramic sliding sunroof) up to model year 2018

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with code 413 (Panoramic sliding sunroof) up to model year 2018

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with code 413 (Panoramic sliding sunroof) up to model year 2018

Shown with code 811 (Advanced sound system), code 413 (Panoramic sliding sunroof) up to model year 2018

Courtesy of MERCEDES-BENZ USA

Shown on vehicle as of model year 2018

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove sun visors		AR68.60-P-5480NKB
2	Remove handle from roof		AR68.30-P-4330NKB
3	Remove paneling on C-pillars	Model 222.1	AR68.30-P-4490LF
		Model 222.9 except code Z07 (B7 rumoring on special protection version)	AR68.30-P-4490LFA
4	Remove headliner service flap (7)
5	Remove paneling from B-pillars		AR68.30-P-4700LF
6	Remove paneling from A-pillars		AR68.30-P-4050LF
7	Remove cover from inside rearview mirror

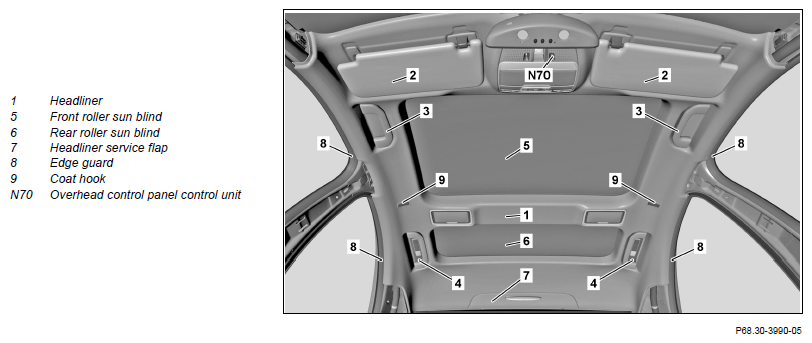

8	Open front roller sunblind (5) and rear roller sunblind (6)	Model 222.1 with code 413 (Panoramic sliding sunroof/glass roof) Model 222.9 except code Z07 (B7 rumoring on special protection version)

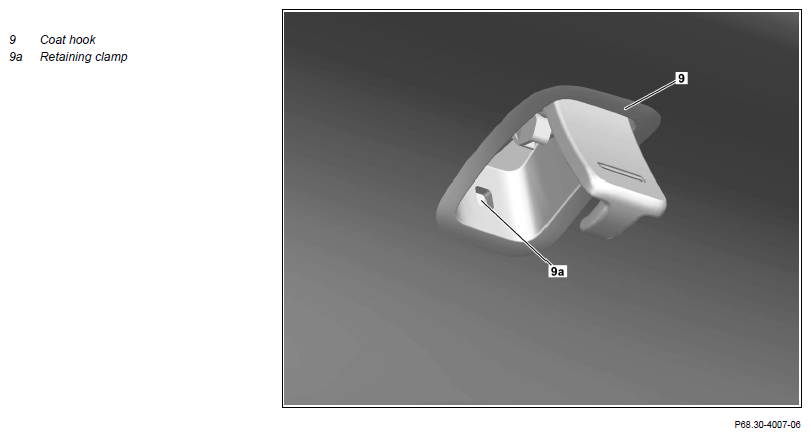

9	Release retaining clips (9a) and remove coat hooks (9)	Model 222.1 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.1 with code 413 (Panoramic sliding sunroof/glass roof) Model 222.9 except code Z07 (B7 rumoring on special protection version)
10	Fully move front passenger seat to rear
11	Bring front passenger seat into fully reclined position
12	Remove overhead control panel control unit (N70)		AR82.20-P-1000LF
13	Detach edge guard (8) in left area of roof lining (1)
14	Detach edge guard (8) in right area of roof lining (1)
15	Remove rear air conditioner housing	Model 222.1 with code 582 (Air conditioning, rear) Model 222.9 with code 582 (Air conditioning, rear) except code Z07 (B7 rumoring on special protection version)
			AR83.50-P-9020LF
16	Remove glove compartment		AR68.10-P-1400LF
17	Remove driver seat		AR91.10-P-1000LF

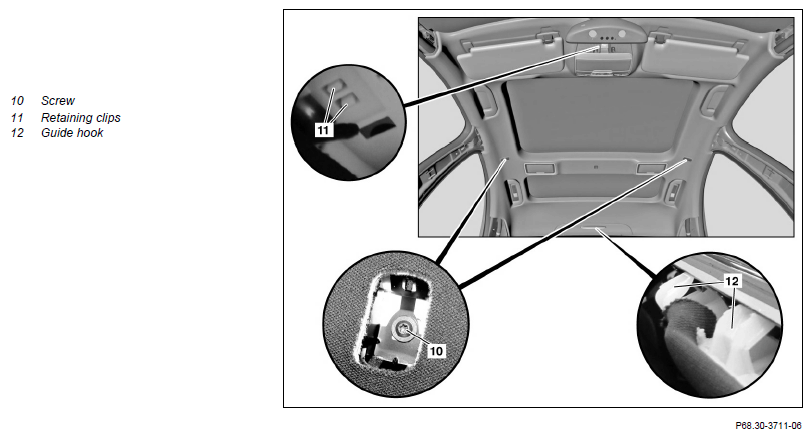

18	Remove screws (10)	Model 222.1 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.1 with code 413 (Panoramic sliding sunroof/glass roof) Model 222.9 except code Z07 (B7 rumoring on special protection version)
19	Remove center speaker in roof lining (1)	Model 222.1 up to model year 2018 with code 811 (High-End sound system) Model 222.9 up to model year 2018 with code 811 (High-End sound system) except code Z07 (B7 rumoring on special protection version)
			AR82.62-P-7876LF

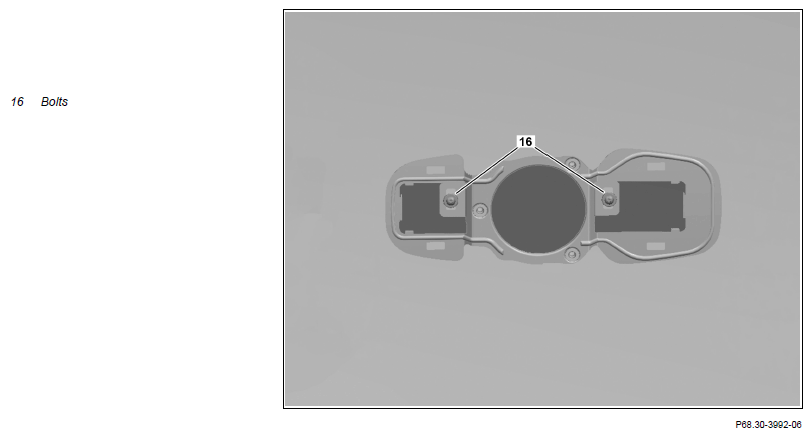

20	Remove screws (16)	Model 222.1 up to model year 2018 with code 811 (High-End sound system) Model 222.9 up to model year 2018 with code 811 (High-End sound system) except code Z07 (B7 rumoring on special protection version)
21	Unclip retaining clips (11)

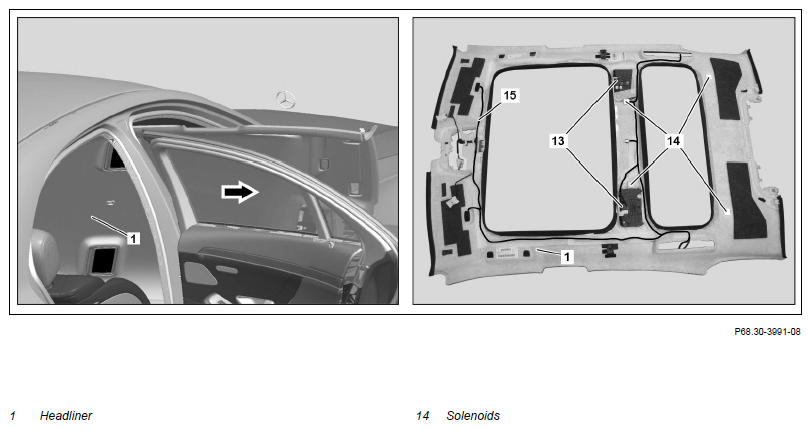

22	Detach roof lining (1) from roof paneling	Model 222.1 with code 413 (Panoramic sliding sunroof/glass roof) Model 222.9 except code Z07 (B7 rumoring on special protection version) Detach roof lining (1) at panoramic sliding sunroof frame. Roof lining (1) is secured with four magnets (14) to roof paneling. Helper required.
23	Slide roof lining (1) toward rear until guide hooks (12) are guided out of roof paneling mounts	Helper required.

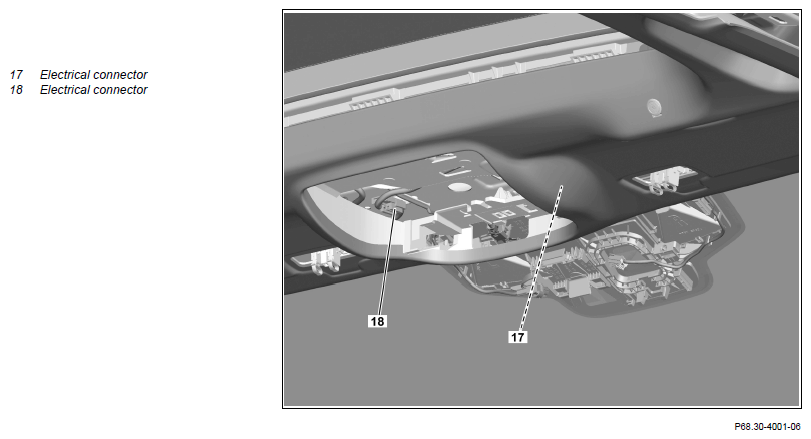

24	Release and disconnect electrical connection (17)
25	Release and disconnect electrical connection (18)	Model 222.1 as of model year 2018 Model 222.9 as of model year 2018 except code Z07 (B7 rumoring on special protection version)
26	Guide headliner (1) to passenger side in direction of arrow	Helper required.
27	Modify detachable parts of roof lining (1)	When replacing roof paneling (1).
			AR68.30-P-4304LFM
28	Install in the reverse order
