Remove/Install Rear Air Conditioner Housing - AR83.50-P-9020LF

Model 222.0/1/9

With Code 582 (Air conditioning, rear)

Fig 1: Rear Air Conditioner Housing Components Location - Model 222.1 With Code 582 (Except Code 1U6)

Courtesy of MERCEDES-BENZ USA

Shown On rear air conditioner housing Except Code 1U6 (Refrigerant R744)

Shown On rear air conditioner housing With Code 1U6 (Refrigerant R744)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
	Remove/install
1	Drain air conditioning system		AR83.30-P-1760LF
2	Remove right underfloor paneling		AR61.30-P-1001LF
3	Remove right fender liner from front fender		AR88.10-P-1300LF
4	Drain coolant	Model 222 with engine 157, 276.9, 278, 642 with code 582 (Air conditioning, rear)	AR20.00-P-1142LF
Notice	Notes on coolant	Model 222 with engine 157, 276.9, 278, 642 with code 582 (Air conditioning, rear)	AH20.00-P-2080-01KOA

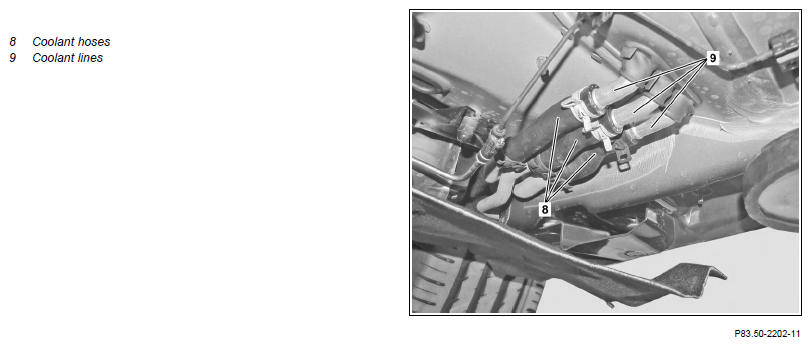

5	Remove coolant hoses (8) from coolant lines (9)	Collect escaping coolant in a suitable vessel.
6	Move driver and front passenger seat to the very front
7	Remove center console	Model 222 up to model year 2018 with code 582 (Air conditioning, rear)	AR68.20-P-2000LF
		Model 222 as of model year 2018 with code 582 (Air conditioning, rear)	AR68.20-P-2000LFM

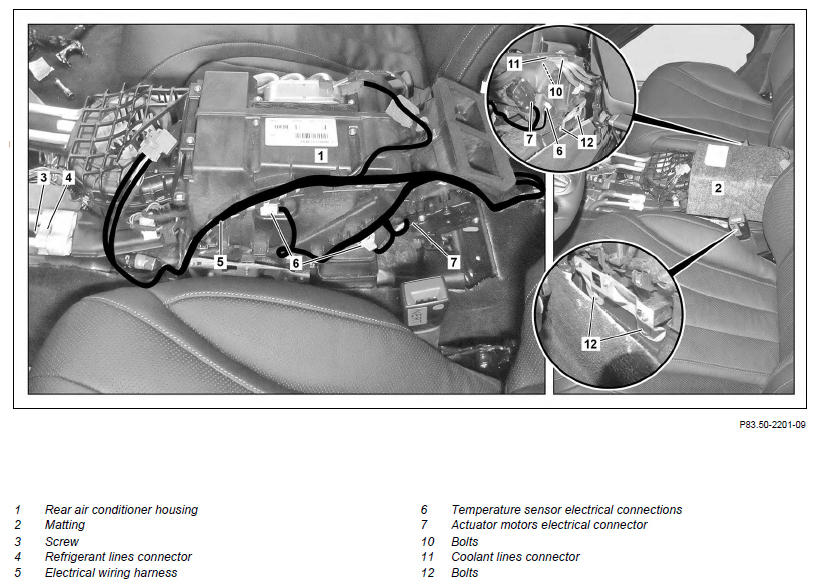

8	Remove matting (2) from rear air conditioner housing (1)
9	Expose wiring harness (5) at rear air conditioner housing (1)
10	Disconnect actuator motor electrical connectors (7) and temperature sensor electrical connectors (6)

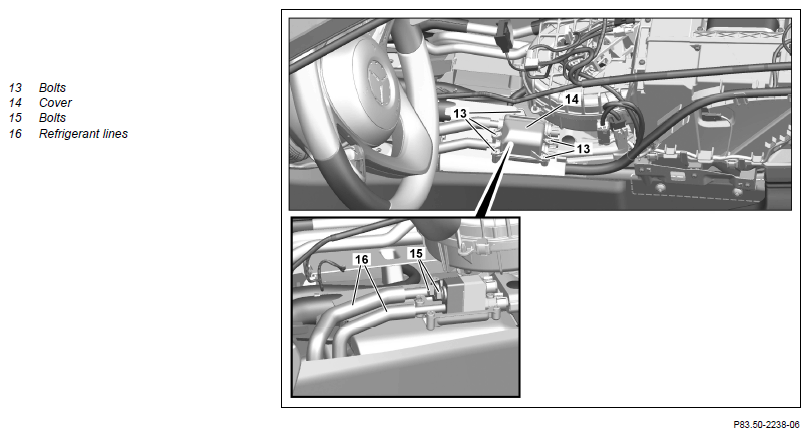

11	Remove screws/bolts (13) and remove cover (14)	Model 222 with code 1U6 (R744 refrigerant) with code 582 (Air conditioning, rear)
12.1	Remove screw/bolt (3) and disconnect refrigerant lines connector (4) with refrigerator lines	Model 222 with code 582 (Air conditioning, rear) except code 1U6 (R744 refrigerant) :  Replace sealing rings of refrigerant lines.
		Bolt/nut, refrigerant line to inner heat exchanger	*BA83.30-P-1004-01P
12.2	Remove screws/bolts (15) and pull off clock spring contact (16)	Model 222 with code 1U6 (R744 refrigerant) with code 582 (Air conditioning, rear) :  Do not use any tools to sever the connections and avoid damage (scratches, notches) to the sealing surfaces. Otherwise, the integrity of the refrigerant circuit can no longer be ensured. :  Replace gaskets.
		Bolt/nut, refrigerant line to inner heat exchanger If damage (scratches, notches) occurs to the sealing surfaces ↓ Replace corresponding component.	*BA83.30-P-1004-01P
13	Use suitable stop plugs to seal openings	Record plug	Fig 2
14	Remove screws/bolts (10) and disconnect refrigerant lines connector (11) of coolant lines
Notice	Notes on coolant	Model 222 with engine 157, 276.9, 278, 642 with code 582 (Air conditioning, rear) :  Install sealing rings of coolant lines. Collect escaping coolant in a suitable vessel.	AH20.00-P-2080-01KOA
		Model 222 with code 1U6 (R744 refrigerant) with code 582 (Air conditioning, rear) Model 222 with code 582 (Air conditioning, rear) except code 1U6 (R744 refrigerant) Bolt, flange to rear A/C	*BA83.30-P-1010-01P
15	Use suitable stop plugs to seal openings	Record plug	Fig 2
16	Press floor covering in area of rear air conditioner housing (1) to one side
17	Remove screw/bolts (12)
18	Remove rear air conditioner housing (1) from vehicle	Make sure escaping coolant does not penetrate the vehicle interior.
19	Install in the reverse order

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
