Remove/Install Paneling On A-Pillar - AR68.30-P-4050LF
Model 217.3, 222.0/1/9
Shown on model 222
Shown on model 222
| Notice | Note on functional reliability of window airbag | AH91.60-P-0693-01A | |
| Remove | |||

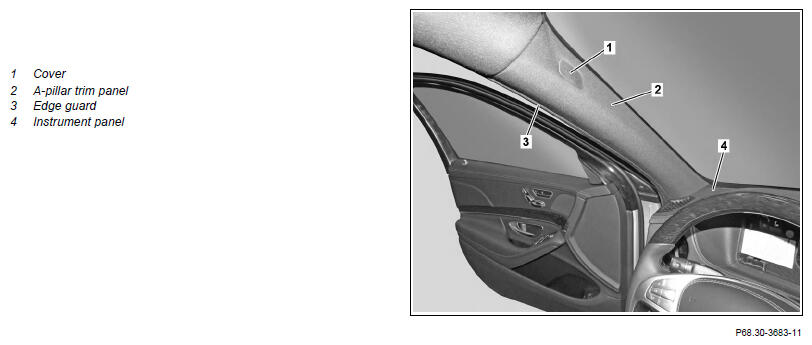

| 1 | Unclip cover (1) | Fig 1 | |
| 2 | Unscrew nut (5) | ||
| 3 | Guide A-pillar paneling (2) upward out of instrument panel (4) | ||
| Install | |||

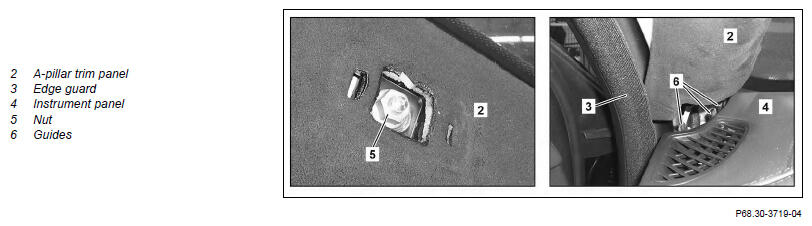

| 4 | Guide A-pillar paneling (2) at bottom behind edge guard (3) and move between instrument panel (4) and guides (6) | ||
| 5 | Guide A-pillar paneling (2) from bottom upward into edge guard (3) | ||
| 6 | Screw on nut (5) | *BA68.30-P-1003-01E | |
| 7 | Clip in cover (1) |
PANELING, TRIM PIECE
| Number | Designation | Model 217 | Model 222 | |
|---|---|---|---|---|
| BA68.30-P-1003-01E | Nut, trim bracket to A-pillar | Nm | 5 | 5 |
