Remove/Install Trim At C-Pillar - AR68.30-P-4490LFA
Model 222.9

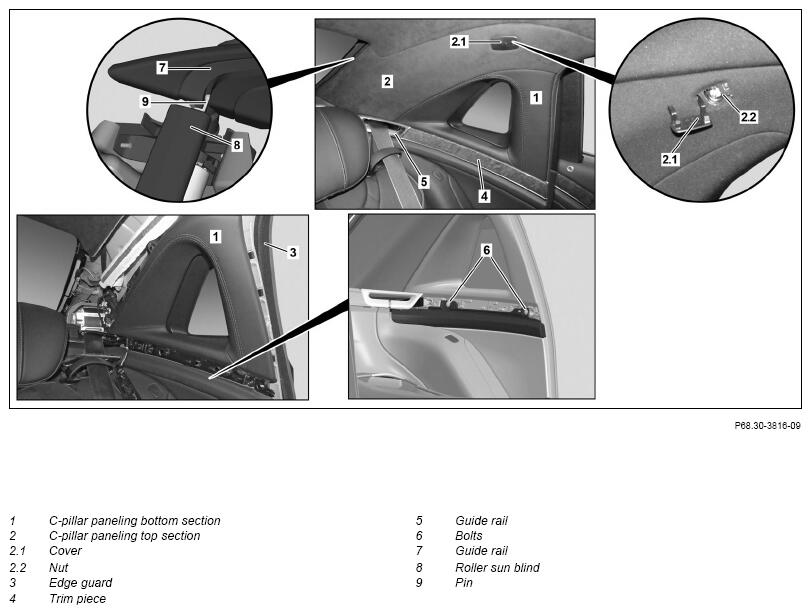

Shown on model 222.9 without code Z07 (Top protection)

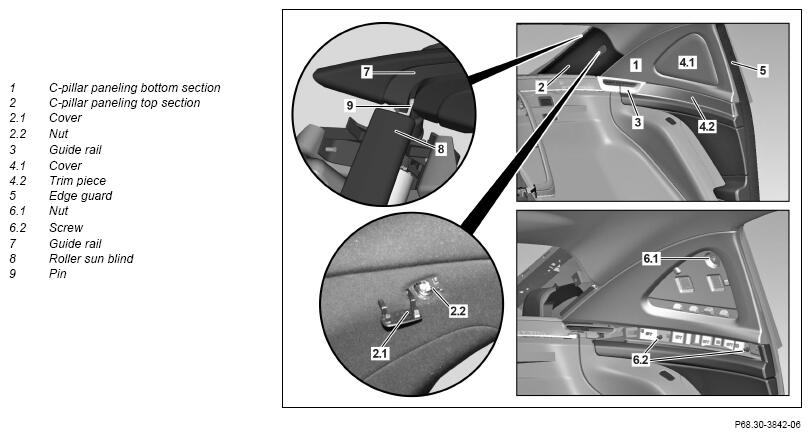

Shown on model 222 9 with code Z07 (Top protection)
Shown on model 222.9 without code Z07 (Top protection)
| Note on functional reliability of window airbag | AH91.60-P-0693-01A | ||
| Remove/install | |||
| 1.1 | Remove edge guard (3) in area of C-pillar paneling (1, 2) | Model 222.9 except code Z07 (Top protection) | |
| 1.2 | Remove edge guard (5) in area of C-pillar paneling (1) | Model 222.9 with code Z07 (Top protection) | |
| 2 | Unclip cover (2.1) | ||
| 3 | Unscrew nut (2.2) | *BA68.30-P-1002-01E | |
| 4 | Unclip guide rail (7) from C-pillar paneling top section (2) | Ensure that guide rail (7) is seated correctly. |

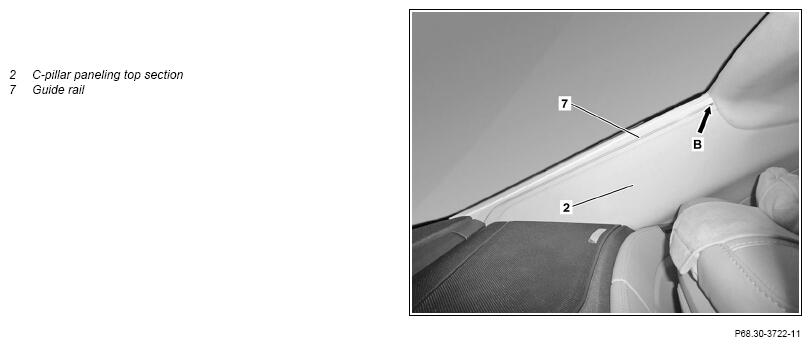

Fig 1 |
| 5 | Unclip C-pillar paneling top section (2) along rear window | ||
| 6 | Remove C-pillar paneling top section (2) in direction of travel | ||
| 7.1 | Unclip trim piece (4) | Model 222.9 except code Z07 (Top protection) |
|
| 7.2 | Unclip trim piece (4.2) | Model 222.9 with code Z07 (Top protection) |
|
| 8.1 | Remove guide rail (5) | Model 222.9 except code Z07 (Top protection) |
|
| 8.2 | Remove guide rail (3) | Model 222.9 with code Z07 (Top protection) |
|
| 9.1 | Remove screw/bolts (6) | Model 222.9 except code Z07 (Top protection) |
|
| 9.2 | Remove bolts (6.2) | Model 222.9 with code Z07 (Top protection) |
|
| 10 | Unclip cover (4.1) | Model 222.9 with code Z07 (Top protection) |
|
| 11 | Remove nut (6.1) | Model 222.9 with code Z07 (Top protection) |
|
| 12 | Unclip C-pillar paneling bottom section (1) | ||
| 13 | Install in the reverse order |
PANELING, TRIM PIECE
| Number | Designation | Model 222 | |
|---|---|---|---|
| BA68.30-P-1002-01E | Nut/screw, trim bracket to C-pillar | Nm | 5 |
