Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800RF
Model 205, 253
Shown on model 205.0 up to 01.03.2018
Shown on model 205.0 up to 01.03.2018
Model 205.012/013/047/053/054/147/212/213/247/253, 253.311/354/911/954

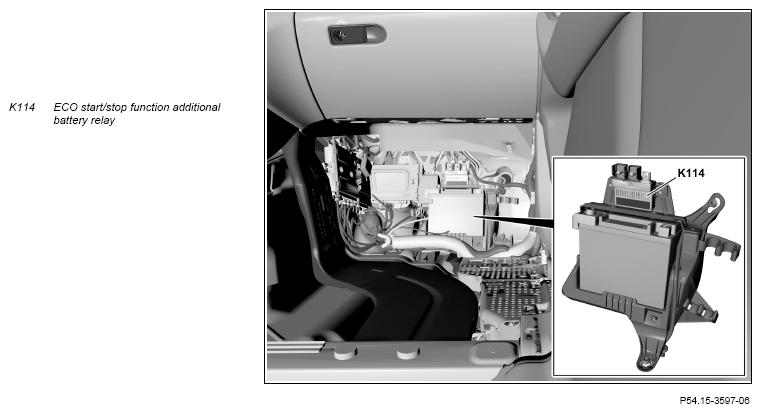

The auxiliary battery circuit 30 fuses protect the connection between the ECO start/stop function auxiliary battery (G1/13) and the front SAM control unit (N10/6) and the electronic ignition lock control unit (N73) with 7.5 A.
Model 205.086/087/286/287/386/387/486/487

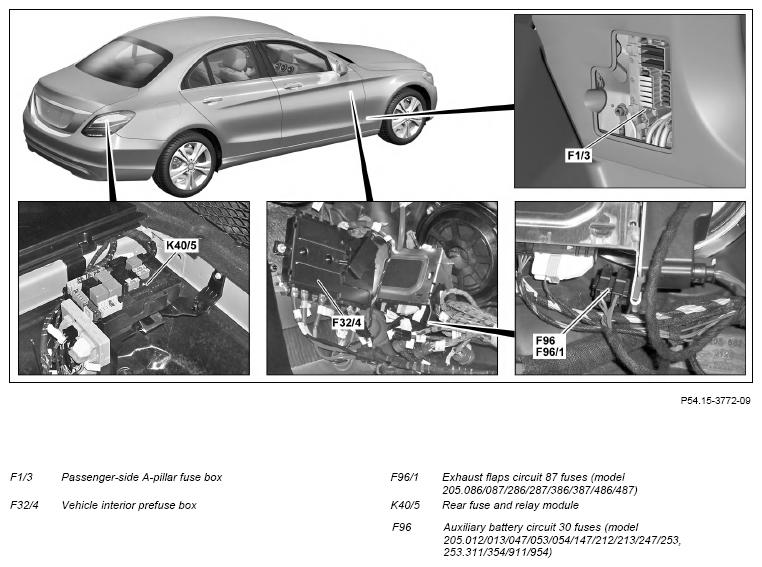

The exhaust flaps circuit 87 fuses protect the left exhaust flap actuator motor (M16/53), the right exhaust flap actuator motor (M16/54) and the center exhaust flap actuator motor (M16/55) with 10 A.
Model 205.012/013/047/053/054/147/212/213/247/253, 253.311/354/911/954, shown on model 205.0
up to 01.03.2018
Model 253.99
| Assignment of passenger-side A-pillar fuse box | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 F1/3 |
GF54.15-P-1256-48RF | |
| Model 205 as of model year 2019 Model 253.99 F1/3 |
GF54.15-P-1256-48RFM | ||
| Model 253 (except 253.99) as of model year 2020 F1/3 |
GF54.15-P-1256-48RFN | ||

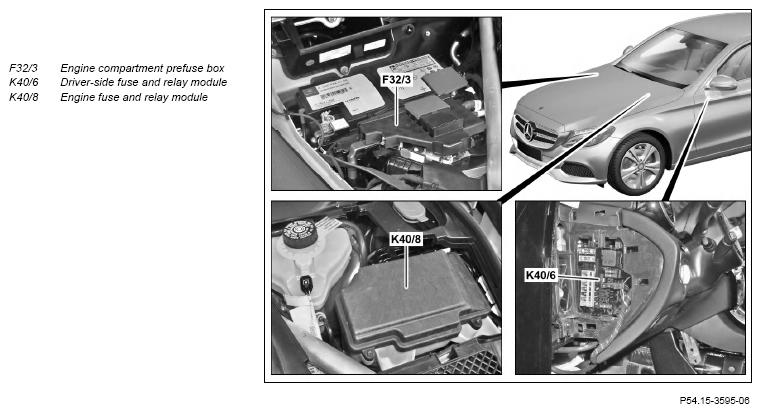

| Fuse assignment of prefuse box in engine compartment | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 F32/3 |
GF54.15-P-1256-25RF | |
| Model 205 as of model year 2019 Model 253.99 F32/3 |
GF54.15-P-1256-25RFM | ||
| Model 253 (except 253.99) as of model year 2020 F32/3 |
GF54.15-P-1256-25RFN | ||
| Fuse assignment on interior prefuse box | Model 205 as of model year 2019 Model 253.99 F32/4 |
GF54.15-P-1256-26RFM | |
| Assignment of prefuse box in vehicle interior | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 |
GF54.15-P-1256-37RF | |
| F32/4 Model 253 (except 253.99) as of model year 2020 F32/4 |
GF54.15-P-1256-37RFN | ||
| Assignment of rear fuse and relay module | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 |
GF54.15-P-1256-30RF | |
| K40/5 Model 205 as of model year 2019 Model 253.99 |
GF54.15-P-1256-30RFM | ||
| K40/5 Model 253 (except 253.99) as of model year 2020 K40/5 |
GF54.15-P-1256-30RFN | ||
| Assignment of driver-side fuse and relay module | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 |
GF54.15-P-1256-49RF | |
| K40/6 Model 205 as of model year 2019 Model 253.99 |
GF54.15-P-1256-49RFM | ||
| K40/6 Model 253 (except 253.99) as of model year 2020 K40/6 |
GF54.15-P-1256-49RFN | ||
| Assignment of engine fuse and relay module | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 K40/8 |
GF54.15-P-1256-32RF | |
| Model 205 as of model year 2019 Model 253.99 K40/8 |
GF54.15-P-1256-32RFM | ||
| Model 253 (except 253.99) as of model year 2020 K40/8 |
GF54.15-P-1256-32RFN | ||

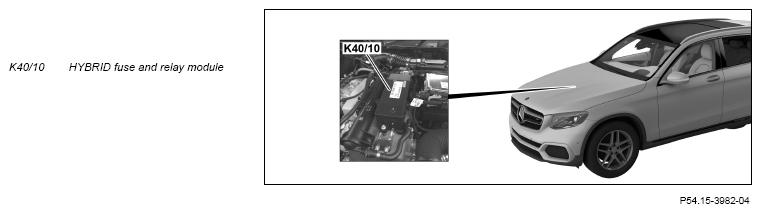

| Assignment of HYBRID fuse and relay module | Model 253.99 K40/10 |
GF54.15-P-1256-34RFM |
