Fuse Assignment Of Pre-Fuse Box In Engine Compartment - GF54.15-P-1256-25RF
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
Model 253 (except 253.99) up to model year 2020

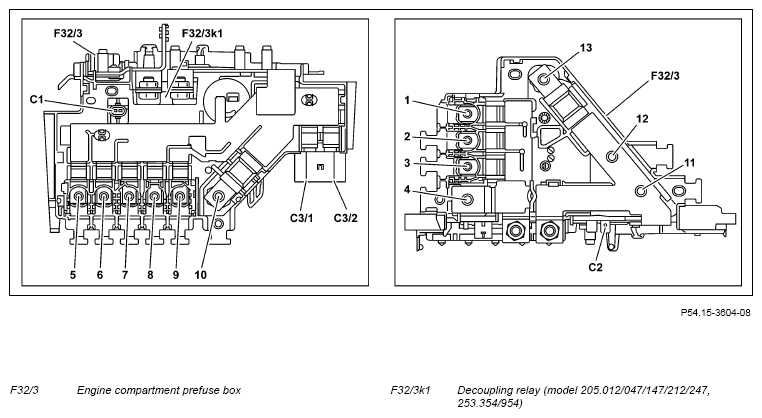

Side view, viewed from top
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | Electrical fuse 1 (F32/3f1) | 30 | 6.0 RD | As of 01.12.2016: Electronic Stability Program control unit (N30/4) |
60 |
| 2 | Electrical fuse 2 (F32/3f2) | 30 | 10.0 RDBK | Diesel engine: Glow output stage (N14/3) |
60 |
| 3 | Electrical fuse 3 (F32/3f3) | 30 | 6.0 RD | Up to 30.11.2016, model 205: Motor fuse and relay module (K40/8) |
60 |
| 12.0 RD | Up to 31.05.2016, model 253: Motor fuse and relay module (K40/8) |
||||
| 6.0 RD | As of 01.06.2016, model 253: Motor fuse and relay module (K40/8) |
||||
| 4.0 RD | As of 01.12.2016, engine 177: Electronic Stability Program control unit (N30/4) |
||||
| 4 | - | 30 | 35.0 RD | On-board electrical system battery connection (G1) | - |
| 5 | Electrical fuse 5 (F32/3f5) | 30 | 16.0 RD | Motor fuse and relay module (K40/8) | 150 |
| 6 | Electrical fuse 6 (F32/3f6) | 30 | 16.0 RD | Driver-side fuse and relay module (K40/6) | 125 |
| 7 | Electrical fuse 7 (F32/3f7) | 30 | 10.0 RD | Fan motor 600 W: Fan motor (M4/7) |
80 |
| 12.0 RD | Fan motor 850 W: Fan motor (M4/7) |
||||
| 16.0 RD | Engine 177, fan motor 1000 W: Fan motor (M4/7) |
150 | |||
| 8 | Electrical fuse 8 (F32/3f8) | 30 | 12.0 RD | Electrical power steering control unit (N68) | 125 |
| 9 | Electrical fuse 9 (F32/3f9) | 30 | 16.0 RD | Engine 177, fan motor 1000 W: Fan motor (M4/7) |
150 |
| 6.0 RD | As of 01.12.2016, model 205: Motor fuse and relay module (K40/8) |
60 | |||
| 10 | Electrical fuse 10 (F32/3f10) | 30 | 35.0 BK | Vehicle interior prefuse box (F32/4) | 200 |
| 11 | - | 30 | Model 205 right-hand drive vehicle with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): Power electronics control unit (N129/1) |
- | |
| 12 | - | 30 | 35.0 BK | Model 205 left-hand drive vehicle with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): Power electronics control unit (N129/1) |
- |
| 25.0 BK | With code 460 (Canada version) or code 494 (USA version): Catalytic converter heater control unit (N33/3) |
- | |||
| 13 | Electrical fuse 13 (F32/3f13) | 30 | 50.0 RD | Except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Alternator (G2) |
400 |
| With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): DC/DC converter control unit (N83/1) |
350 | ||||
| C1/1 | - | 30 | 0.5 RDBN | Model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Front SAM control unit (N10/6) |
- |
| C1/2 | - | 31 | 0.5 BN | Left-hand drive vehicle model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Left major assembly compartment ground point (W16/3) |
- |
| Right-hand drive vehicle, model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Right major assembly compartment electronics ground point (W16/7) |
- | ||||
| C2 | - | 31 | 1.0 BN | Left-hand drive vehicle model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Left major assembly compartment ground point (W16/3) |
- |
| Right-hand drive vehicle, model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Right major assembly compartment electronics ground point (W16/7) |
|||||
| C3/1 | Electrical fuse C3/1 (F32/3fC3/1) | 30 | 4.0 RD | Engine 177: Electronic Stability Program control unit (N30/4) |
40 |
| 6.0 RD (6.0 RDBU) | Except engine 177: Electronic Stability Program control unit (N30/4) |
||||
| C3/2 | Electrical fuse C3/2 (F32/3fC3/2) | 30 | 6.0 RD | Except engine 177: Electronic Stability Program control unit (N30/4) |
60 |
