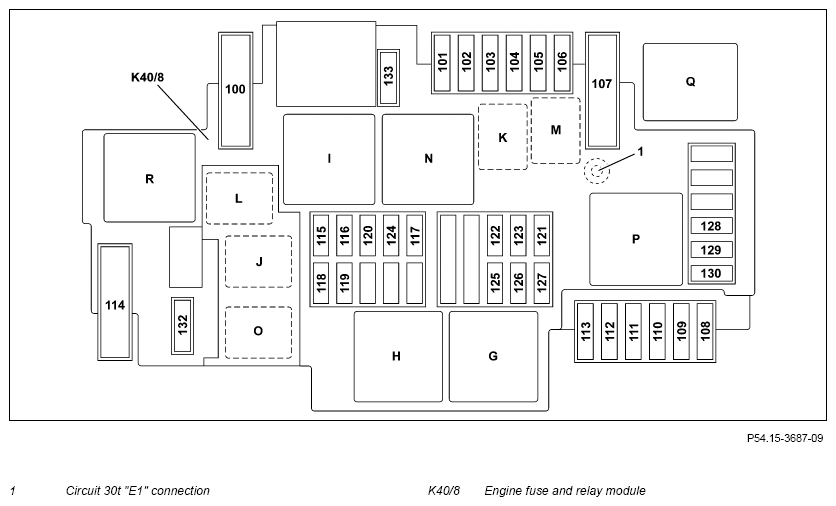

Assignment Of Engine Fuse And Relay Module - GF54.15-P-1256-32RFM
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019
Model 253.99
Relays J, K, L, M and O are located inside the housing and firmly soldered onto the PCB.
| Slot | Fuse Identification | Circuit | Wire Identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| 100 | Electrical fuse 100 (K40/8f100) | 87 | 4.0 RDGN | With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)) or model 253.99: Vacuum pump (M56) |
40 |
| 101 | Electrical fuse 101 (K40/8f101) | 87M | 1.5 RDGN | Engines 264, 274, 276, 654: Circuit 87/2 end sleeve (Z7/48z1) |
15 |
| 2.5 RDGN | Engine 177: Circuit 87/2 end sleeve (Z7/48z1) |
20 | |||
| 102 | Electrical fuse 102 (K40/8f102) | 87M | 4.0 RDBU | Engine 654: Connector sleeve, circuit 87/1 (Z7/47z1) |
20 |
| Engine 177: Connector sleeve, circuit 87/3 (Z7/75z1) |
25 | ||||
| 103 | Electrical fuse 103 (K40/8f103) | 87M | 1.5 RDGY | Engines 264, 274, 276, 654: Connector sleeve, circuit 87/4 (Z7/73z1) |
15 |
| 2.5RDGY | Engine 177: Connector sleeve, circuit 87/4 (Z7/73z1) |
20 | |||
| 104 | Electrical fuse 104 (K40/8f104) | 87M | 4.0 RDYE | Engines 264, 274, 276, 654: Connector sleeve, circuit 87/3 (Z7/75z1) |
15 |
| 105 | Electrical fuse 105 (K40/8f105) | 87 | - | Spare | - |
| 106 | Electrical fuse 106 (K40/8f106) | 87 | - | Spare | - |
| 107 | Electrical fuse 107 (K40/8f107) | 87 | 6.0 RD | Engines 264, 274: Electric coolant pump (M75/11) |
60 |
| 108 | Electrical fuse 108 (K40/8f108) | 15M | 1.0 RD | Model 253.99: Accelerator pedal sensor (B37) |
15 |
| 109 | Electrical fuse 109 (K40/8f109) | 15M | 0.75 RDGN | Model 253.99 with code B53 (Acoustic presence indicator): Sound generator (H4/16) |
10 |
| 110 | Electrical fuse 110 (K40/8f110) | 30t | 1.5 RDYE | With CODE 631 (Static left-hand traffic LED headlamp) or CODE 632 (Static right-hand traffic LED headlamp): Right front lamp unit (E2) |
20 |
| With CODE 640 (High Performance LED) or CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp)): Left front lamp unit (E1) Right front lamp unit (E2) |
|||||
| 111 | Electrical fuse 111 (K40/8f111) | 30t | 1.5 RDBU | Model 205 with code 631 (LED static headlamp, left-hand traffic) or code 632 (LED static headlamp, right-hand traffic): Left front lamp unit (E1) |
20 |
| With CODE 640 (High Performance LED) or CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp)): Left front lamp unit (E1) Right front lamp unit (E2) |
|||||
| 2.5 RDBK | Model 253.99: Wiper motor (M6/1) |
30 | |||
| 112 | Electrical fuse 112 (K40/8f112) | 30t | 2.5 RDBK | Model 205: Wiper motor (M6/1) |
30 |
| 113 | Electrical fuse 113 (K40/8f113) | 50 | 2.5 VTWH | Model 205 except code B01 (48V technology): Starter (M1) |
30 |
| 114 | Electrical fuse 114 (K40/8f114) | 87 | 4.0 RDWH | With code 483 (ADVANCED AGILITY package) or code 489 (AIRMATIC) or on model 253.99: AIRMATIC compressor (A9/1) |
40 |
| 115 | Electrical fuse 115 (K40/8f115) | 87 | - | Spare | - |
| 116 | Electrical fuse 116 (K40/8f116) | 87 | 0.5 OGRD | With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Electronic Stability Program control unit (N30/4) |
5 |
| Model 253.99: Powertrain control unit (N127) |
|||||
| 117 | Electrical fuse 117 (K40/8f117) | 30t | - | Spare | - |
| 118 | Electrical fuse 118 (K40/8f118) | 87C | 1.5 PKWH | Model 205: Circuit 87C (Z141/2z1) end sleeve |
15 |
| Model 253.99: Exhaust gas recirculation cooler bypass switchover valve (Y85) Rear electric machine coolant pump (M75/9) |
|||||
| 119 | Electrical fuse 119 (K40/8f119) | 87C | 0.5 RDGN | Model 205: Powertrain control unit (N127) |
5 |
| 1.5 RDGN | Model 253.99: Circuit 87/C1 end sleeve (Z141/1z1) |
15 | |||
| 120 | Electrical fuse 120 (K40/8f120) | 30t | - | Spare | - |
| 121 | Electrical fuse 121 (K40/8f121) | 15M | 0.75 RD | Park pawl capacitor (C8) | 10 |
| 122 | Electrical fuse 122 (K40/8f122) | 15M | - | Spare | - |
| 123 | Electrical fuse 123 (K40/8f123) | 15M | 0.5 BKRD | Front SAM control unit (N10/6) | 5 |
| 124 | Electrical fuse 124 (K40/8f124) | 30t | 0.35 RDYE | Model 253.99: CPC relay (K40/8kJ) |
5 |
| 125 | Electrical fuse 125 (K40/8f125) | 15M | 0.5 PKRD | Powertrain control unit (N127) | 5 |
| Gasoline engine: ME-SFI [ME] control unit (N3/10) |
|||||
| Diesel engine: CDI control unit (N3/9) |
|||||
| 126 | Electrical fuse 126 (K40/8f126) | 15M | 0.5 PKRD | Except code 631 (Static left-hand traffic LED headlamp) and except code 632 (Static right-hand traffic LED headlamp) and except code 640 (High-performance LED) and except code 641 (Dynamic left-hand traffic LED headlamp) and except code 642 (Dynamic right-hand traffic LED headlamp): Left front lamp unit (E1) Right front lamp unit (E2) |
5 |
| Model 205: Exterior lights switch (S1) |
|||||
| 127 | Electrical fuse 127 (K40/8f127) | 50 | 0.5 VTWH | Model 205 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)) and except code B01 (48V technology): Voltage dip limiter (R62) |
5 |
| 128 | Electrical fuse 128 (K40/8f128) | 15M | 0.5 OGBU | Except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)) and except code B01 (48V technology): Electronic Stability Program control unit (N30/4) |
5 |
| 0.5 PKRD | Model 253.99: Exterior lights switch (S1) |
||||
| 129 | Electrical fuse 129 (K40/8f129) | 15M | 0.5 RDBK | With code U82 (USB charge socket in rear): Rear USB electrical connection (X39/75) |
5 |
| 0.5 OGBU | Model 253.99: Electronic Stability Program control unit (N30/4) |
||||
| 130 | Electrical fuse 130 (K40/8f130) | 15M | - | Spare | - |
| 132 | Electrical fuse 132 (K40/8f132) | 87 | 0.5 OG | Model 253.99: Rear axle electronic level control system control unit (N97) |
5 |
| 133 | Electrical fuse 133 (K40/8f133) | 30t | 1.5 RDBU | Model 253.99: Left front lamp unit (E1) |
20 |
| Relay Identification | Designation |
|---|---|
| G | Engine compartment circuit 15 relay (K40/8kG) |
| H | Model 205 except code B01 (48V technology): Starter circuit 50 relay (K40/8kH) |
| I | With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)) or model 253.99: Vacuum pump relay (+) (K40/8kI) |
| J | CPC relay (K40/8kJ) |
| K | Oil pump relay (K40/8kK) |
| L | Horn relay (K40/8kL) |
| M | Wiper park position heater relay (K40/8kM) |
| N | Circuit 87M relay (K40/8kN) |
| O | Starter circuit 15 relay (K40/8kO) |
| P | Engine 274.9: Coolant pump relay (K40/8kP) |
| Q | With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)) or model 253.99: Relay Q (K40/8kQ) |
| R | With code 483 (ADVANCED AGILITY package) or code 489 (AIRMATIC) or model 253.99: AIRMATIC relay (K40/8kR) (model 205), relay R (K40/8kR) (model 253) |
