Assignment Of Pre-Fuse Box In Vehicle Interior - GF54.15-P-1256-37RF
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020

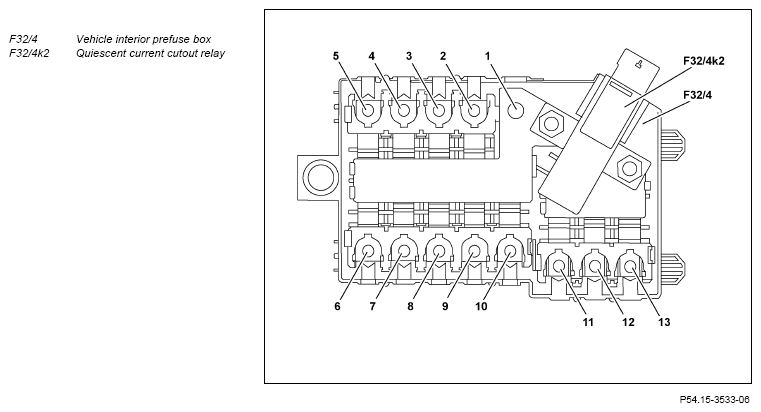

| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | - | 30 | 35.0 RD | Engine compartment prefuse box (F32/3) | - |
| 2 | Electrical fuse 2 (F32/4f2) | 30 | 16.0 BK | Model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Additional battery relay for ECO start/stop function (K114) |
150 |
| 3 | Electrical fuse 3 (F32/4f3) | 30 | 4.0 RD | Air conditioner housing (A32) | 40 |
| 4 | Electrical fuse 4 (F32/4f4) | 30 | - | Spare | - |
| 5 | Electrical fuse 5 (F32/4f5) |
30 | 16.0 RD | Engine 626, 642, 651 or 274 with code 401 (Seat climate control for driver and front passenger), 463 (Head-up Display), code 824 (Additional parts for countries with cold temperatures) and 873 (Seat heating for driver and front passenger): PTC heater booster (R22/3) |
150 |
| 6 | Electrical fuse 6 (F32/4f6) | 30 | 10.0 BK | Passenger-side A-pillar fuse box (F1/3) | 80 |
| 7 | Electrical fuse 7 (F32/4f7) | 30 | 27.0 RD | Rear fuse and relay module (K40/5) | 150 |
| 8 | Electrical fuse 8 (F32/4f8) | 30 | - | Spare | - |
| 9 | Electrical fuse 9 (F32/4f9) | 30 | 6.0 RD | With code 970 (Police emergency vehicles), code 974 (Preinstallation for fire brigade command vehicle) or code 975 (Preinstallation for emergency physician vehicle): Special-purpose vehicle fuse block 1 (F80/1) |
60 |
| 10 | Electrical fuse 10 (F32/4f10) | 30 | 6.0 RD | Transmission 722, 725: Fully integrated transmission control controller unit (Y3/8) |
60 |
| Transmission 724: Fully integrated transmission control controller unit (Y3/8) |
100 | ||||
| 11 | Electrical fuse 11 (F32/4f11) | 30g | - | Spare | 125 |
| 12 | Electrical fuse 12 (F32/4f12) | 30g | 6.0 RD | Right-hand drive vehicle, model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): Rear fuse and relay module (K40/5) |
40 |
| 10.0 RD | Except right-hand drive vehicle, model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): Rear fuse and relay module (K40/5) |
40 | |||
| 13 | Electrical fuse 13 (F32/4f13) | 30g | 6.0 RD | Passenger-side A-pillar fuse box (F1/3) | 50 |
