Fuse Assignment Of Pre-Fuse Box In Engine Compartment - GF54.15-P-1256-25RFM
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019
Model 253.99

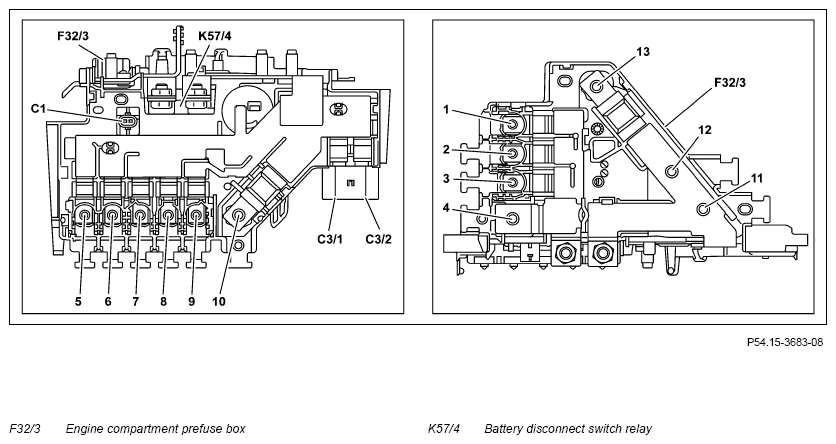

Side view, viewed from top
| Connection | Fuse Identification | Circuit | Wire Identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| 1 | Electrical fuse 1 (F32/3f1) | 30t | 6.0 RD | Electronic Stability Program control unit (N30/4) | 60 |
| 2 | Electrical fuse 2 (F32/3f2) | 30t | 6.0 RDBU | Model 205: Electronic Stability Program control unit (N30/4) |
40 |
| 4.0 RDBU | Model 253.99: Electronic Stability Program control unit (N30/4) |
||||
| 3 | Electrical fuse 3 (F32/3f3) | 30 | 4.0 RD | Passenger-side A-pillar fuse box (F1/3) | 30 |
| 4 | - | 30 | 35.0 RD | Model 205 with code B01 (48V technology) or engine 177 or code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Connection of on-board electrical system battery (G1) |
- |
| 35.0 BK | Model 205 except code B01 (48V technology) and except engine 177 and except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)), model 253.99: Connection of voltage dip limiter (R62) |
||||
| 5 | Electrical fuse 5 (F32/3f5) | 30t | 16.0 RD | Engine fuse and relay module (K40/8) | 150 |
| 6 | Electrical fuse 6 (F32/3f6) | 30t | 16.0 RD | Driver-side fuse and relay module (K40/6) | 150 |
| 7 | Electrical fuse 7 (F32/3f7) | 30t | 10.0 RD | Fan motor 600 W: Fan motor (M4/7) |
80 |
| 12.0 RD | Fan motor 850 W: Fan motor (M4/7) |
||||
| 16.0 RD | Model 205 with engine 177, model 253.99: Fan motor (M4/7) |
150 | |||
| 8 | Electrical fuse 8 (F32/3f8) | 30t | 12.0 RD | Electrical power steering control unit (N68) | 100 |
| 9 | Electrical fuse 9 (F32/3f9) | 30t | 10.0 BK | Model 205 with engine 654: Glow output stage (N14/2) |
100 |
| 6.0 RD | Model 205 with engine 264: Electric coolant pump (M75/11) |
60 | |||
| 12.0 RD | Model 253.99: HYBRID fuse and relay module (K40/10) |
100 | |||
| 10 | Electrical fuse 10 (F32/3f10) | 30t | 35.0 BK | Vehicle interior prefuse box (F32/4) | 300 |
| 11 | Electrical fuse 11 (F32/3f11) | - | - | Spare | - |
| 12 | Electrical fuse 12 (F32/3f12) | - | - | Spare | - |
| 13 | Electrical fuse 13 (F32/3f13) | 30t | 35.0 RD | Model 205 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)) and except code B01 (48V technology): Alternator (G2) | 400 |
| Model 205 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Power electronics control unit (N129/1) |
350 | ||||
| Model 253.99: DC/DC converter control unit (N83/1) |
400 | ||||
| 50.0 RD | Model 205 with code B01 (48V technology): DC/DC converter control unit (N83/1) |
400 | |||
| C1 | - | 30 | - | Battery disconnect switch relay (K57/4) | - |
