Remove/Install Air Duct Of Roof-Mounted Air Conditioning System - Ar83.50-D-7980TSR
Model 907.6/7
with code H08 (Roof-mounted air conditioning system, reinforced)
Model 907.6/7
with code HH7 (Roof-mounted air conditioning system, basic)
Model 907.6/7
with code HK4 (Rear air conditioning, reinforced)
Model 907.8
with code HH9 (Air conditioner, automatic heater control)
Model 907.8
with code HK4 (Rear air conditioning, reinforced)
Shown with code HK4 (Rear A/C, uprated)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||

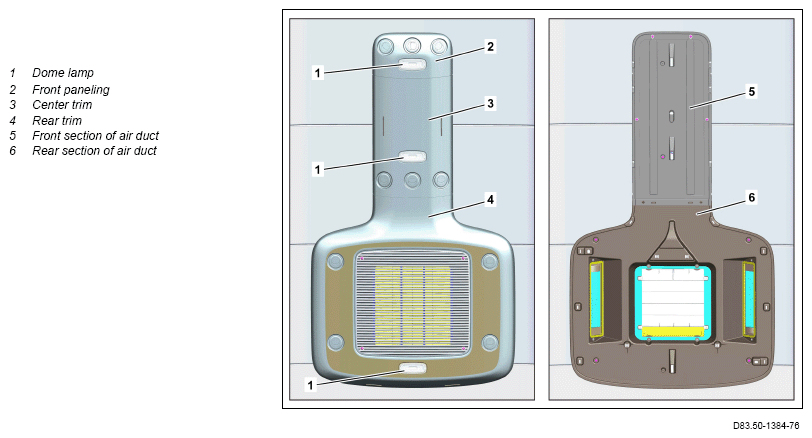

| 1 | Remove corresponding dome lamps (1) in rear passenger compartment. | AR82.20-D-0117TSR | |
| 2 | Remove front trim (2), center trim (3) and front section of air duct (5). | AR83.50-D-7980-01TSR | |
| 3 | Remove rear trim (4) and rear section of air duct (6). | AR83.50-D-7980-02TSR | |
| 4 | Install in the reverse order |
