Remove/Install Dome Lamp In Passenger Compartment - Ar82.20-D-0117TSR
Model 907.6/7/8
Shown with code HK4 (Rear A/C, uprated)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||

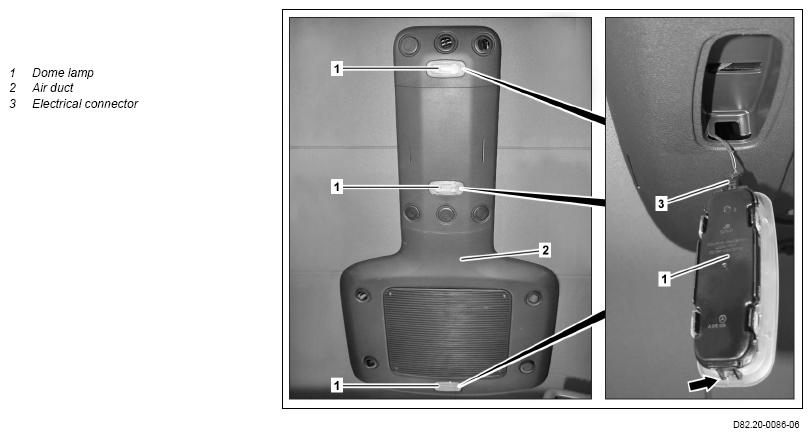

| 1 | Unclip corresponding dome lamp (1) at side from the air duct (2) or the roof lining (arrow). | ||
| Fig 1 | |||
| 2 | Release and disconnect electrical connection (3). | ||
| 3 | Install in the reverse order | ||
| Check | |||
| 4 | Perform function test of the dome lamp (1). |
