Remove/Install Interior Protection Sensor In Passenger Compartment - Ar80.50-D-9835TSR
Model 907.6/7
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

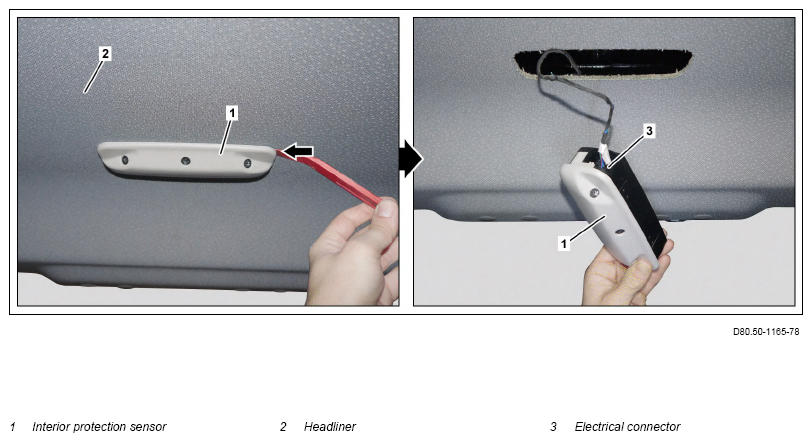

| 1 | Unclip interior protection sensor (1) from roof lining (2) at the side (arrow). | Fig 1 | |
| 2 | Disconnect electrical connector (3) and remove interior protection sensor (1). | ||
| 3 | Install in the reverse order. | ||
| Check | |||
| 4 | Perform function test of interior protection sensor (1). |
