Retrofit Battery Disconnect Switch - An54.10-D-0003TS

Model 907

except code ME0 (Electric motor 85 kW)

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove
1	Remove battery sensor.	The removed battery sensor must be handed over to the customer or disposed of properly following consultation with the customer.	AR54.10-D-0002TS
2	Remove screws (10) from trim (4).	Model 907
	Install

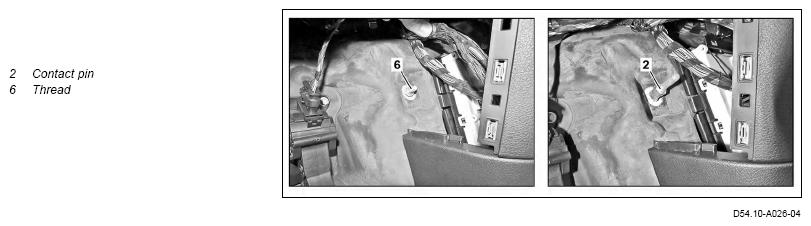

3	Screw contact pin (2) onto thread (6).	Contact pin to body ground point	*BA54.10-N-1007-01TS

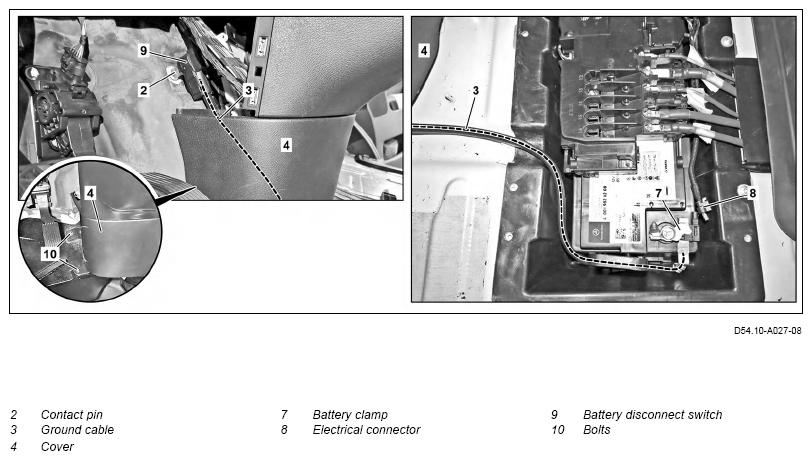

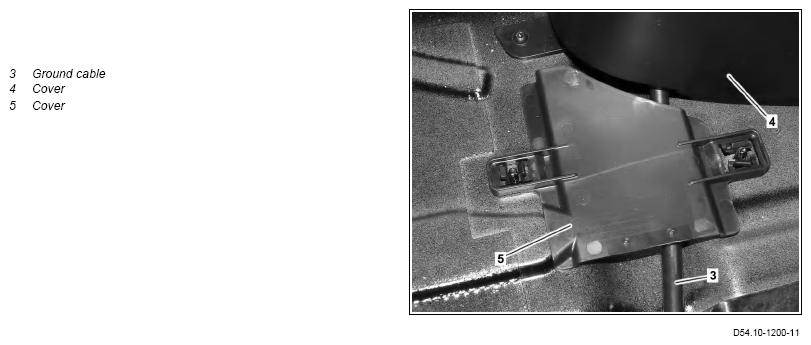

4	Route ground line (3) from on-board electrical system battery to contact pin (2).	Do not kink the ground line (3) and ensure it is routed without chafing. This prevents damage. The battery disconnect switch (9), ground line (3), battery sensor and battery clamp (7) form a single unit. Model 907 To do so, carefully push trim (4) to one side until battery disconnect switch (9) can be guided through.
5	Install battery clamp (7).	To do so, connect electrical connector (8) to battery sensor. The battery disconnect switch (9), ground line (3), battery sensor and battery clamp (7) form a single unit. Nut, battery clamp to negative pole/positive pole of on-board electrical system battery/auxiliary battery	*BA54.10-N-1001-01TS

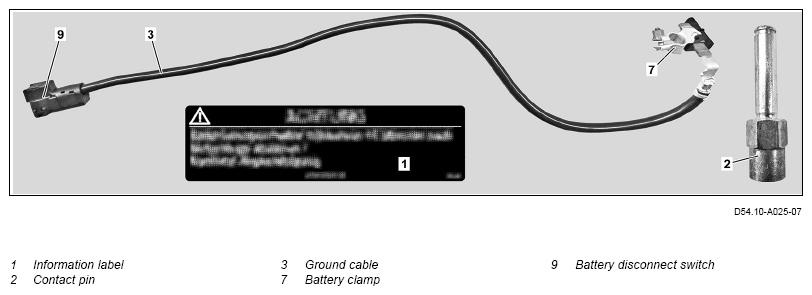

6	Retrofit battery disconnect switch (9).	To do so, push battery disconnect switch (9) onto contact pin (2) until battery disconnect switch (9) engages.
8	Screw in screws (10) of trim (4).

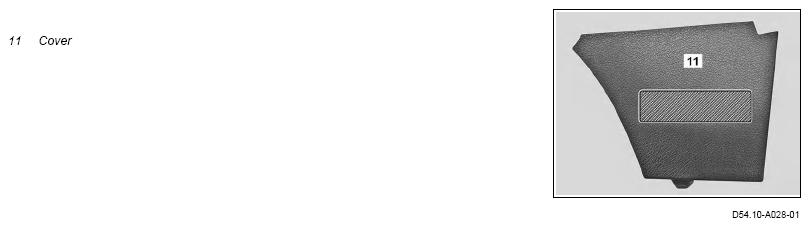

9	Clean cover (11) in crosshatched area.	The contact surface must be completely free of dust and grease. Otherwise, a sufficient degree of adhesion cannot be assured. Cleaner, plastic parts 250 ml	*BR00.45-Z-1005-04A
10	Glue information label (1) in crosshatched area on cover (11).
11	Install cover (11).
12	Install on-board electrical system battery cover. Remove/install on-board electrical system battery	Model 907	AR54.10-D-0009TSR
	Remove/install on-board electrical system battery
13	Install front floor covering.
		Model 907	AR68.80-D-0006TSR
14	Move driver's seat to original position.
15	Enter special equipment into on-line vehicle data card.	Designation of affected special equipment Code E30 (Battery master switch) Attach note "Battery disconnect switch retrofitted as per AN54.10-D-0003TS " under field organization texts to KG54.
	Adjust
16	Set time and date in instrument cluster.	See Owner's Manual.

BATTERY

Number	Designation		Model 907
BA54.10-N-1001-01TS	Nut, battery clamp to negative pole/positive pole of on-board electrical system battery/auxiliary battery	Nm	5

BATTERY

Number	Designation		Model 907
BA54.10-N-1007-01TS	Contact pin to body ground point	Nm	16

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-04A	Cleaner, plastic parts 250 ml	A 001 986 94 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
A 910 545 35 00	Contact pin	1
A 907 905 40 07	Battery sensor (907)	1
A 910 905 34 00	Battery sensor (910)	1
A 906 584 43 38 XU1	Information label (German)	n.B.
A 906 584 43 38 X42	Information label (English)	n.B.
A 906 584 43 38 X43	Information label (French)	n.B.
A 906 584 43 38 XS7	Information label (English/French)	n.B.
A 906 584 43 38 X44	Information label (Spanish/Portuguese)	n.B.
