Remove/Install On-Board Electrical System Battery - Ar54.10-D-0009TSR
Model 907
MODIFICATION NOTES
| 15.05.2019 | "Expose fuse holder at driver's seat and remove fuse F32 at fuse slot 32 of driver's seat fuse holder" added. | Operation step 14 |
| 20.05.2019 | "Adjust warm air stationary heater switch clock" added. | Operation step 17 |
| 05.11.2019 | Use the diagnostic system to confirm the battery change in the SAM control unit in the "Actuations" menu item, added | Operation step 18 |
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Move driver seat to rearmost position. | ||
| 2 | Remove front floor covering on driver side. | AR68.80-D-0006TSR | |

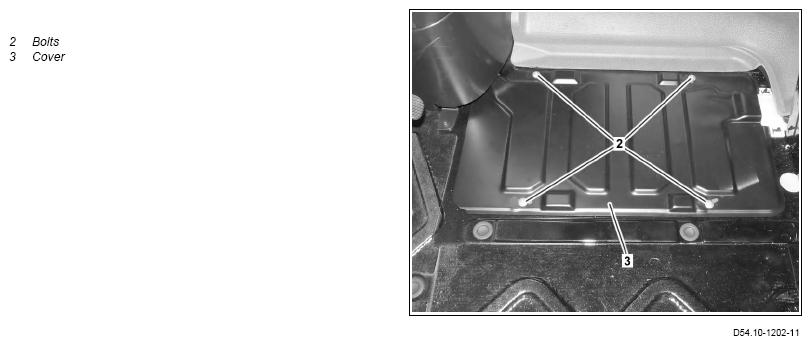

| 3 | Remove bolts (2). | ||
| 4 | Remove cover (3). | ||

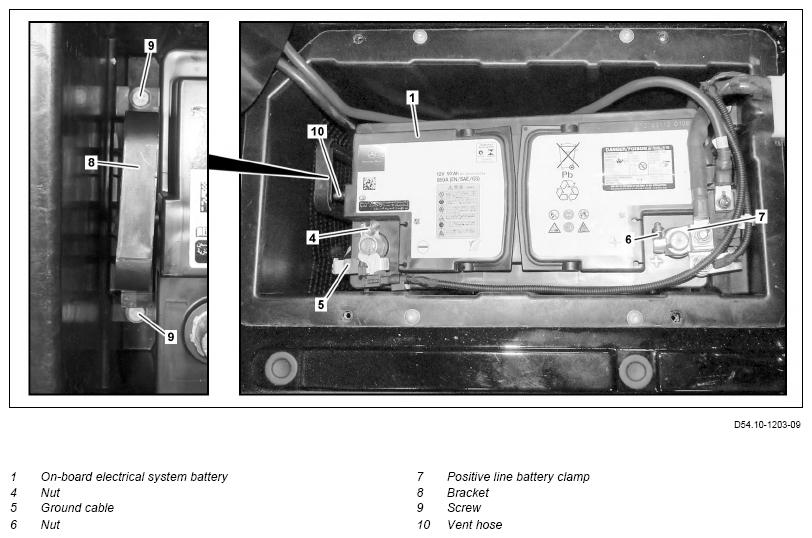

| 5 | Release nut (4). | *BA54.10-N-1001-01TS | |
| 6 | Disconnect ground line (5) from on-board electrical system battery (1) and remove from working area. | ||
| 7 | Remove positive terminal cover from on-board electrical system battery (1). | ||
| 8 | Slacken nut (6). | *BA54.10-N-1001-01TS | |
| 9 | Disconnect positive line battery clamp (7) with prefuse box from positive terminal of on-board electrical system battery (1) and remove from working area. | ||
| 10 | Pull vent hose (10) off on-board electrical system battery (1). | Check that the vent hose (10) is correctly seated. Otherwise escaping battery acid mist can cause damage to the vehicle. |
|
| 11 | Remove screws (9). | ||
| 12 | Remove bracket (8) with screws (9) and vent hose (10). | ||
| 13 | Remove on-board electrical system battery (1). | ||
| 14 |
Expose fuse holder at driver's seat and remove fuse F32 at fuse slot 32 of driver's seal fuse holder. Assignment of fuse holders on seat base |
Model 907 with code G42 (7G-TRONIC PLUS) Model 907 with code G43 (9G-TRONIC) If the on-board electrical system battery (1) is to be removed for longer than 20 days. If the on-board electrical system is to remain disconnected for longer than 20 days, remove fuse F32. Otherwise the Emergency-P battery will be discharged and possibly destroyed as a result of deep discharging. |
GF54.15-D-1257-11TSA |
| 15 | Install in the reverse order. | ||
| 16 | Set date and time in instrument cluster. | ||
| 17 | Adjust weekday, time and default value of operating time on warm air stationary heater switch clock. | Model 907.6/7 with code H11 (Auxiliary hot-air heater) |
|
| 18 |
Use the diagnostic system to confirm battery change in the SAM control unit in the "Actuations" menu item. | If the on-board electrical system battery (1) was replaced. | AD00.00-D-2000-06TS |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA54.10-N-1001-01TS | Nut, battery clamp to negative pole/positive pole of on-board electrical system battery/auxiliary battery | Nm | 5 |
