Remove/Install Battery Sensor - Ar54.10-D-0002TS
Model 907
Shown on model 907
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Move driver seat to rearmost position. | ||

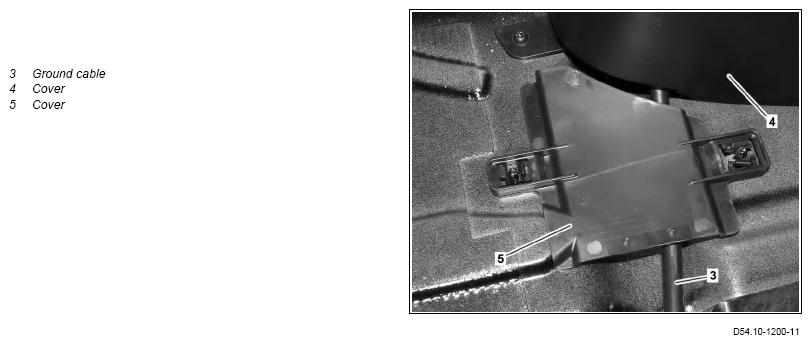

| 2 | Disconnect ground line of on-board electrical system battery at body floor. | AR54.10-D-0029TS | |
| 3 | Disconnect ground line at negative pole of onboard electrical system battery. | Model 907 | AR54.10-D-0009TSR |
| 4 | Disconnect electrical connection (2). | ||

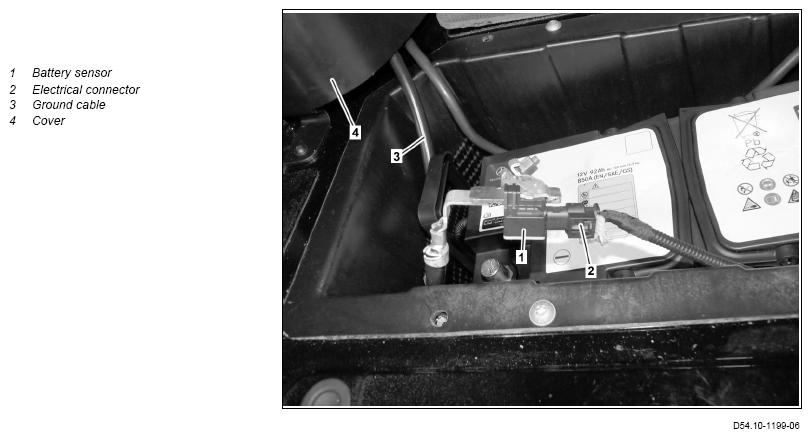

| 5 | Pull out ground line (3) under trim (4) and remove with battery sensor (1). | ||
| 6 | Install in the reverse order. |
