Remove/Install Steering Rack-And-Pinion - AR46.20-P-0600LF

Model 217

Model 222

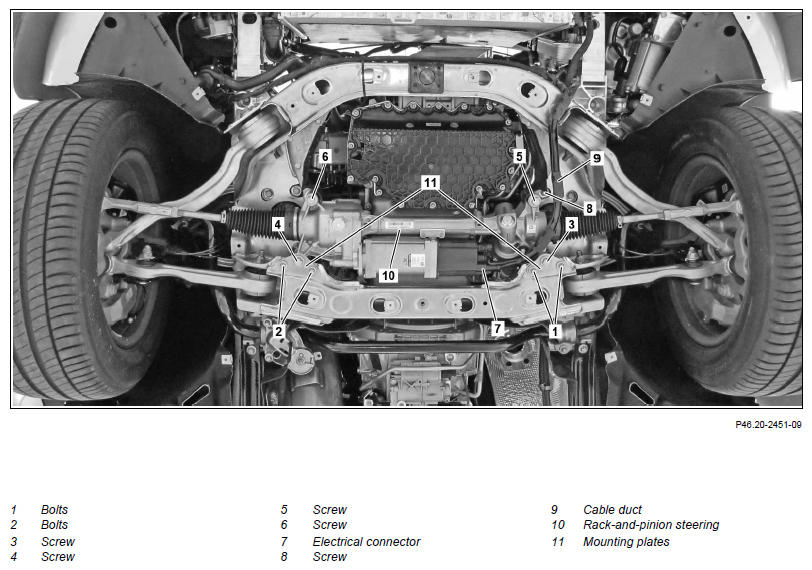

Fig 1: Steering Rack-And-Pinion Components Location - Model 222
G15370305Courtesy of MERCEDES-BENZ USA

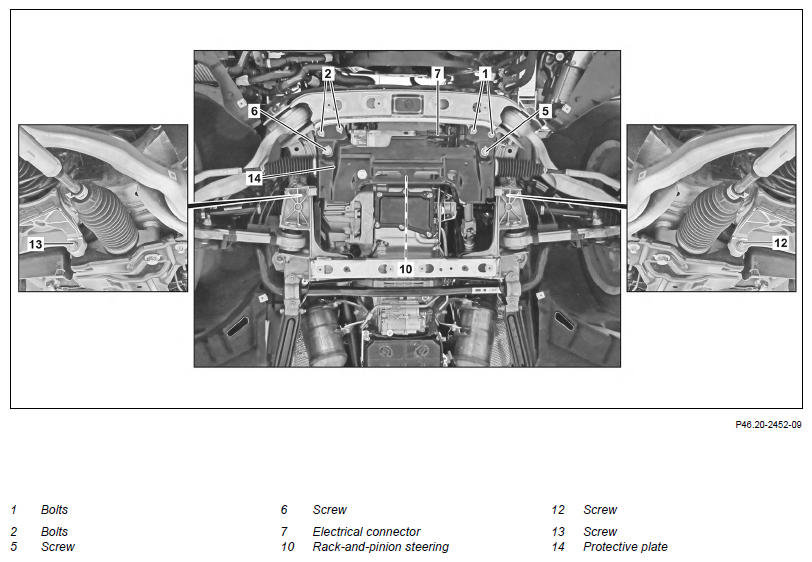

Shown on Model 222 with CODE M005 (4 MATIC)

G15370306Courtesy of MERCEDES-BENZ USA

Shown on Model 222 with CODE M005 (4 MATIC)

Shown on Model 222

G15370307Courtesy of MERCEDES-BENZ USA
G15370308Courtesy of MERCEDES-BENZ USA

Shown on Model 222

Shown on Model 217.4

G15370309Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment   AH00.00-Z-0300-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on battery   AH54.10-P-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Evaluating steering gear when repairing accident vehicles   AH46.20-P-9409-01A
REMOVING Remove
1 Perform power disconnect of high-voltage on-board electrical system. Model 222.004/057/104/157/163 AR54.10-P-1150LF
2 Deactivate easy entry and exit feature for driver's seat and steering wheel. Model 217
Model 222
with code 275 (Memory Package (driver's seat, steering column and mirror))
IMPORTANT See vehicle operating instructions.

3 Turn steering wheel to center position (front wheels in straight-ahead position) and fix in place using holding device. NOTES Do not turn steering wheel with steering coupling removed. AR46.20-P-0600-01RK
    Clock spring contact will otherwise be destroyed.
SPECIAL TOOL Retainer device
Fig 2
4 Remove front wheel and tire assemblies.   AR40.10-P-1102A
5.1 Remove rear and center section of lower engine compartment lining. Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR61.20-P-1105LF
5.2 Remove front and center section of lower engine compartment lining. Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR61.20-P-1105LF

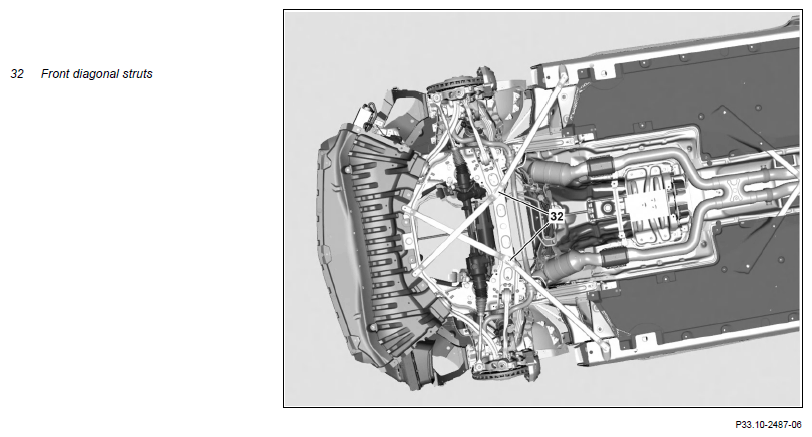

6 Remove front diagonal struts (32). Model 217.4
TORQUE SPECIFICATION Screw/bolt, front diagonal strut to front axle carrier/body
*BA61.10-P-1018-01K
7 Remove tie rods from steering knuckles.   AR46.40-P-0200LF
8 Remove steering coupling from rack-and-pinion steering (10). Model 222 up to 4/29/14 AR46.10-P-8000RK
    Model 217
Model 222 as of 4/30/14
AR46.10-P-8000LW
9 Release and disconnect electrical connector (7).
10 Unscrew screw (8) and place cable duct (9) to one side. Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)

11 Attach engine support fixture and lift engine up to engine mount end stop. Model 217
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 222 (except 222.020/021/034/035/120/121/134/135)
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 217 with engine 157, 276, 278, 279
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 222 with engine 157, 276.8/9, 277, 278, 279
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR33.10-P-0105LF
    Model 222 with engine 642
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR33.10-P-0105LFD
    Model 222 with engine 256
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
IMPORTANT Do not detach engine mounts.
AR33.10-P-0105MRT
12.1 Support rack-and-pinion steering (10) using suitable means and secure to prevent it from falling down. Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)

12.2 Support rack-and-pinion steering (10) on guard plate (14) and secure to prevent it from falling down. Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)

13 Remove screws (5, 6). IMPORTANT Model 217, 222

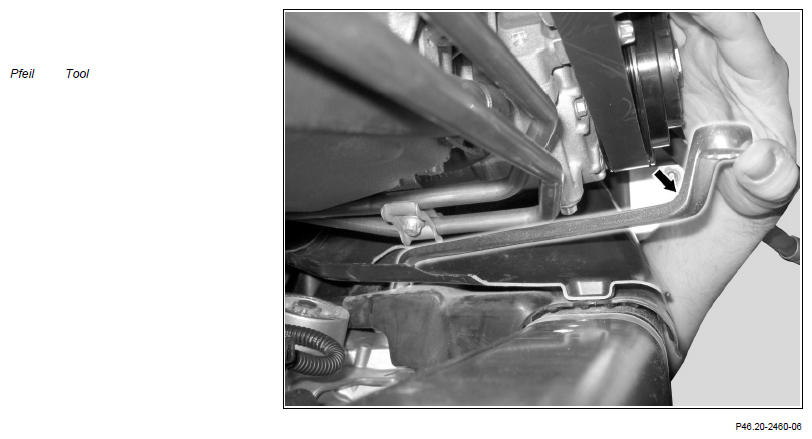

with code M005 (Vehicles with 4 MATIC/all-wheel drive) Counterhold nuts with suitable tool (arrow).

14.1 Unscrew screws (1, 2, 3, 4) and remove mounting plates (11). Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)

14.2 Unscrew screws (1, 2, 12, 13). Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)

15.1 Remove rack-and-pinion steering (10). Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)

15.2 Remove rack-and-pinion steering (10) and take guard plate (14) off rack-and-pinion steering (10). Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)

INSTALLING Install

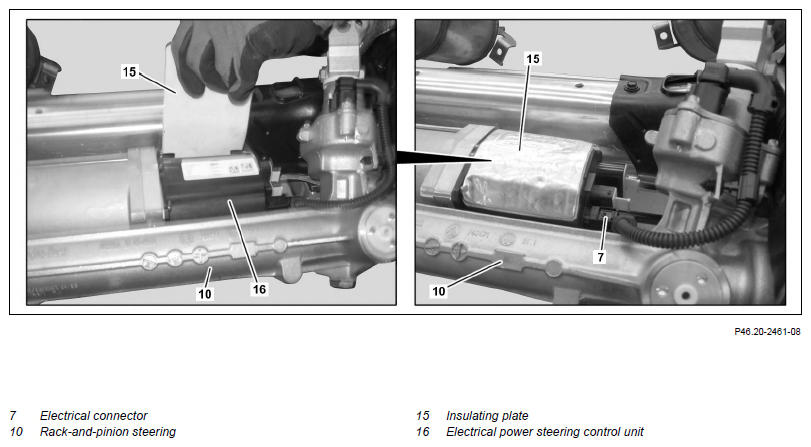

16 Detach protective foil of insulating plate (15) and bond insulating plate (15) to electrical power steering control unit (16). Model 217
Model 222.077/177 with engine 157.985
Model 222.176/976 with engine 277.980
Model 222.179 with engine 279.980 When replacing the rack-and-pinion steering (10).
IMPORTANT Check that the insulating plate (15) is positioned correctly.
Position at the cutout on the electrical power steering control unit (16) and stick on.

17.1 Install rack-and-pinion steering (10). Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)
IMPORTANT Replace bolts (1, 2, 3, 4, 5, 6) and mounting plates (11).

    IMPORTANT Fit the bolts (1, 2, 3, 4, 5, 6) but do not tighten.
17.2 Install rack-and-pinion steering (10) with guard plate (14). Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
IMPORTANT Replace bolts (1, 2, 5, 6, 12, 13).
IMPORTANT Counterhold nuts of screws/bolts (5, 6) with suitable tool (arrow).
IMPORTANT Fit the screws/bolts (1, 2, 5, 6, 12, 13) but do not tighten.

18.1 Tighten screws (1, 2, 3, 4, 5, 6) to torque. Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)
IMPORTANT When tightening, observe the following sequence: screws (5, 6, 1, 2, 3, 4).
TORQUE SPECIFICATION Model 217.377/379/382/477/479/482
except code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 222.004/032/057/077/082/104/123/157/162/163/165/176/177/179/182/976/982
except code M005 (Vehicles with 4 MATIC/all-wheel drive) Bolt, rack-and-pinion steering to front axle carrier
*BA46.20-P-1001-01P
    TORQUE SPECIFICATION Model 217.377/379/382/477/479/482
except code M005 (Vehicles with 4 MATIC/all-wheel drive) Model 222.004/032/057/077/082/104/123/157/162/163/165/176/177/179/182/976/982
except code M005 (Vehicles with 4 MATIC/all-wheel drive) Bolt, rack-and-pinion steering mounting plate to front axle carrier
*BA46.20-P-1002-01P
18.2 Tighten screws (1, 2, 5, 6, 12, 13) to torque. Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
IMPORTANT When tightening, observe the following sequence: screws (5, 6, 1, 2, 12, 13).
TORQUE SPECIFICATION Model 217.364/378/384/385/478
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 222.033/067/085/133/167/178/184/185/967/984/985
with code M005 (Vehicles with 4 MATIC/all-wheel drive) Bolt, rack-and-pinion steering to front axle carrier
*BA46.20-P-1001-01P
    TORQUE SPECIFICATION Model 217.364/378/384/385/478
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 222.033/067/085/133/167/178/184/185/967/984/985
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Bolt, rack-and-pinion steering guard plate to front axle carrier
*BA46.20-P-1003-01P
19 Lower engine and remove engine support fixture. Model 217
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 222 (except 222.020/021/034/035/120/121/134/135)
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 217 with engine 157, 276, 278, 279
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
Model 222 with engine 157, 276.8/9, 277, 278, 279
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR33.10-P-0105LF
    Model 222 with engine 642
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR33.10-P-0105LFD
    Model 222 with engine 256
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR33.10-P-0105MRT
20 Position cable duct (9) and tighten screw (8). Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)

21 Connect electrical connector (7).
22 Attach steering coupling to rack-and-pinion steering (10). Model 222 up to 4/29/14 AR46.10-P-8000RK
    Model 217, 222 as of 4/30/14 AR46.10-P-8000LW
23 Attach tie rods to steering knuckles.   AR46.40-P-0200LF
24.1 Install rear and center section of lower engine compartment lining. Model 217, 222
except code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR61.20-P-1105LF
24.2 Install front and center section of the bottom engine compartment lining. Model 217, 222
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
AR61.20-P-1105LF
25 Install front wheel and tire assemblies.   AR40.10-P-1102A
26 Remove holding device from steering wheel.
27 Activate easy entry/exit feature for driver's seat and steering wheel. Model 217, 222
with code 275 (Memory Package (driver's seat, steering column and mirror))
IMPORTANT See vehicle operating instructions.

  Concluding tasks
28 Connect vehicle diagnosis system and perform commissioning of rack-and-pinion steering (10). After replacing rack-and-pinion steering (10).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
29 Add new steering number of rack-and-pinion steering (10) to online vehicle data card via the vehicle documentation system (VeDoc). After replacing rack-and-pinion steering (10).
IMPORTANT Redocumentation is absolutely essential.

30 Put the high-voltage on-board electrical system into operation. Model 222.004/057/104/157/163 AR54.10-P-1150LF
31 Perform chassis alignment.   AR40.20-P-0200LF
STEERING GEAR

Number Designation Model 217, 222 (except 222.150) except code M005 (Vehicles with 4 MATIC/all-wheel drive) Model 217, 222 (except 222.150)
with code M005 (Vehicles with 4 MATIC/all-wheel drive)
BA46.20-P-1001-01P Bolt, rack-and-pinion steering to front axle carrier M8   Nm - 30
M12 Stage 1 Nm 100 100
Stage 2 ∠° 90 90
STEERING GEAR

Number Designation Model 217, 222 (except 222.150) except code M005 (Vehicles with 4 MATIC/all-wheel drive)
BA46.20-P-1002-01P Bolt, rack-and-pinion steering mounting plate to front axle carrier M10 Nm 50
STEERING GEAR

Number Designation Model 217, 222 (except 222.150) with code M005 (Vehicles with 4 MATIC/all-wheel drive)
BA46.20-P-1003-01P Bolt, rack-and-pinion steering guard plate to front axle carrier M10 Nm 50
FRAME FLOOR ASSEMBLY

Number Designation Model 217
BA61.10-P-1018-01K Screw/bolt, front diagonal strut to front axle carrier/body M8 Nm 17
M10 Nm 50
Fig 2: Identifying Retainer Device (129 589 01 21 00)
G12078799Courtesy of MERCEDES-BENZ USA
