Attach/Detach Engine Hoist - AR33.10-P-0105LF

Model 217 with engine 157, 276, 278, 279

Model 222 with engine 157, 276.8/9, 277, 278, 279

Shown on engine 278

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on engine 278

Shown on engine 277

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U > = 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
Topical note	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
	Install/remove

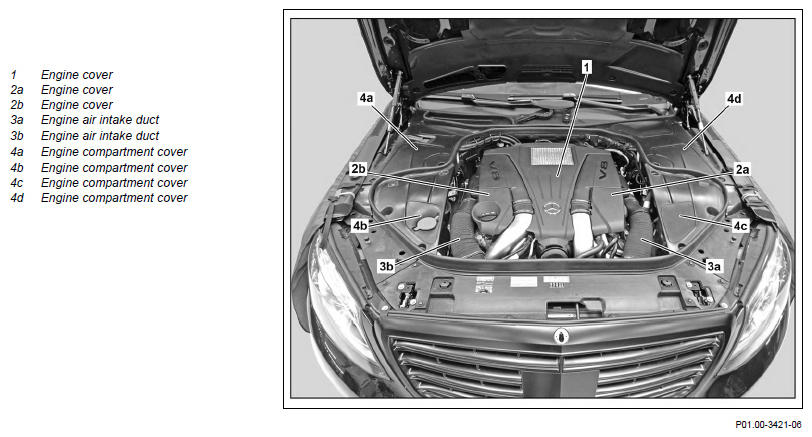

1.1	Remove upper engine covers (1, 2a, 2b)	Model 217 with engine 157, 278 Model 222 with engine 157, 278
1.2	Remove front engine cover	Model 217 with engine 279 Model 222 with engine 276.9, 277, 279
1.3	Remove upper engine cover	Model 217 with engine 276 Model 222 with engine 276.8/9
2	Remove engine air intake ducts (3a, 3b)
3	Remove engine compartment covers (4a, 4b, 4c, 4d)
4	Remove air filter housing	Model 217, 222 with engine 157, 278 Model 222 with engine 276.9
		Model 217, 222 with engine 157, 278	AR09.10-P-1150LFB
5	Remove coolant expansion reservoir and place to one side with lines attached		AR20.30-P-4950LF
6	Remove windshield washer system washer fluid reservoir and place with attached lines to one side
7	Remove hydraulic fluid reservoir (ABC) and place to one side with attached lines	Model 217 with engine 157, 278, 279 with code 487 (Active Body Control (ABC)) Model 222 with engine 157, 277, 278, 279 with code 487 (Active Body Control (ABC))
			AR32.50-P-0022LF
8	Unclip holder for electric lines on firewall and place to one side
9	Assemble engine hoist (2)	Observe the manufacturer's assembly specifications and safety information.

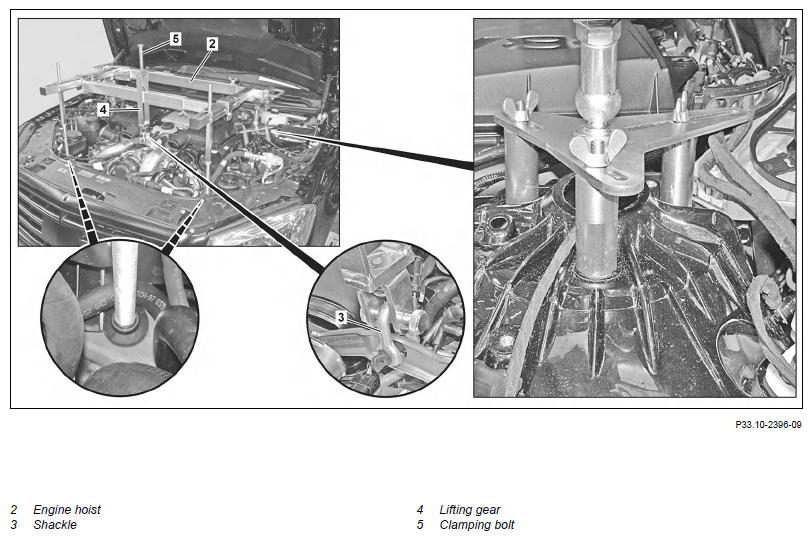

		Engine lifting device	Fig 2
10	Place assembled engine hoist (2) onto suspension strut tower and longitudinal member	Observe the manufacturer's assembly specifications and safety information.
11	Adjust engine hoist (2) and tighten bolted connections	Observe the manufacturer's assembly specifications and safety information.
12	Mount engine lifting lug onto front of engine	Model 217 with engine 157, 278 Model 222 with engine 157, 278
			AR33.10-P-0105-01SX
		Bolt, lifting eye to cylinder head	*BA01.30-P-1006-01X
		Lifting eye	Fig 1

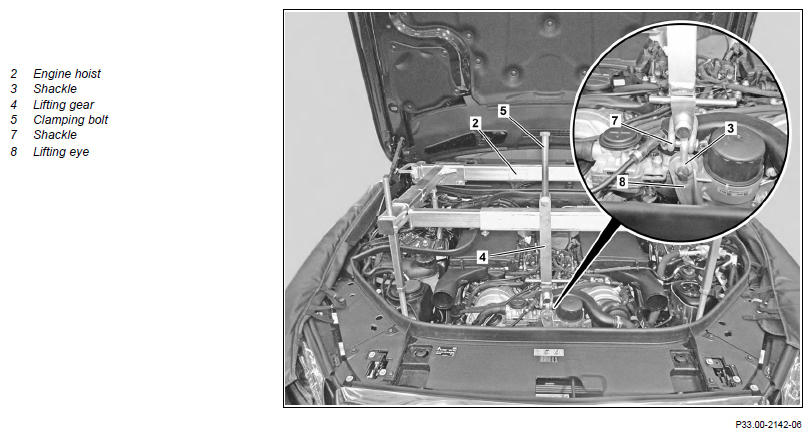

13	Attach shackle (7) to lifting gear (4)	Model 217 with engine 279 Model 222 with engine 277, 279
14.1	Attach shackle (3) to front engine lifting lug	Model 217 with engine 157, 276, 278 Model 222 with engine 157, 276.8/9, 278
14.2	Attach shackle (3) to shackle (7) and front lifting eye (8) to oil filter housing	Model 217 with engine 279 Model 222 with engine 277, 279
15	Tighten rigging screw (5) and tension hoist (4)
16	Remove in the reverse order
