Turning Rack-And-Pinion Steering To Center Position And Fitting Steering Coupling - AR46.20-P-0600-01RK
Model 217, 222, 231

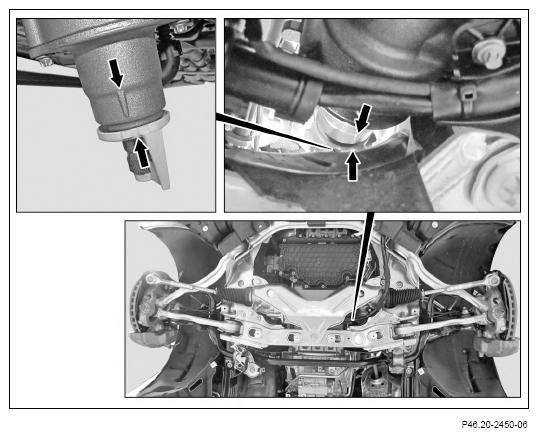

Shown on Model 231
Courtesy of MERCEDES-BENZ USA

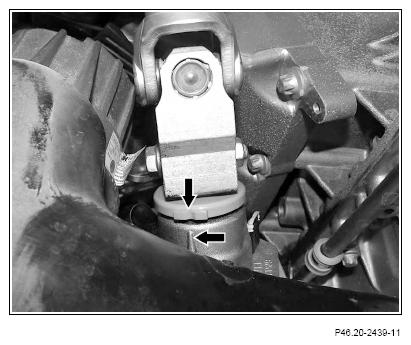

Shown on Model 222
Courtesy of MERCEDES-BENZ USA
Turn rack-and-pinion steering to center position.
Turn rack-and-pinion steering far enough for the marking on the input shaft's dust cap to line up with the marking on the control valve casing (arrows).
