Retrofit AMG Trim Parts - AZ88.00-P-0001LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3 (except 253.364/388/389) except code P31 (AMG Line exterior)
Model 253.9 (except 253.964/988/989) except code P31 (AMG Line exterior)

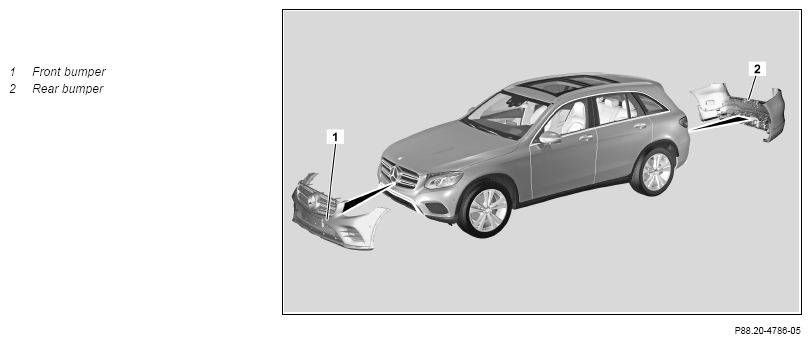

Shown on model 253.9
| Remove | |||
| 1 | Print and fill out form "Excerpt from EH type approval" | ||
| 2 | Lift vehicle | ||
| AR00.60-P-1002LWG | |||
| 3 | Disassemble front bumper (1) | ||
| AR88.20-P-2050LW | |||
Remove electronic parts with lines connected. Observe installation position. |
|||
| 4 | Remove rear bumper (2) | ||
| AR88.20-P-2200LWG | |||
| 5 | Disassemble rear bumper (2) | Remove electronic parts with lines connected. Observe installation position. |
|
| Install | |||
| 6 | Modification of front bumper (1) | AZ88.00-P-0001-02LWG | |
| 7 | Install front bumper (1) | ||
| AR88.20-P-2000LW | |||
| 8 | Modification of rear bumper (2) | Model 253.3 | AZ88.00-P-0001-03LWI |
| Model 253.9 |
AZ88.00-P-0001-03LWH | ||
| 9 | Install rear switch module sensor | ||
| Model 253.3/9 with code P17 (KEYLESS-GO package) | AR80.61-P-0012LW | ||
| 10 | Install rear bumper (2) | ||
| AR88.20-P-2200LWG | |||
| Update Vehicle Documentation (VeDoc) | |||
| 11 | Attach "AMG paneling parts retrofitted according to AZ88.00-P-0001LWG" note under field organization texts for design group KG 88 | ||
| Check | |||
| 12 | Check existing driving assistance systems and lighting for proper operation |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| A 253 885 30 00 | Bumper paneling | 1 |
| A 253 885 33 00 | Bumper paneling with code 235 (Active Parking Assist with PARKTRONIC) | 1 |
| A 253 885 10 01 | Bumper paneling with code 830 (Additional parts for China vehicles) | 1 |
| A 253 885 11 01 | Bumper paneling with code 235 (Active Parking Assist with PARKTRONIC) and code 830 (Additional parts for China vehicles) | 1 |
| A 253 885 15 00 | Center front basic bumper bracket | 1 |
| A 253 885 17 00 | Left front basic bumper bracket | 1 |
| A 253 885 18 00 | Right front basic bumper bracket | 1 |
| A 253 885 11 03 | Lower front basic bracket | 1 |
| A 253 885 23 00 | Lower front basic bracket with code 460 (Canada version) | 1 |
| A 253 885 35 00 | Cover, bumper lower left area | 1 |
| A 253 885 36 00 | Cover, bumper lower right area | 1 |
| A 253 885 77 00 | Wheel arch left lower bumper area cover | 1 |
| A 253 885 78 00 | Wheel arch right lower bumper area cover | 1 |
| A 253 885 79 00 | Left lower bumper paneling | 1 |
| A 253 885 80 00 | Right lower bumper paneling | 1 |
| A 253 885 81 00 | Left lower bumper paneling with code 494 (USA version) or code 460 (Canada version) | 1 |
| A 253 885 82 00 | Right lower bumper paneling with code 494 (USA version) or code 460 (Canada version) | 1 |
| A 253 885 16 00 | Impact absorber | 1 |
| A 253 885 21 00 | Impact absorber with code 494 (USA version) or code 460 (Canada version) | 1 |
| A 253 885 24 00 | Center front bumper area cover | 1 |
| A 253 885 25 00 | Center front bumper area cover with code 494 (USA version) or code 460 (Canada version) | 1 |
| A 253 885 31 00 | Left air duct segment | 1 |
| A 253 885 32 00 | Right air duct segment | 1 |
| A 253 885 71 00 | Left air duct segment with code 494 (USA version) or code 460 (Canada version) | 1 |
| A 253 885 72 00 | Right air duct segment with code 494 (USA version) or code 460 (Canada version) | 1 |
| A 253 885 26 00 | Center lower front trim | 1 |
| A 253 885 27 00 | Left lower front trim | 1 |
| A 253 885 28 00 | Right lower front trim | 1 |
| A 253 885 29 00 | Center lower front trim with code 494 (USA version) or code 460 (Canada version) | 1 |
| A 253 885 45 00 | Center lower front trim with code 494 (USA version) or code 460 (Canada version) and code P55 (Night Package) | 1 |
| A 253 885 59 00 | Left outer lower front trim | 1 |
| A 253 885 61 00 | Left inner lower front trim | 1 |
| A 253 885 62 00 | Right inner lower front trim | 1 |
| A 253 885 60 00 | Right outer lower front trim | 1 |
| A 253 885 63 00 | Left outer lower front trim | 1 |
| A 253 885 67 00 | Left inner lower front trim | 1 |
| A 253 885 68 00 | Right inner lower front trim | 1 |
| A 253 885 64 00 | Right outer lower front trim | 1 |
| A 253 880 21 00 | ECE license plate molding (order according to national version) | 1 |
| A 253 885 38 00 | USA license plate molding (order according to national version) | 1 |
| A 253 880 39 00 | License plate molding Italy (order according to national version) | 1 |
| A 253 880 40 00 | License plate molding Switzerland (order according to national version) | 1 |
| A 253 880 41 00 | China license plate molding (order according to national version) | 1 |
| A 253 880 23 00 | License plate molding Japan (order according to national version) | 1 |
| A 004 990 07 97 | Blind rivet | 18 |
| A 253 888 13 00 | Left upper trim grille | 1 |
| A 253 888 14 00 | Right upper trim grille | 1 |
| A 253 888 15 00 | Left lower trim grille | 1 |
| A 253 888 17 00 | Left lower trim grille with code 501 (360° camera) | 1 |
| A 253 888 16 00 | Right lower trim grille | 1 |
| A 253 888 18 00 | Right lower trim grille with code 501 (360° camera) | 1 |
| A 253 885 02 00 | Upper rear bumper paneling | 1 |
| A 253 885 12 01 | Upper rear bumper paneling with code 235 (Active Parking Assist with PARKTRONIC) | 1 |
| A 253 885 15 01 | Upper rear bumper paneling with code 234 (Blind Spot Assist) | 1 |
| A 253 885 16 01 | Upper rear bumper paneling with code 234 (Blind Spot Assist) with code 235 (Active Parking Assist with PARKTRONIC) | 1 |
| A 253 885 17 01 | Hybrid upper rear bumper paneling | 1 |
| A 253 885 18 01 | Hybrid upper rear bumper paneling with code 235 (Active Parking Assist with PARKTRONIC) | 1 |
| A 253 885 19 01 | Hybrid upper rear bumper paneling with code 234 (Blind Spot Assist) | 1 |
| A 253 885 20 01 | Hybrid upper rear bumper paneling with code 234 (Blind Spot Assist) with code 235 (Active Parking Assist with PARKTRONIC) | 1 |
| A 253 885 03 00 | Lower rear bumper paneling with code 235 (Active Parking Assist with PARKTRONIC) | 1 |
| A 253 885 05 00 | Lower rear bumper paneling with code 235 (Active Parking Assist with PARKTRONIC) and code 550 (Trailer hitch) | 1 |
| A 253 885 07 00 | Rear towing eye cover | 1 |
| A 253 885 87 00 | Left center lower rear bracket | 1 |
| A 253 885 88 00 | Right center lower rear bracket | 1 |
| A 253 885 23 01 | Wheel arch left bumper bracket | 1 |
| A 253 885 24 01 | Wheel arch right bumper bracket | 1 |
| A 253 885 21 01 | Rear switch module bumper bracket | 1 |
| A 253 885 88 01 | Rear switch module bumper bracket with code 550 (Trailer hitch) | 1 |
| A 253 885 25 01 | Tailpipe trim left bumper bracket | 1 |
| A 253 885 26 01 | Tailpipe trim right bumper bracket | 1 |
| A 205 490 03 00 | Exhaust tip left | 1 |
| A 205 490 04 00 | Exhaust tip right | 1 |
| A 205 490 11 27 | Left tailpipe trim with code 830 (Additional parts for China vehicles) | 1 |
| A 205 490 12 27 | Right tailpipe trim with code 830 (Additional parts for China vehicles) | 1 |
| A 253 885 41 00 | Left bracket | 1 |
| A 253 885 42 00 | Right bracket | 1 |
| A 205 885 22 21 | Left trim strip | 1 |
| A 205 885 23 21 | Right trim strip | 1 |
| A 253 885 10 00 | Underride guard center bumper area cover | 1 |
| A 253 885 09 00 | Underride guard center bumper area cover with code P55 (Night Package) | 1 |
| A 253 885 84 00 | Lower rear bumper area paneling | 1 |
| A 253 885 95 00 | Lower rear bumper area paneling with code 235 (Active Parking Assist with PARKTRONIC) | 1 |
| A 253 885 95 00 | Lower rear bumper area paneling with code 550 (Trailer hitch) | 1 |
| A 253 885 95 00 | Lower rear bumper area paneling with code 235 (Active Parking Assist with PARKTRONIC) and code 550 (Trailer hitch) | 1 |
| A 253 885 08 00 | Rear towing eye cover | 1 |
| A 253 885 71 01 | Left bumper bracket | 1 |
| A 253 885 72 01 | Right bumper bracket | 1 |
| A 253 885 73 01 | Left center bumper bracket | 1 |
| A 253 885 74 01 | Right center bumper bracket | 1 |
| A 253 885 14 00 | Impact absorber | 1 |
